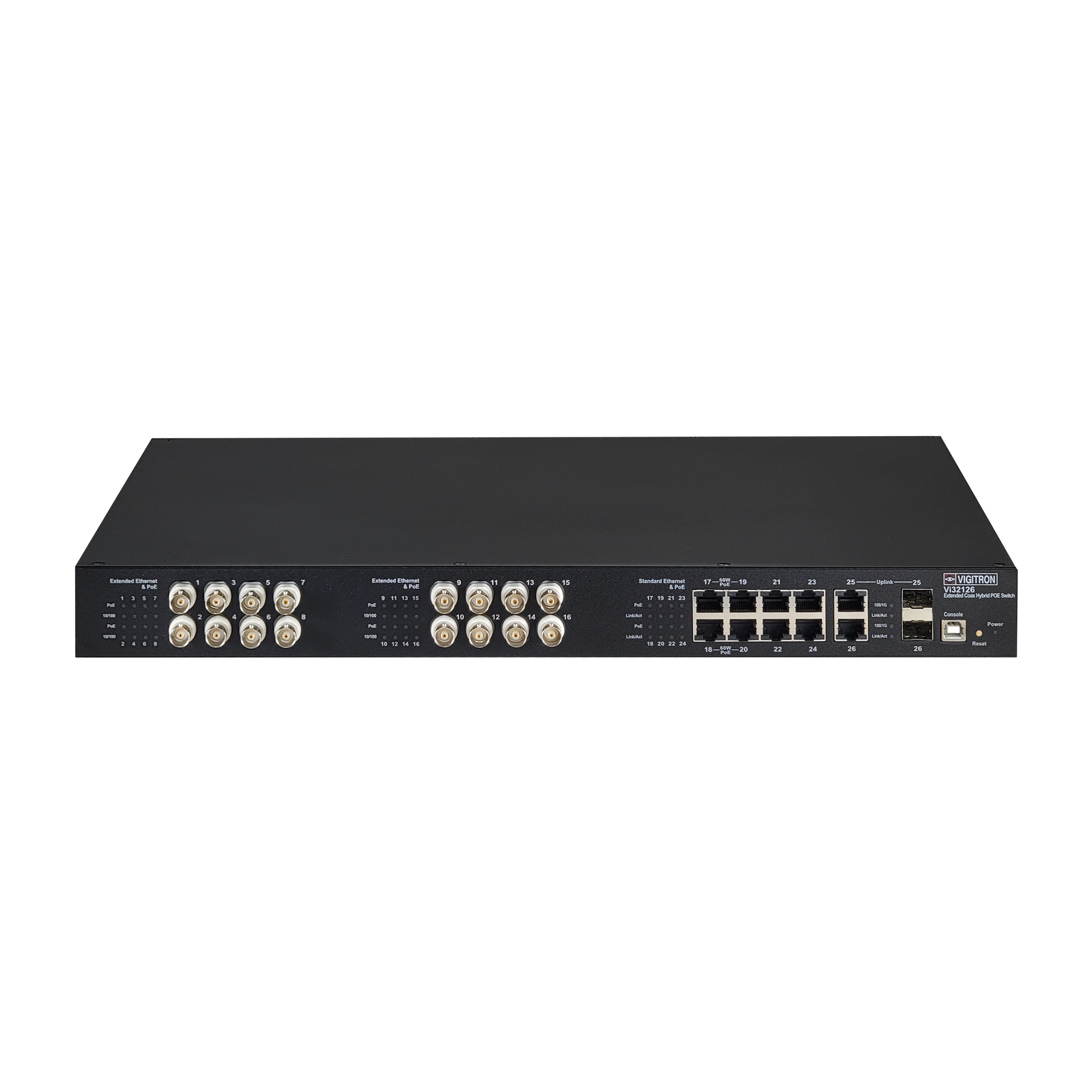

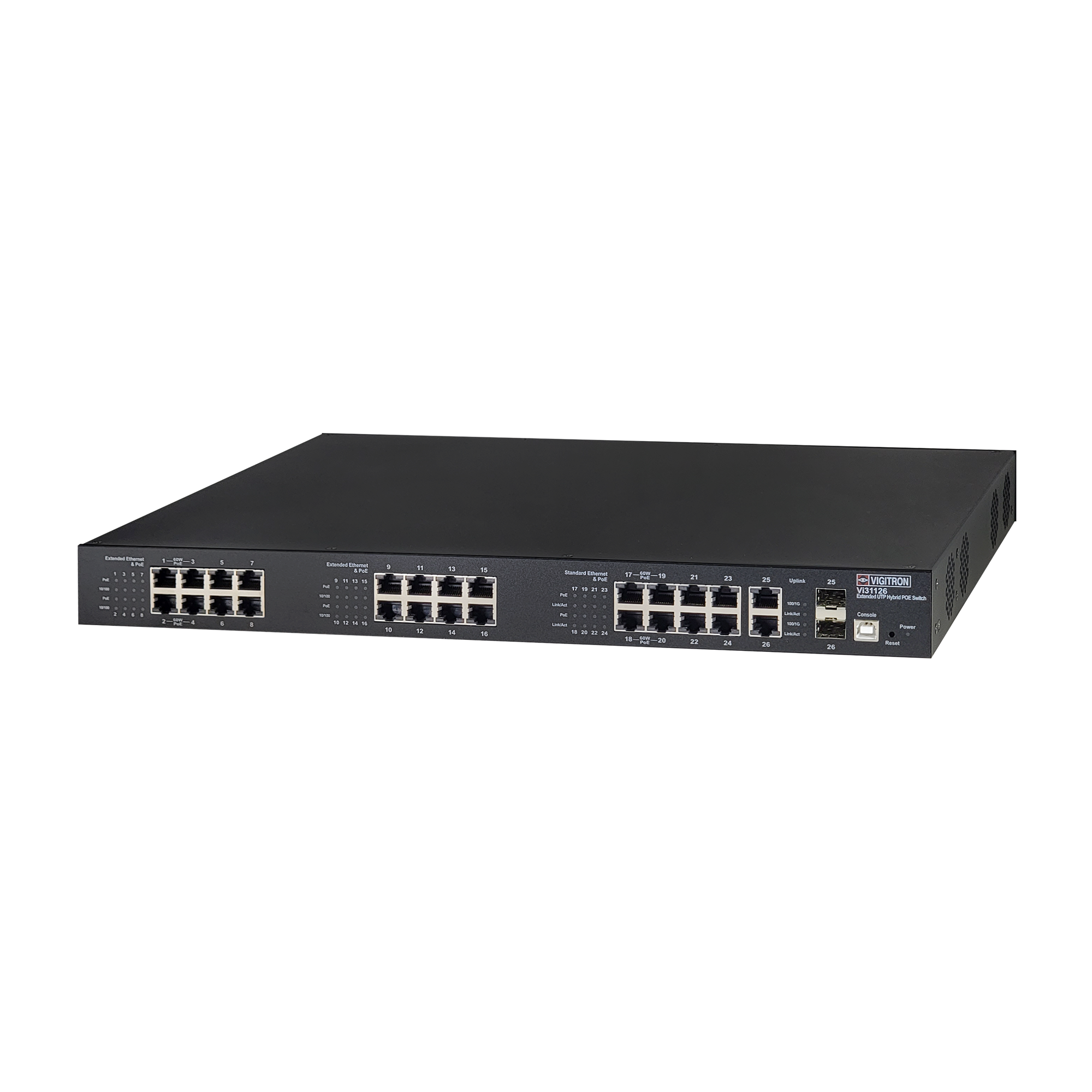

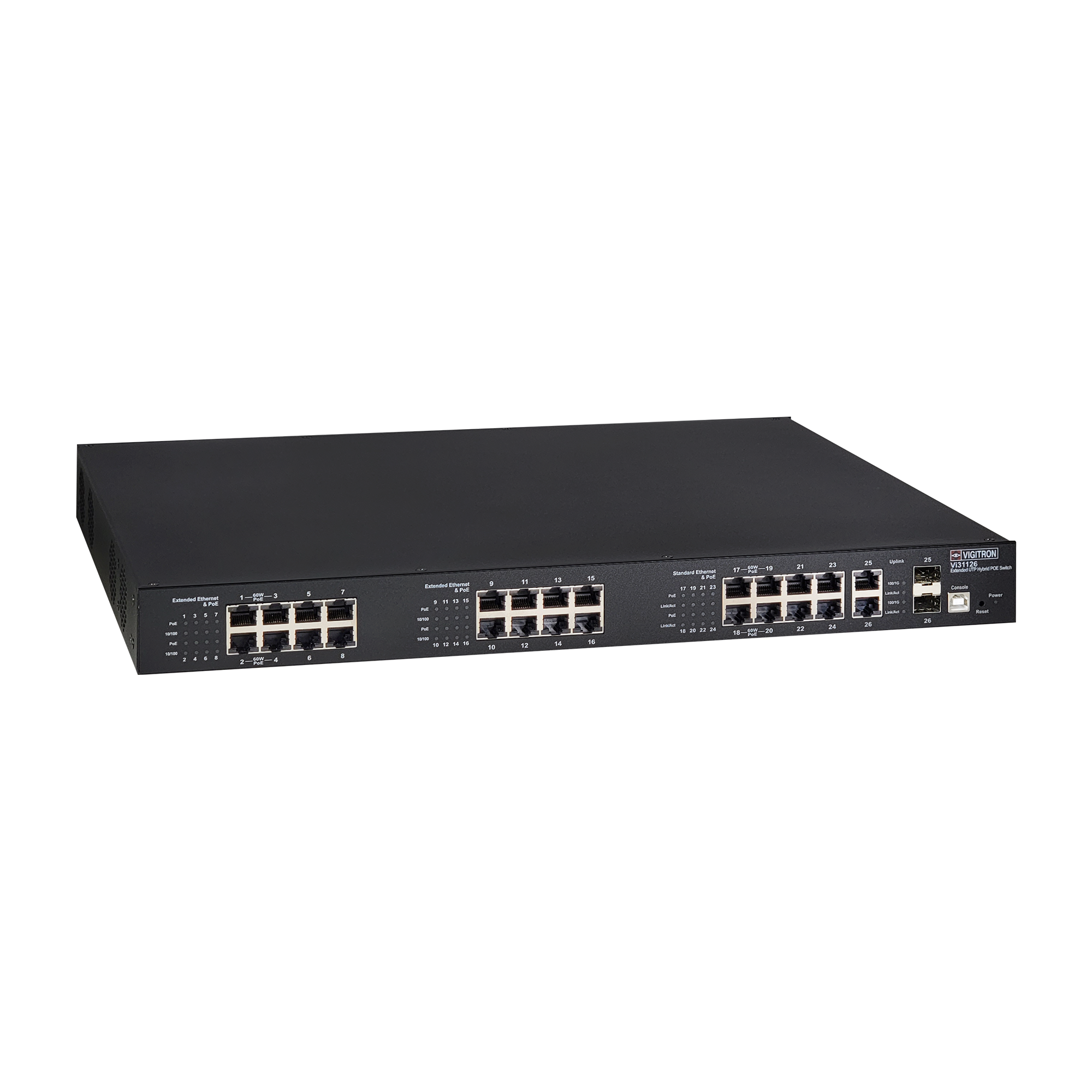

Vigitron’s Vi31126 is the next-generation L2 managed switch designed for PoE+ and high bandwidth network applications, providing a reliable infrastructure for your business network. Eight extended UTP ports provide solutions that require both extended distance and standard distance applications in one convenient cost-effective space-saving package. The Vi31126 provides solutions for applications up to distances of 3,000 feet (909m) with centralized maximum bandwidth utilization increasing system performance and reliability. The Vi31126 delivers intelligent features needed to provide unmatched reliability to critical business applications with unique PoE monitoring and application features. The Vi31126 enables individual port programming to apply PoE individually to each port in order to lower the potential for power overload resulting in potential damage to the switch and connected devices.

Features:

• High Power PoE Budget: Total 685W power supply with 550W PoE budget providing 24-ports at IEEE 802.3at, 4-ports at up to 72W PoE.
• Individual PoE port power up to 72W for powering PTZ domes with heaters and blowers and required power to handle surges from auxiliary functions such as day/night, avoiding port PoE shut down
• Transient Protect determines the difference between the need for additional PoE power and potential damaging short circuits providing extra power when required or shutting down port PoE to protect connected devices
• The 9Gbps switch fabric assures all required bandwidth, even with all ports at their maximum bandwidth to keep video and data quality
• Automatic connection, re-connection, and port monitoring with PoE for more reliable start-ups and reducing down time potentials
• Programmable multicasting for compatibility and performance with largest IP video network systems
• Programmable Rapid Spanning Tree for redundant network configuration assuring maintenance of network communication using multiple paths
• Automatic MAC address detection for connected devices for easy connection verification and security programming
• Programmable and auto-detect MAC address binding limiting access for potential hacking
• Layer 2 network switch compliance
• Web filtering and MAC address binding provide two-stage protection against hacking
• SecurPortTM provides complete protection against ghosting when attempts are made to connect unauthorized devices by copying device MAC and IP addresses
• Provides 24 ports with high power PoE up to 36W/72W on each port
• Transmits data/video and PoE up to distances of 3,000 ft. (909m)
• 16 extended UTP ports, 8 ports standard UTP, and 2 uplink ports
• 24 ports at 10/100Mbps, 2 shared fiber/copper Uplink ports @ 1000Mbps
• Two 1000Mbps independent Uplink ports allow for full use of all 24 ports
• SNMP for communicating error messaging to local computers
• Automatic IP and PoE connection and reconnection
• Automatic programmable MAC identification for all connected devices
• Individual port MAC detection and binding for port security
• 685W total power supply, 550W PoE budget
• Programmable Web Access Filtering (WAF) to prevent unauthorized access
• Transient ProtectTM intelligent PoE sensing to prevent damage from short
• Individual port and main power supply over-current, over-voltage, over-temperature, and over-current protection with automatic recovery
• Provides 9G bytes fabric switching rate for handling largest megapixels IP cameras
• SecurPortTM provides individual port and complete switch protection against hacking and ghosting
