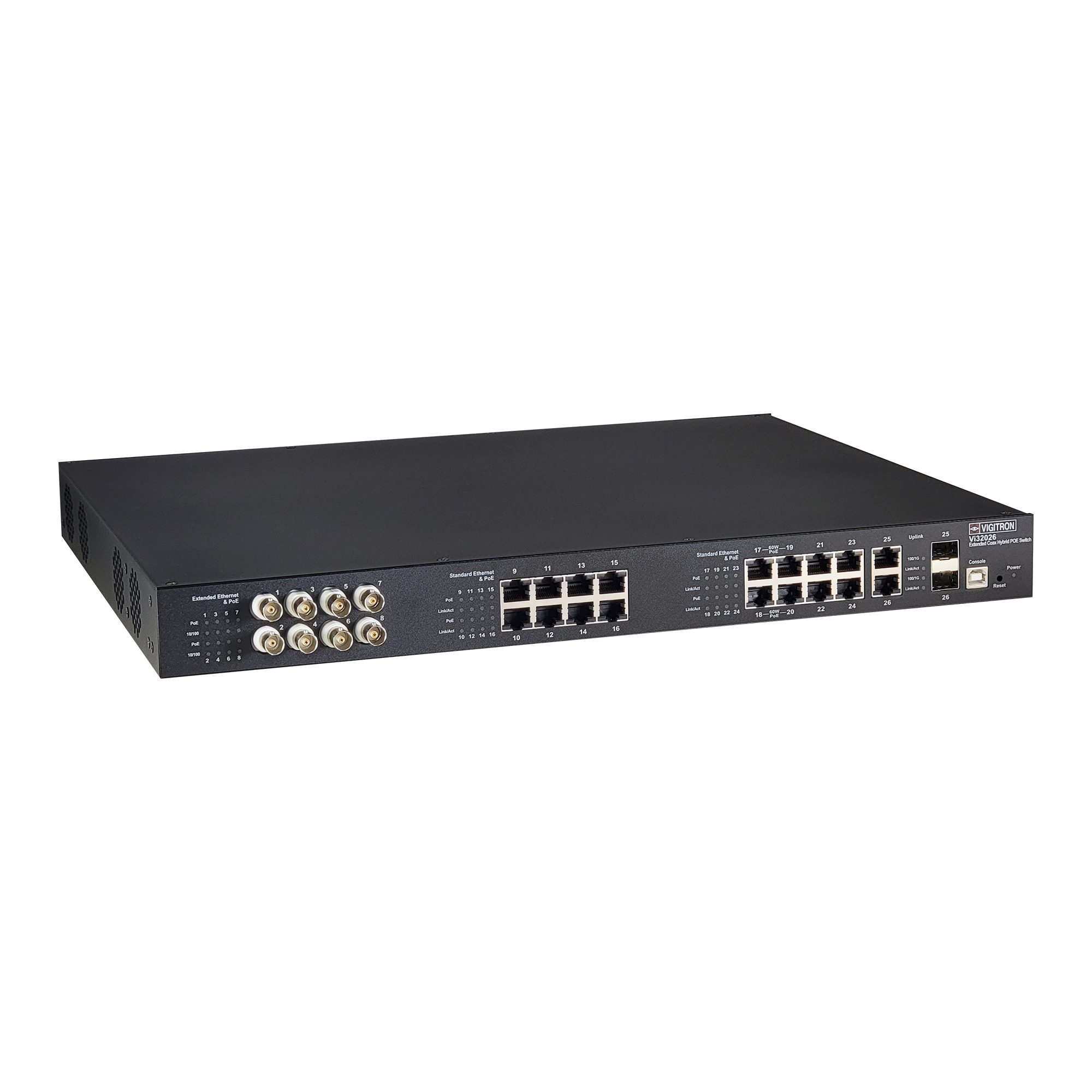

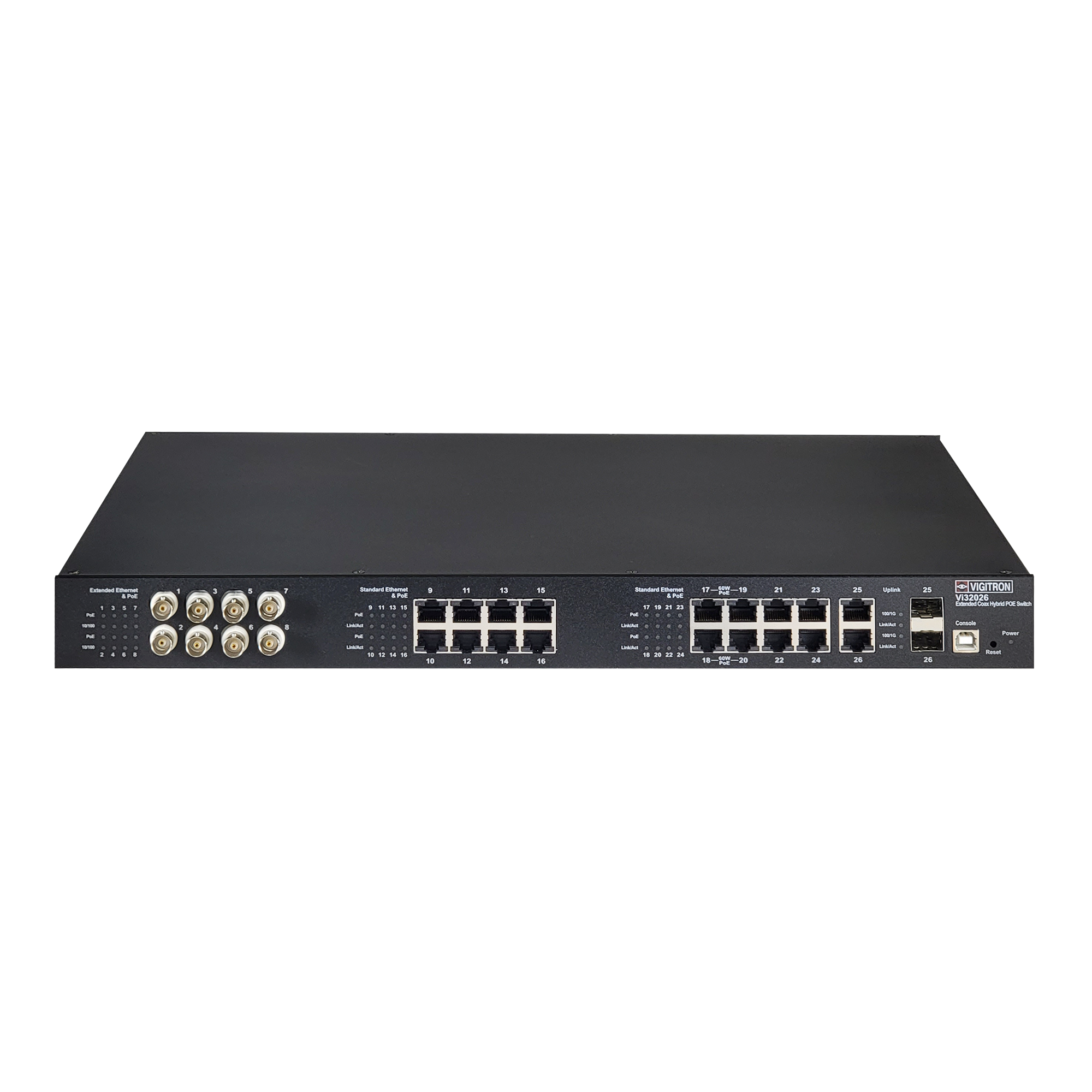

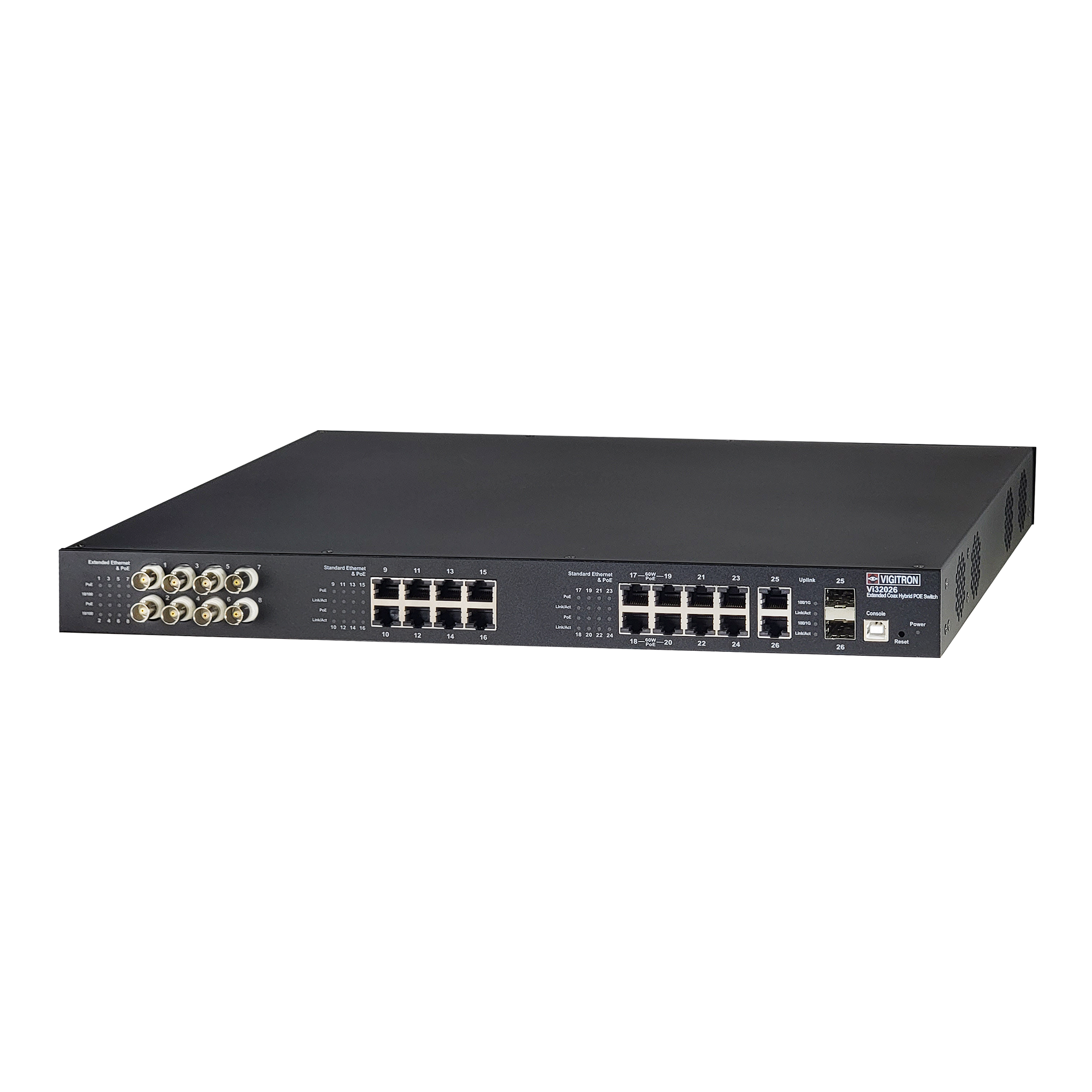

Vigitron’s Vi32026 is the next-generation L2 managed switch designed for PoE+ and high bandwidth network applications, providing a reliable infrastructure for your business network. Eight extended Coax ports provide solutions that require both extended distance and standard distance applications in one convenient cost-effective space-saving package. The Vi32026 can provide solutions for applications up to distances of 2,000 feet (609m) providing central control maximum bandwidth utilization increasing system performance and reliability.

The Vi32026 delivers intelligent features that are needed to provide unmatched reliability to critical business applications with unique PoE monitoring and application features. The Vi32026 enables individual port programming to apply PoE individually timed to each port in order to lower the potential for power overload resulting in potential damage to the switch and connected devices.

Features:

• High Power PoE Budget: Total 685W power supply with 550W PoE budget providing IEEE 802.3at PoE on all 24-ports and 72W UPoE on four standard UTP ports 30W (802.3at) with 15 ports at 36W and 72W, UPoE, on four standard UTP ports
• With programmable PoE power up to 36W for extended coax ports and up to 65W up to standard ports, additional power is provided to handle camera surges and high powered PTZ domes with heaters and blowers
• Transient Protect determines the difference between the need for additional PoE power and potential damaging shorts providing extra power when required or shutting down port PoE to protect connected devices
• The 9Gbps switch fabric assures all required bandwidth, even with all ports at their maximum bandwidth to keep video and data quality
• Automatic connection, re-connection, and port monitoring with PoE application for more reliable start-ups and reducing down time potentials
• Programmable multicasting for compatibility and performance with largest IP video network systems
• Programmable Rapid Spanning Tree for redundant network configuration assuring maintenance of network communication using multiple paths
• Automatic MAC address detection for connected devices for easy connection verification and security programming
• Programmable and auto-detect MAC address binding limiting access for potential hacking
• Layer 2 network switch compliance SecurPortTM provides complete protection against ghosting when attempts are made to connect unauthorized devices by copying device MAC and IP addresses
• Perfect and cost-effective solution for converting existing analog systems to IP or adding UTP IP camera cable runs to existing analog systems
• 8 Coax ports/16 ports standard UTP and 2 uplink ports
• 36W on all ports; 72W UPoE on 4 standard UTP ports
• Transmit Data/Video and PoE up to distances of 2,000 feet (609m)
• 24 ports at 10/100Mbps, 2 shared fiber/copper Uplink ports @ 1000Mbps
• Two 1000Mbps independent Uplink ports allow for full use of all 24 ports
• SNMP for communicating error messaging to local computers
• Automatic IP and PoE connection and reconnection
• Automatic programmable MAC identification for all connected devices
• Individual port MAC detection and binding for port security
• 550W PoE budget, 685W total power supply,
• Programmable Web Access Filtering (WAF) to prevent unauthorized access
• Transient ProtectTM intelligent PoE sensing to prevent damage from short
• Intelligent Power Limit - automatically determines actual PoE power requirements
• Individual port and main power supply over-current, over-voltage, over-temperature and short protection with automatic recovery
• Provides 9G bytes fabric switching rate for handling largest megapixels IP cameras
• SecurPortTM provides individual port and complete switch protection against hacking and ghosting
