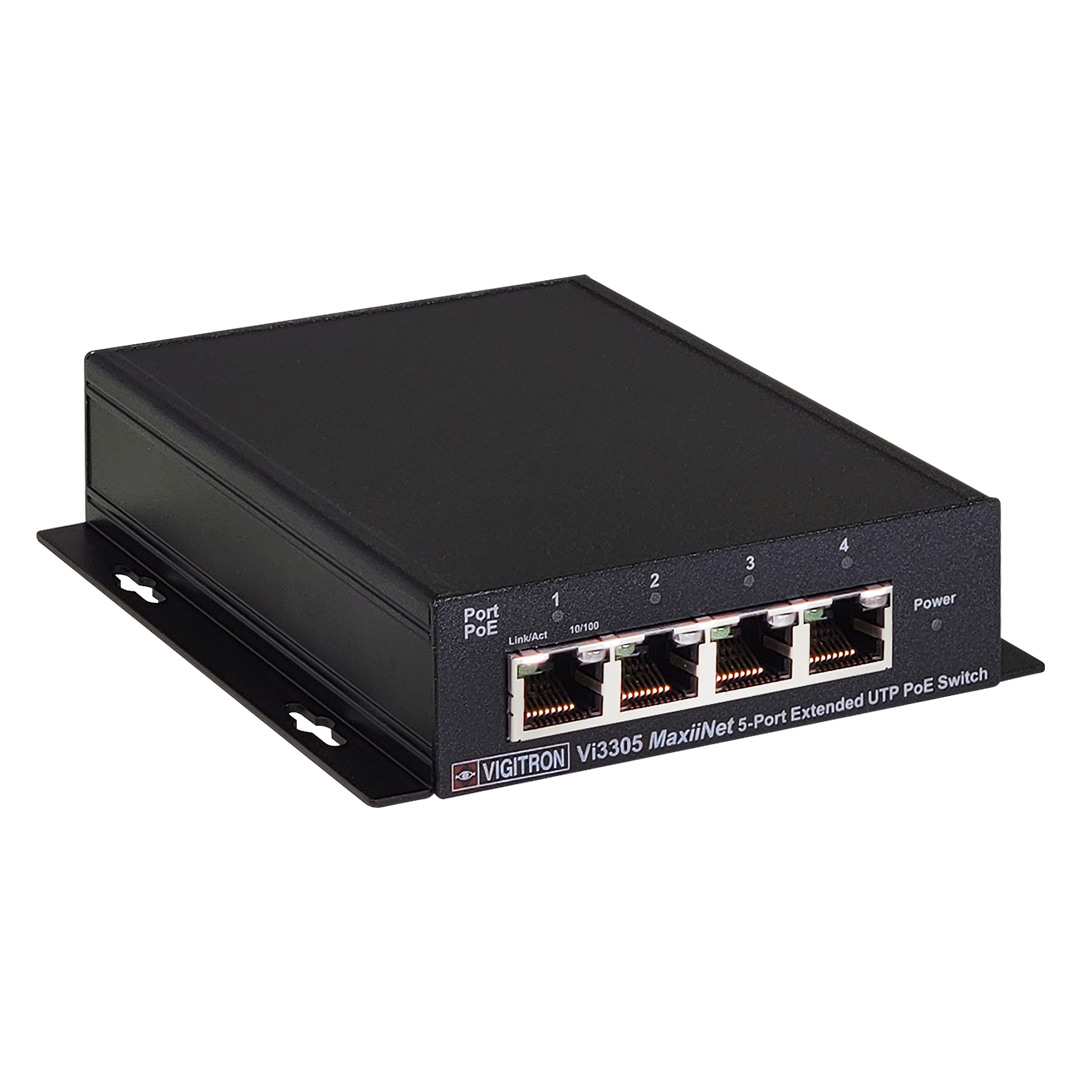

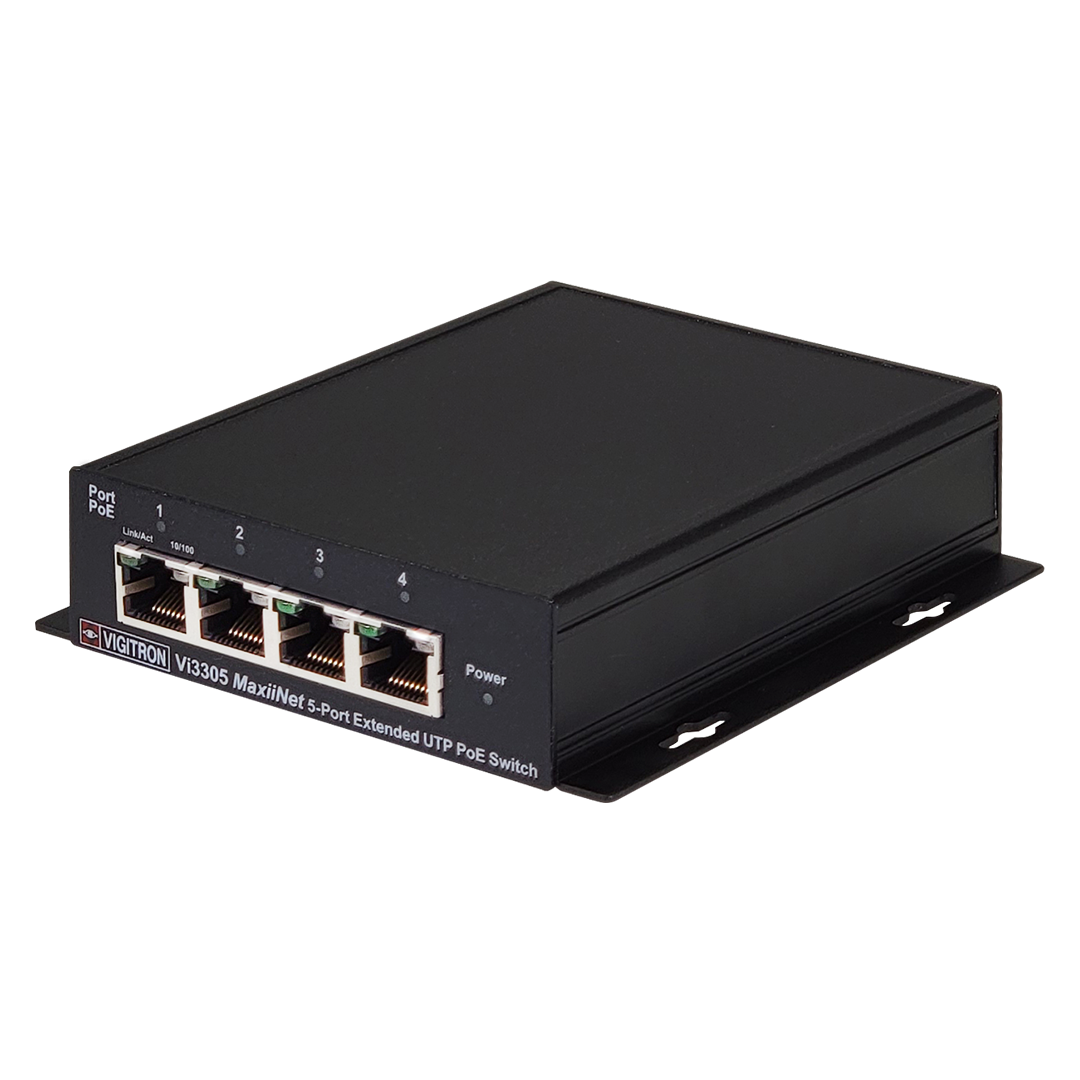

Vigitron's MaxiiNet Vi3305 fixed managed five port extended UTP PoE switch brings new performance standards to the growing need for transmission of high-speed Ethernet. It eliminates the need for local power for the cameras connected to its 4 ports at extended distances. The Vi3305 provides a 10/100Base-T and an SFP socket for fiber optic uplink.
The Vi3305 is powered locally by the Vi1120 to provide IEEE 802.3at PoE up to 36W to each port or up to 72W for two combined ports compensating for surge conditions and requirements for high-powered PoE PTZ domes. The Vi3305 can operate over UTP at extended distances up to 3,000 feet (909m) when combined with the Vi2301A or Vi2300A. With an operating temperature range of -30°C to 75°C, the Vi3305 is the perfect solution for data and power transmission for warehouses, parking lots, campuses, casinos, and many more. The Vi3305 is MegaPixel Certified (MPC), the type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error-free, quality operations. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric. Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron's MaxiiNet Vi3305 an ideal solution for standard distance data and power transmission.
Features:
- 5-port Layer 2 extended distance UTP PoE switch
- 4 extended UTP ports with PoE and IP video at distances up to 3,000 ft. (909m)
- Provides PoE power to the remote camera at extended distances when used with Vi2301A or Vi2300A and eliminates the need for local power source or power supplies
- Provides up to 36W PoE per port, capable of combing each 2-ports for up to 72W
- Provides MSA compliant SFP fiber output port for integration to existing fiber infrastructures and extreme long-distance up to 80Km
- Certified (MPC) high data rate for virtual loss-free transmission of cameras
- Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
- Type tested for -30°C to +75°C operating temperature range
- Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
- Provides full Layer 2 network switch functionality
| Electrical | |
| Ethernet Interface | Standard 10/100BaseT |
| UTP | 100 Ohm +/- 20%, up to 328 ft. (100m) |
| Power Source | External Power Supply: 57VDC @ up to 120W |

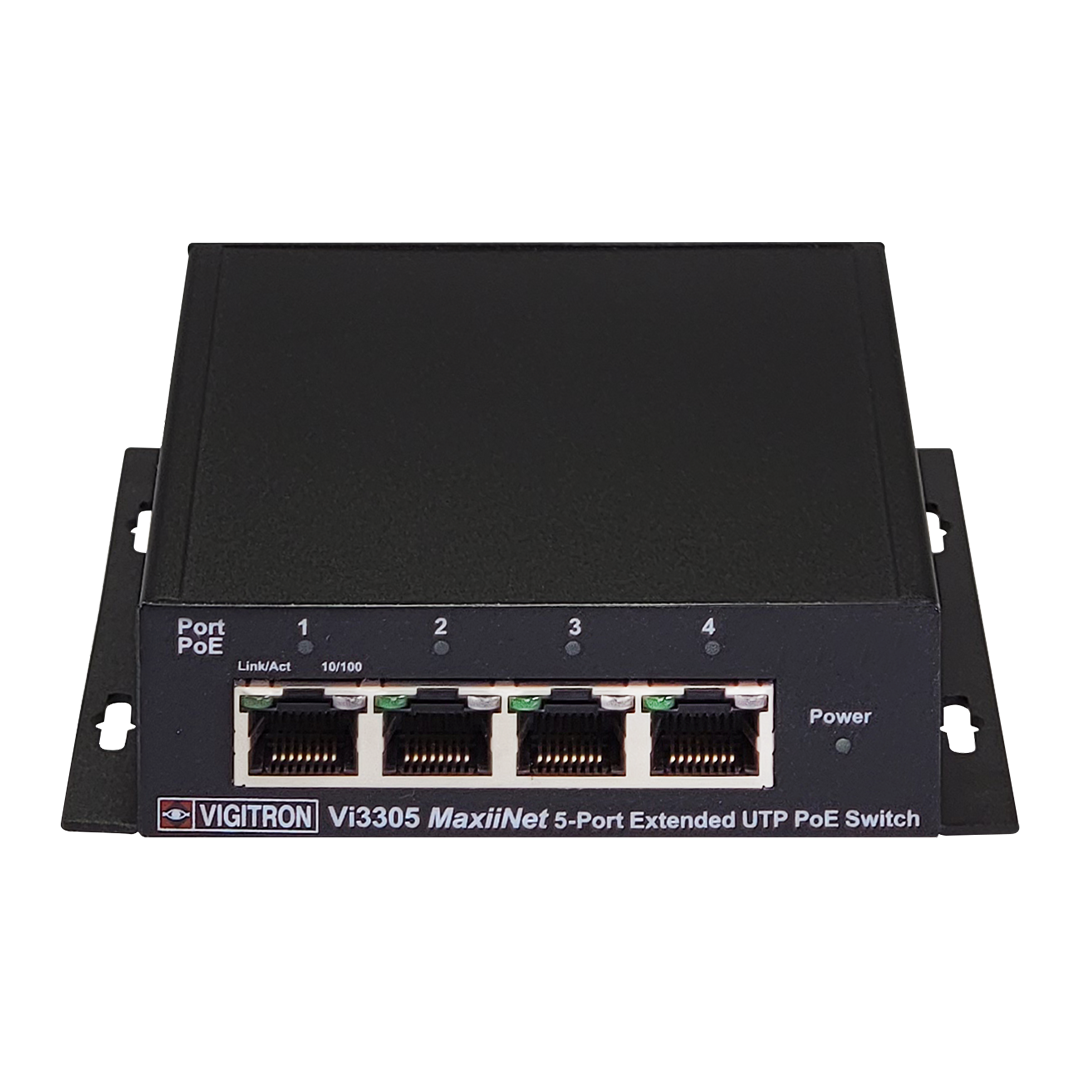

| Status LEDs | Power: Power On Ethernet: Traffic, Link PoE: PoE present Extended Uplink: 10/100 Link, Traffic |

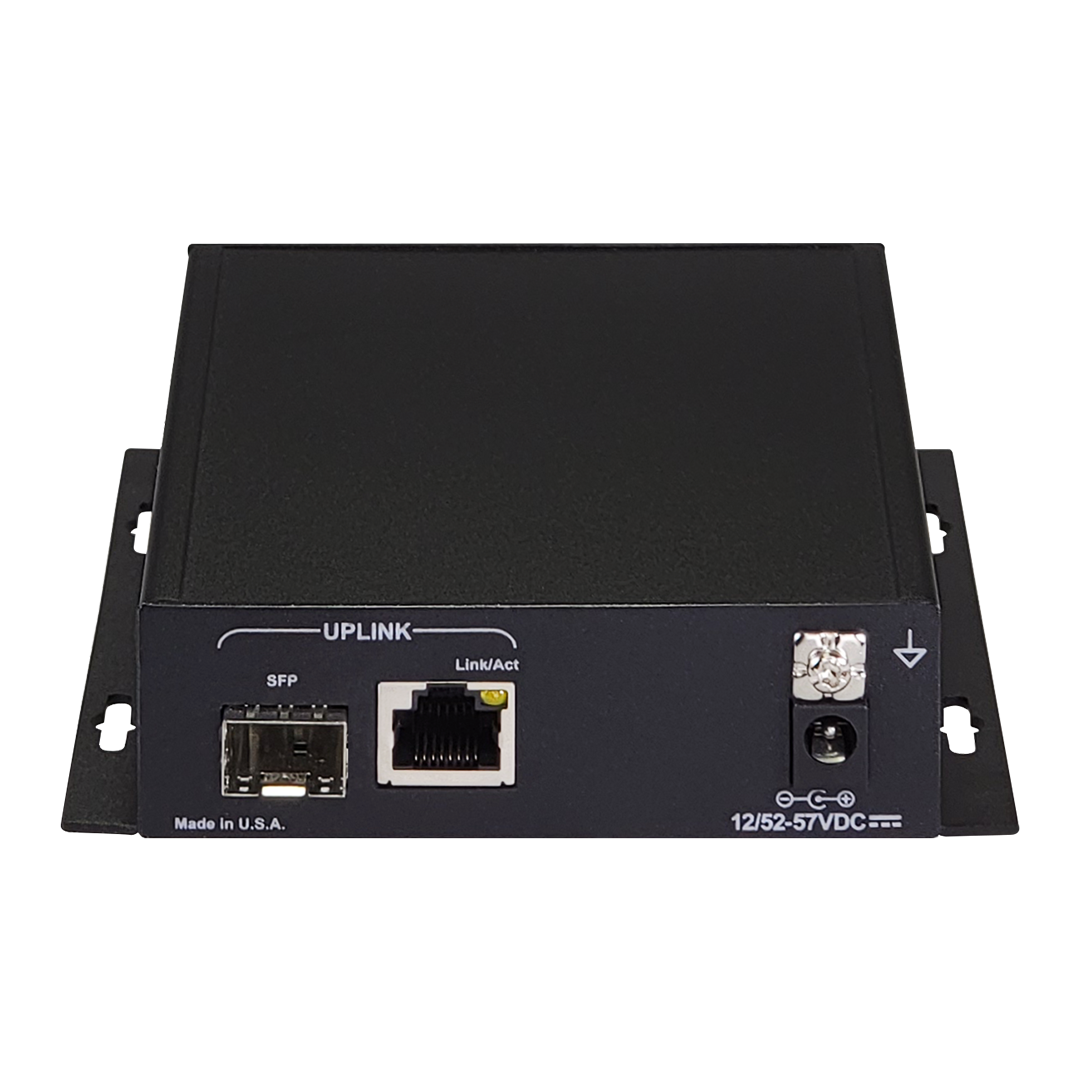

| Connectors | Fiber: MSA compliant SFP socket Ethernet Interface: 1 x RJ45 Ethernet Extended Interface: 4 X RJ45 Power: Circular power connector |
| RFC | 2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| PoE Compatibility | IEEE 802.3af, IEEE 802.3at,74W High power PoE |
| Data Interfaces & Compliances | RFC 768 UDP, RFC 2068 HTTP RFC 793 TCP, RFC 791 IP RFC 1783 TFTP, RFC 894 IP over Ethernet RFC 2544 TCP/IP Packet Transmission IEEE802.3af, 8IEEE02.3at |
| IEEE Compliances | 802.3ab, 802.3z, 802.3af, 802.3at, 802.1p, 802.1Q, 802.1D, 802.1s, 802.3u, 802.3x, 802.3w |
| Service Compliance | IPv4 Type of Service (TOS) & Differentiated Services (Diff-Serv) IPv6 Traffic Class |
| Regulatory | |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emissions | EN5502:2006+A1:2007 EN 61000-3-2:2006+A1:2009+A2:2009 EN 55024: 1998+A1:2001+A2:2003 |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -30°C to +75°C Storage: -40°C to +85°C |
| Mechanical | |
| Dimensions | 1.2x3.75x5.1 in., 3.0x9.5x13 cm (HxWxL) |
| Weight | 0.76 lb (344 g) |
| Housing | Aluminum |
