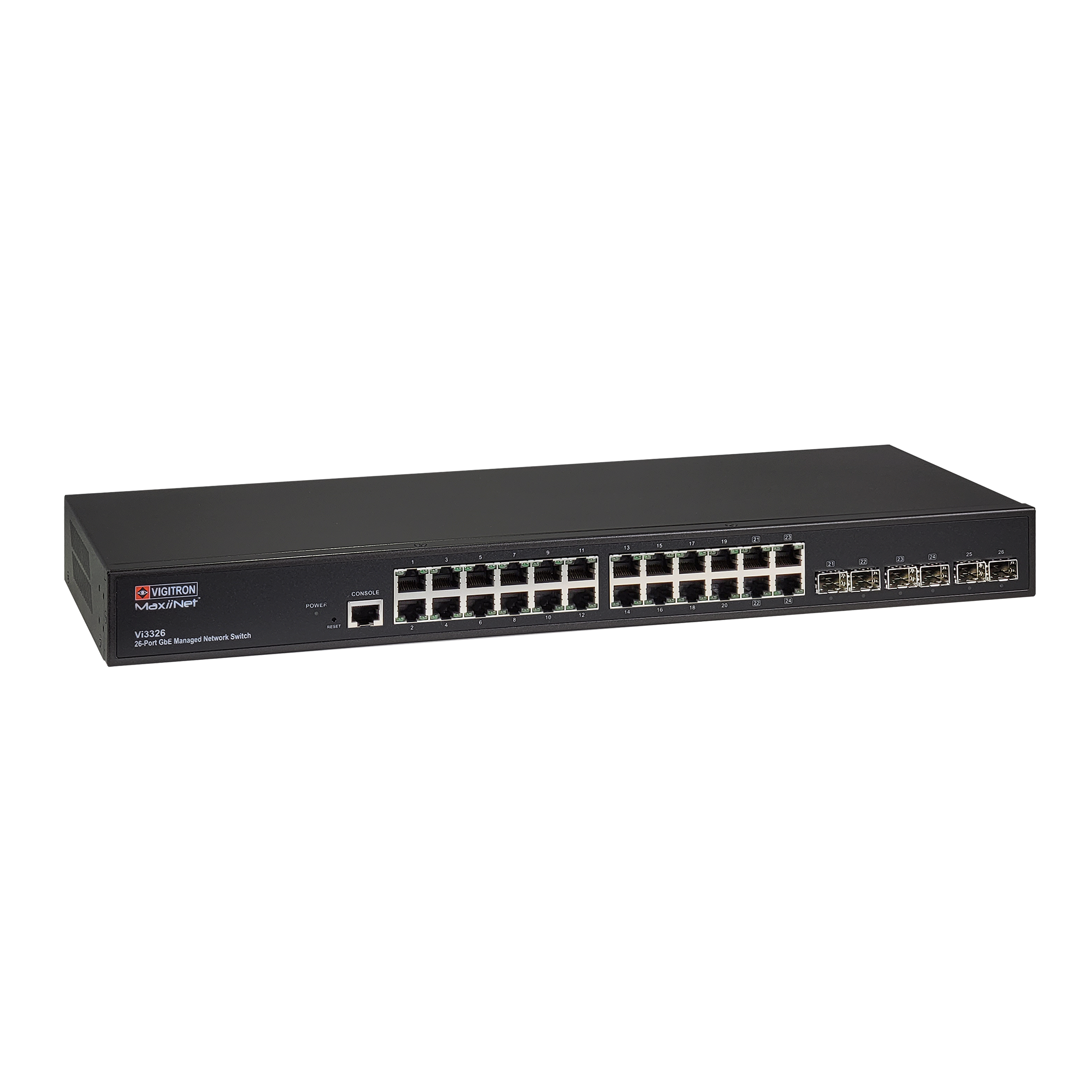

The Vi3326 is the next-generation L2+ managed switch designed for high bandwidth network applications. It provides a reliable infrastructure for your business network. The Vi3326 delivers unique intelligent features that are needed to improve the availability of your critical business applications. It can easily support any Ethernet device such as IP Phones, IP Cameras, and Wireless base stations; thus helping you to create a more efficient, better-networked workforce. Full CLI documentation is provided for custom integration. Vigitron Vi3326 is designed to meet the growing bandwidth requirements for IP security cameras by providing both reliability and conductivity with the ability to locate and determine network system problems.

Features:

• Programmable Video/Data packet transmission up to the Jumbo Frame limit of 9600 bytes for transmitting the highest megapixel cameras at 100Mbps and 1Gps port speeds.
• Wide 52Gbps switch fabric assuring all required bandwidth, even with all ports at their maximum bandwidth assuring video and data quality.
• Automatic connection and re-connection for more reliable startups reducing downtime potentials.
• Programmable multicasting for compatibility and performance with the largest IP video network systems.
• Programmable Rapid Spanning Tree for redundant network configuration assuring maintenance of network communication using multiple paths.
• Virtual Stacking features eliminate the need for all switches to be at the same location while providing access to all switches anywhere on the network using one IP address.
• Automatic MAC address detection for connected devices for easy connection verification and security programming.
• The easy port feature provides one-step port settings for IP camera, VoIP, and wireless connections.
• Provides 26 Gb Ethernet ports with 24 plus 6 SFP ports
• Two 1Gbps independent uplink and downlink ports allow for full use of all 24-ports
• SNMP for communicating error messaging to local computers
• Automatic IP connection and reconnection
• Automatic MAC identification for all connected devices
• Individual IP Source Guard for protecting ports
• Supports Jumbo Frames up to 9600 bytes
• High Bandwidth 52Gbyte switching fabric
• Virtual Network Switch Stacking
• Cost-effective backbone solution for high megapixel IP camera security systems
