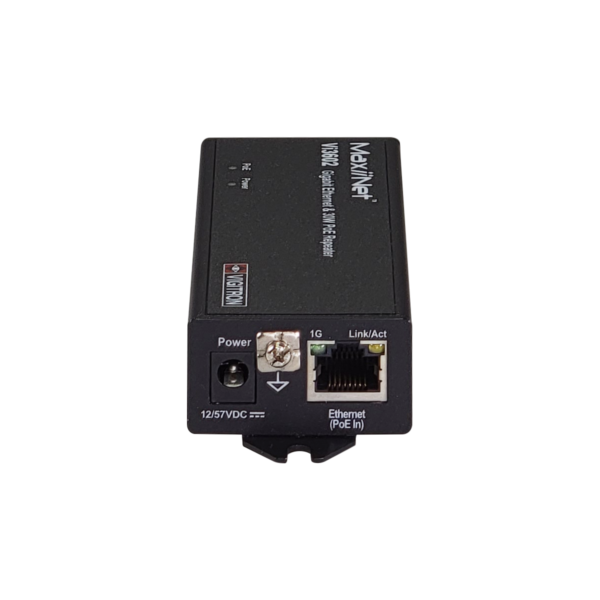

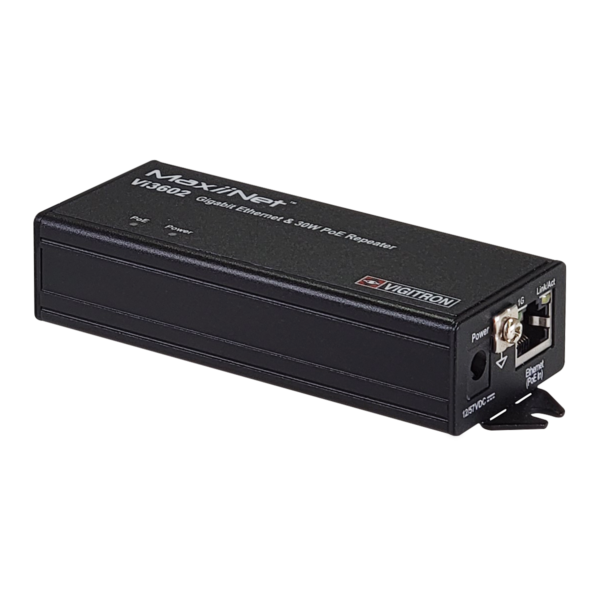

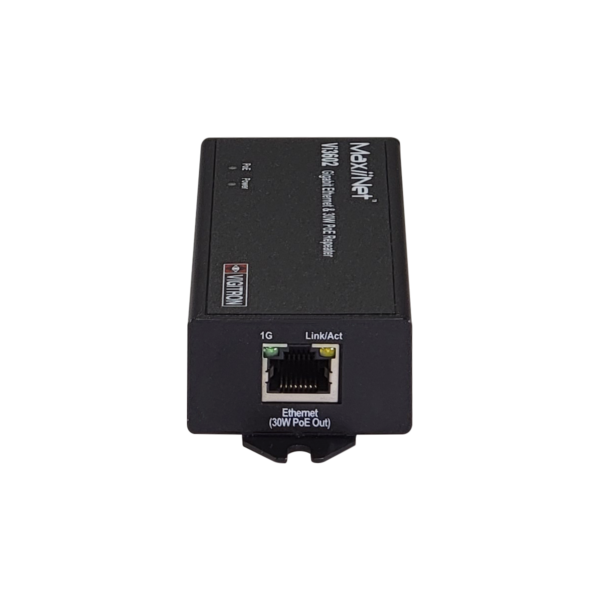

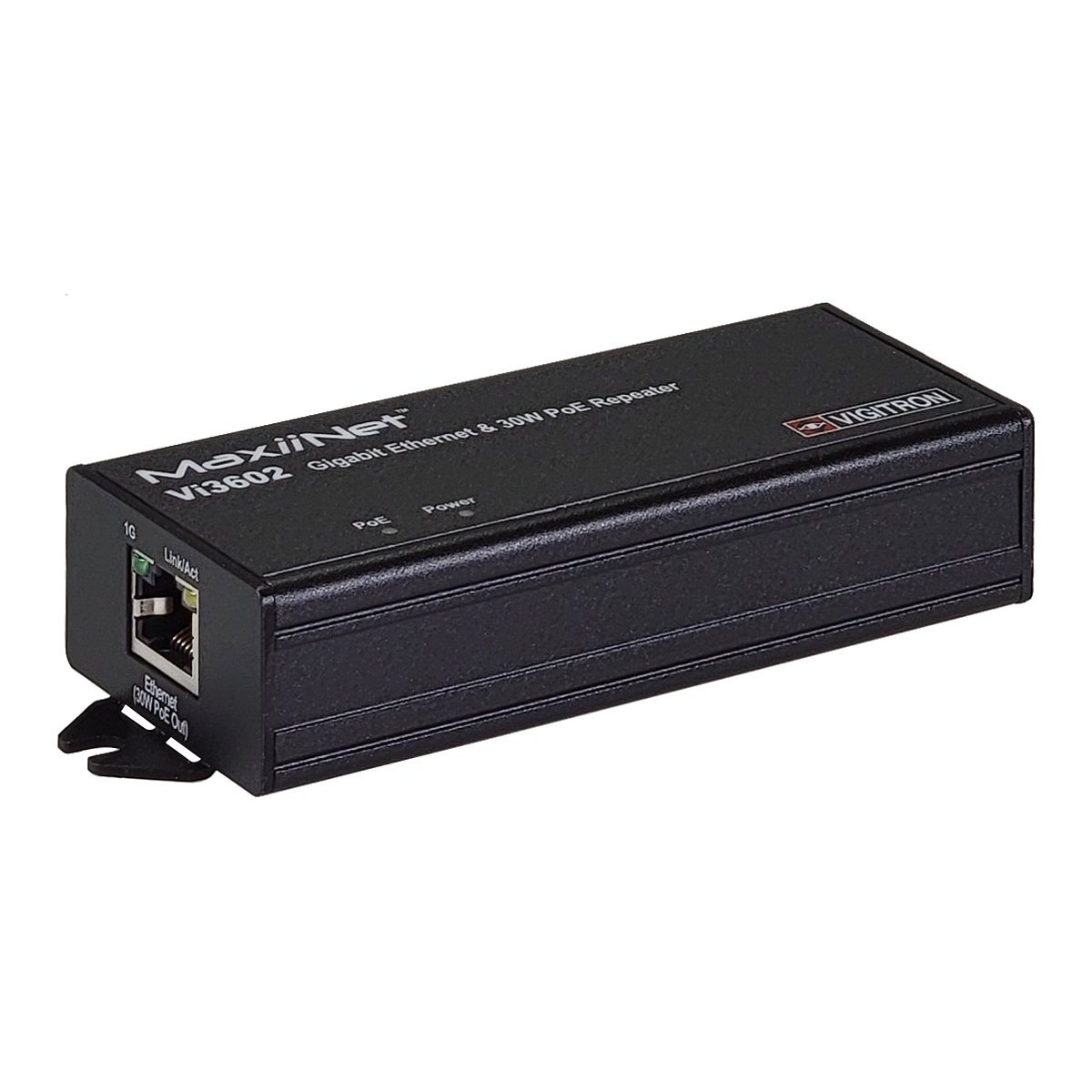

The Vi3602 is a 1G Ethernet and 30W PoE repeater that provides a cost-effective method for increasing distances beyond the Ethernet limit of 328 feet (100m) for IT or CCTV installations at the network speeds up to 1000Mbps. Each unit can extend Ethernet and PoE for 328 feet (100m). Multiple units can be cascaded to reach the desired distances. The Vi3602 is a high-performance device that meets the demands for the highest PoE-powered PTZ domes and LED lighting eliminating the need for local power or providing the ability to add PoE power.

Removable mounting brackets make installation an easy process. The Vi3602 is the perfect solution for any IP transmission application.Up to 4 units can be combined to achieve a distance of 1,640 feet (500m) for IP video, PoE, and data transmission. It is an ideal solution for extending data, video, and power from PoE switches, Midspans, and Power Source Equipment (PSE), and extending communications between network switches.

Features:

• Extends 1G Ethernet and PoE an extra 328ft (100m) per unit
• PoE powered with no need for local power
• No network configuration required
• Built-in network switch technology for reliable transmission
• Full network bandwidth 100/1000Mbps for transmitting the highest megapixel cameras and extending network switch to switch communications
• PoE power up to 30W for high power PTZ without the need for local power
• Compact size enables easy installation
• Multiple Vi3602s can be used to extend IP video and PoE at distances up to 3000ft.
