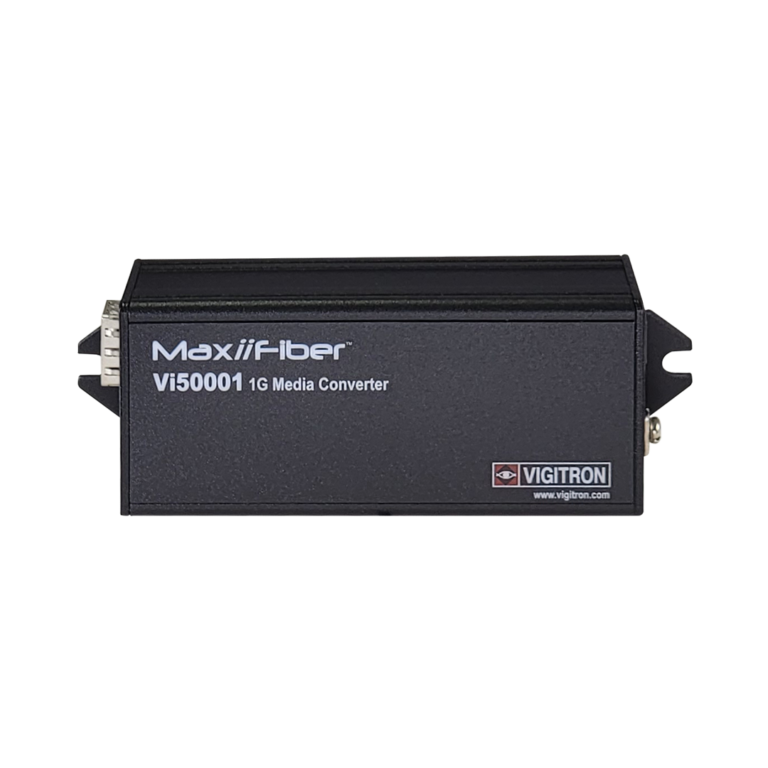

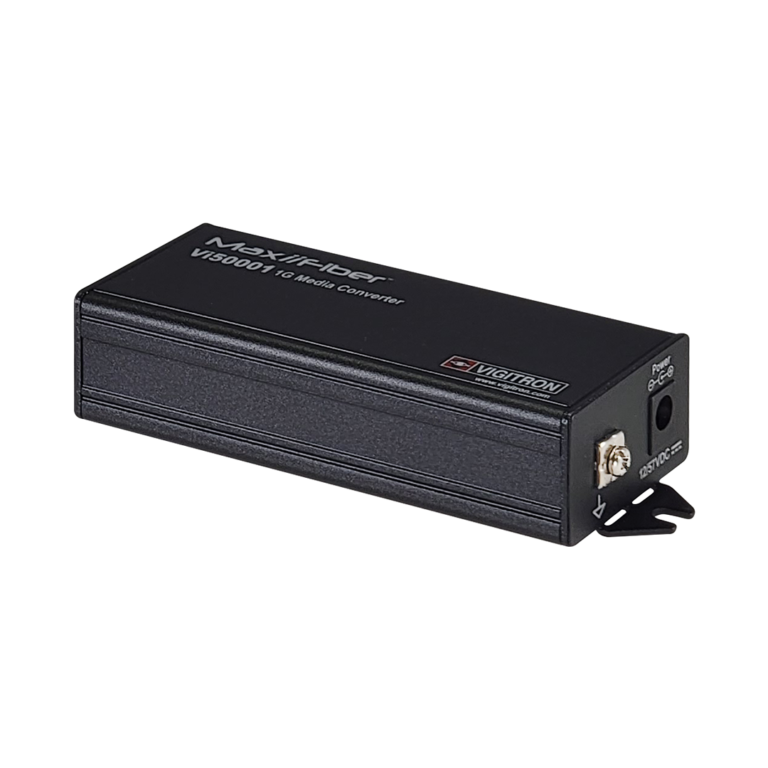

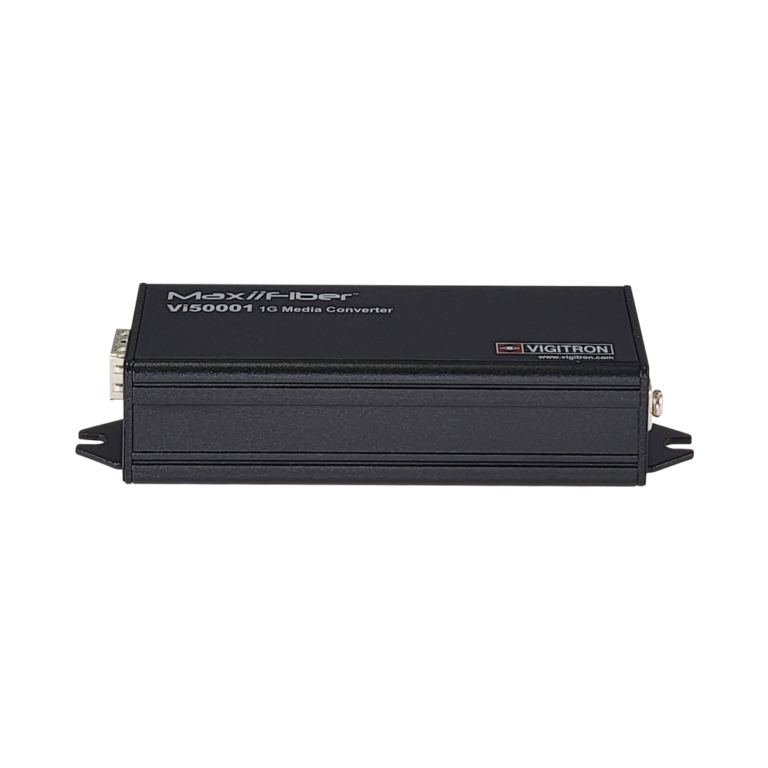

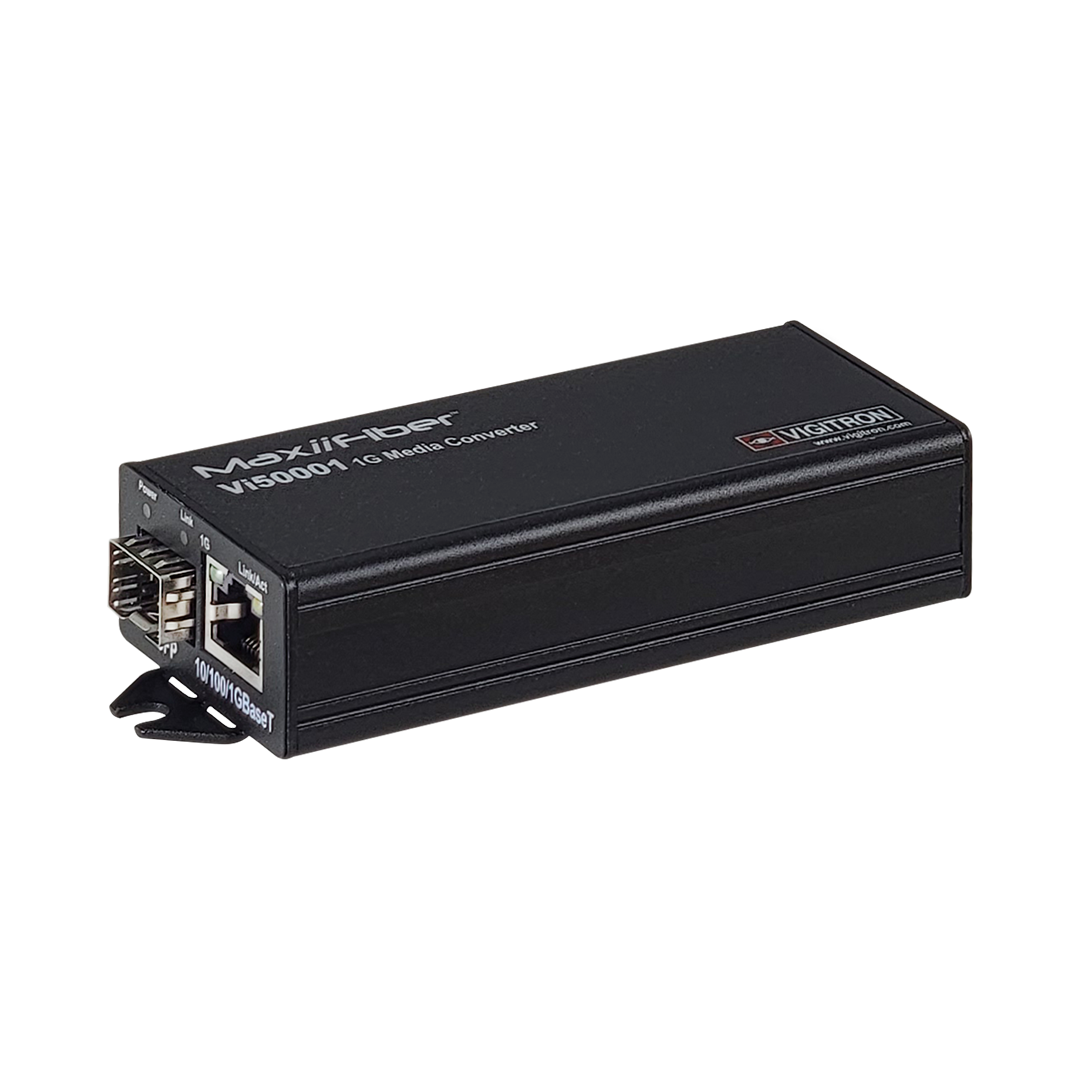

Vigitron’s Vi50001 is a media convertor that enables Ethernet signals to be transmitted over different types of fiber optic cables. UTP connections with fiber to meet long distance transmission requirement and those where fiber is already installed. The use of SFP fiber modules results in compatibility with all major single and multimode fiber optics cables to achieve desired transmission distances depending on the type of cables and SFPs. The Vi50001 can be powered by a local DC power supply or PoE sources.
The Vi50001 is an ideal solution for converting existing analog fiber infrastructures to IP systems. It provides a unique, reliable, and cost effective solution to combine a variety of transmission methods to meet any application requirement. Auto bandwidth sensing provides an efficient way to connect cameras to network switches and NVRs.
Features:
- Enables transmitting 1000Mbps Ethernet over fiber cables
- Uses Small Format Pluggable (SFP) to interface to a variety of fiber cables
- Powered by 12VDC or PoE
- Can interface directly to network switches
- Distances of up to 80Km can be achieved depending on the type of fiber cable and SFPs
- Transmits Jumbo Frames up to 9600 bytes for handling the largest Megapixel cameras
- Complies with all network standards
- Complies with the Multi-Standards Agreement for SFP interface
- Extended temperature operation up to -40°C to +80°C
- Auto bandwidth control 100/1000Mbps*
| Electrical | - |
| Ethernet | 100/1000Mbps for RJ45 1000Mbps for SFP fiber |
| Fiber Compatibility | Multimode Fiber Optical Cable: 50/125um Multimode Fiber Optical Cable: 62.5/125um Single Mode Fiber Optical Cable: 9/125um |
| Distance | Based on cable and SFP |
| Fiber Connection | LC based on SFP 1000Mbps |
| Connectors | Ethernet: RJ-45 Fiber: SFP socket compliant to MSA standards Power: Detachable Terminal Block |
| Status LED | Power Ethernet: Link/Traffic, 100Mbps/1000Mbps Fiber |
| PoE Output Power | IEEE 802.3af, at, bt up to 65W PoE |
| Power Supply | 12VDC @ 3W with no PoE output 48-57VDC @ up to 32W with PoE output using Vi0017 or similar power supply 48-57VDC up to 65W with PoE output using Vi1120 or similar power supply |
| Data Interface | RFC 768 UDP, RFC 2068 HTTP RFC 793 TCP, RFC 791 IP RFC 1783 TFTP, RFC 894 IP over Ethernet RFC 2544 TCP/IP Packet Transmission |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3af, IEEE 802.3at, IEEE 802.3z |
| Jumbo Frame | Up to 9,600 bytes |
| Regulatory | - |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | - |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +80°C Storage: -40°C to +85°C |
| Mechanical | - |
| Dimensions | 0.97x1.75x3.93 in., 2.46x4.45x10 cm (HxWxL) |
| Weight | 0.235 lbs (107g) |
| Material | Extruded Aluminum |
