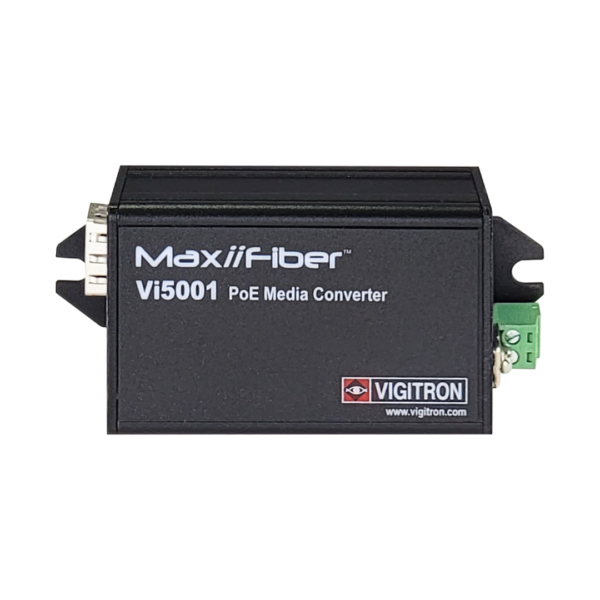

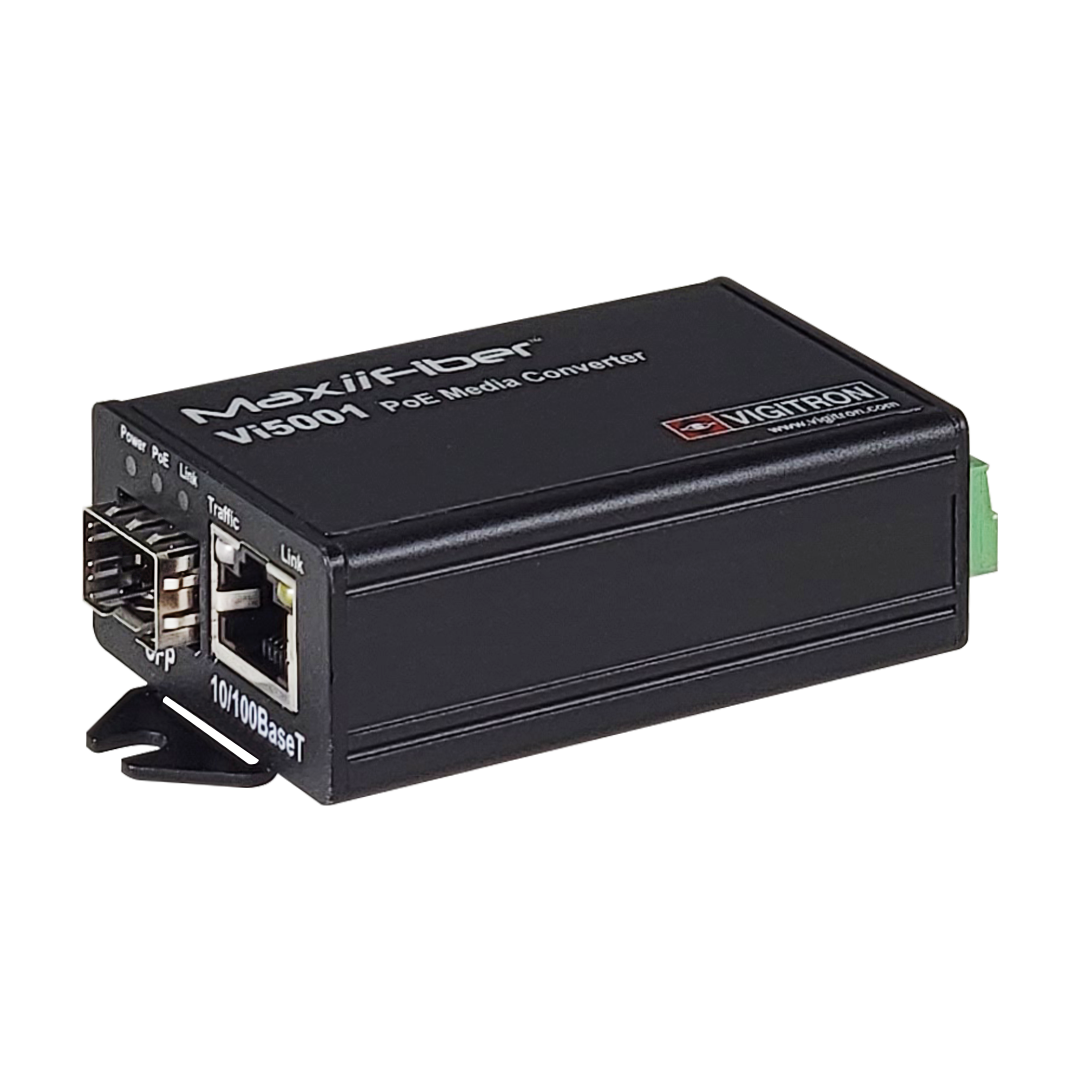

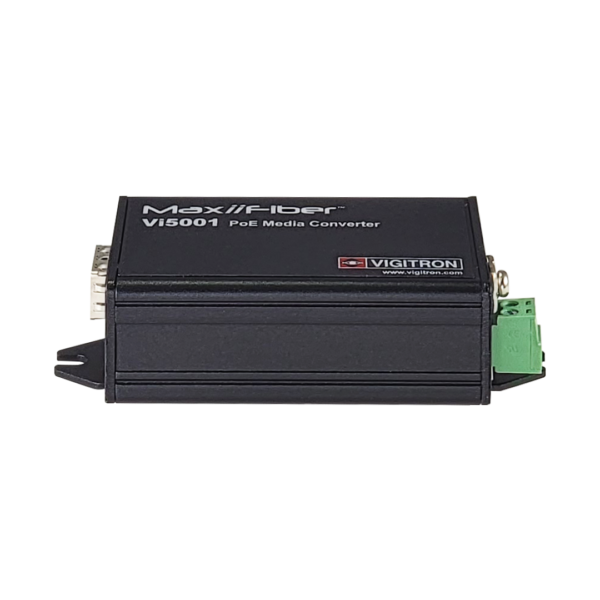

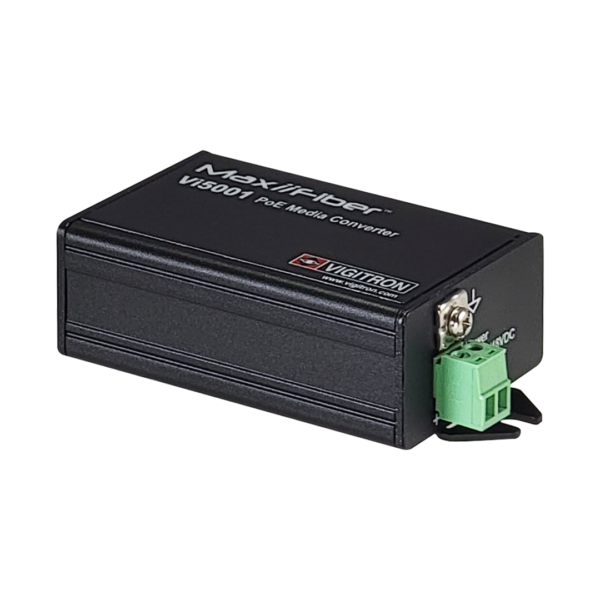

Vigitron’s Vi5001 is a single port media convertor that enables Ethernet signals to be transmitted over fiber optic cables. It enable UTP Ethernet to connect to fiber to meet long distance transmission requirement or where fiber is already installed. The use of SFP fiber modules results in compatibility with all major single and multimode fiber optic cables to achieve transmission distances depending on the cable and SFP. The Vi5001 also provides IEEE 802.3af/at PoE up to 30W to the connected IP camera when used with appropriate power supplies.

The Vi5001 is an ideal solution for converting existing analog fiber infrastructures to IP systems. It provides a unique, reliable, and cost effective solution to combine a variety of transmission methods to meet any application requirement.

Features:

• Transmits Ethernet over Fiber Optic cables
• Uses Small Format Pluggable (SFP) to interface to a variety of fiber cables
• Able to provide up to 30W PoE power to the IP cameras
• Can interface directly to network switch connections
• Depending on the type of fiber cable and SFPs, distances of up to 80Km can be achieved
• Compliant to all network standards
• Compliant with the Multi-Standards Agreement for SFP interface
• Extended temperature operation up to 0°C to +70°C
