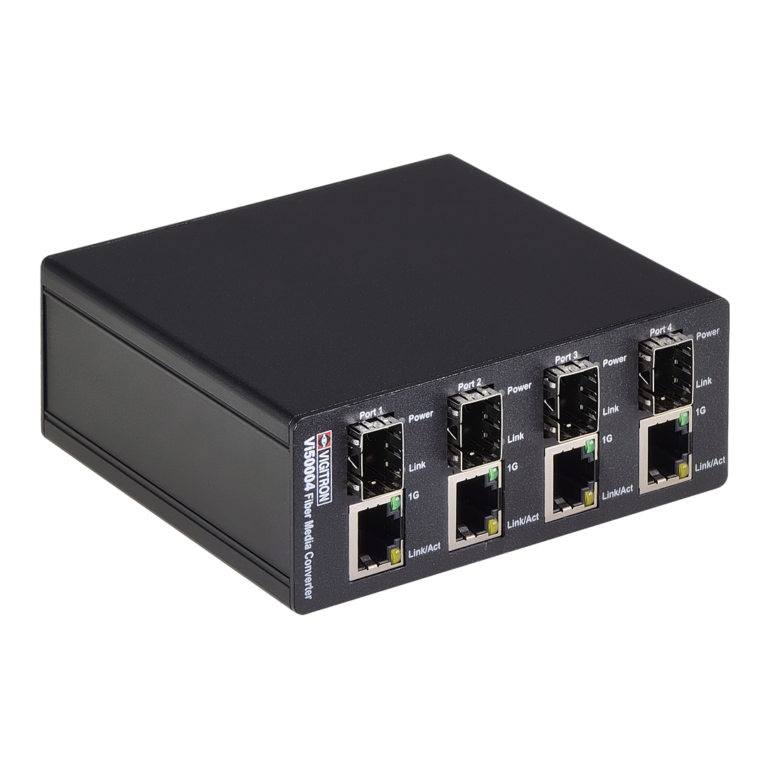

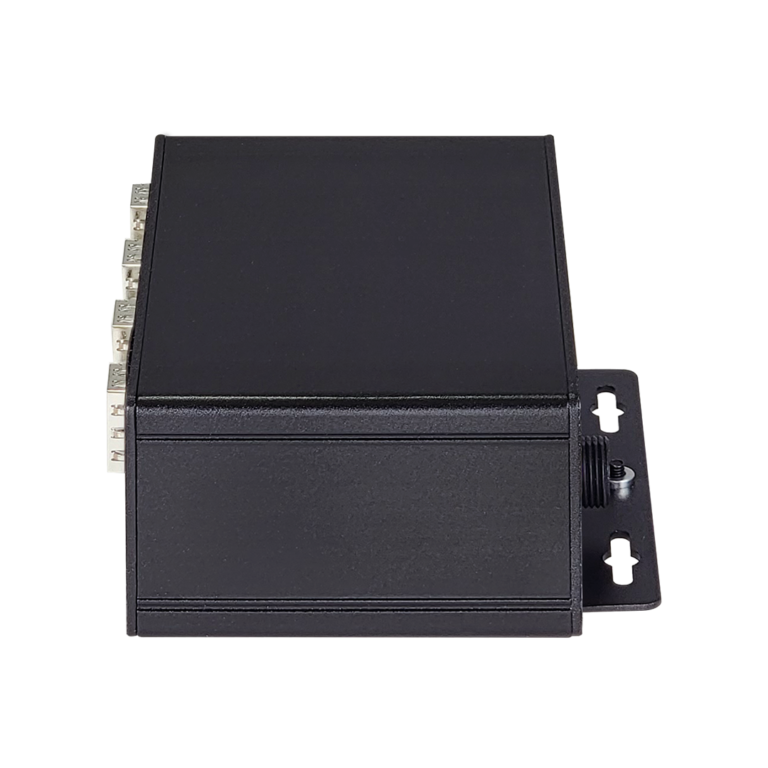

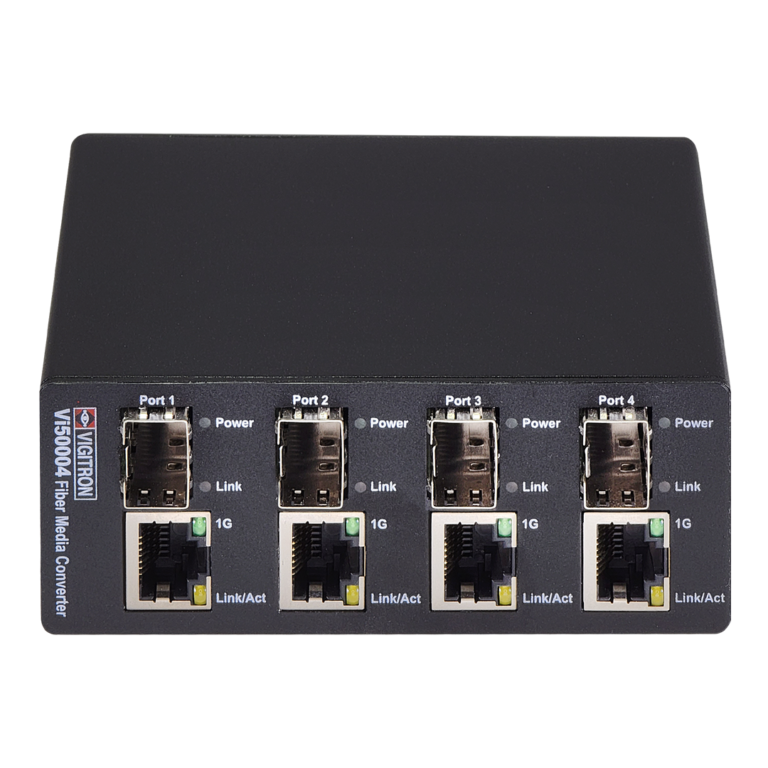

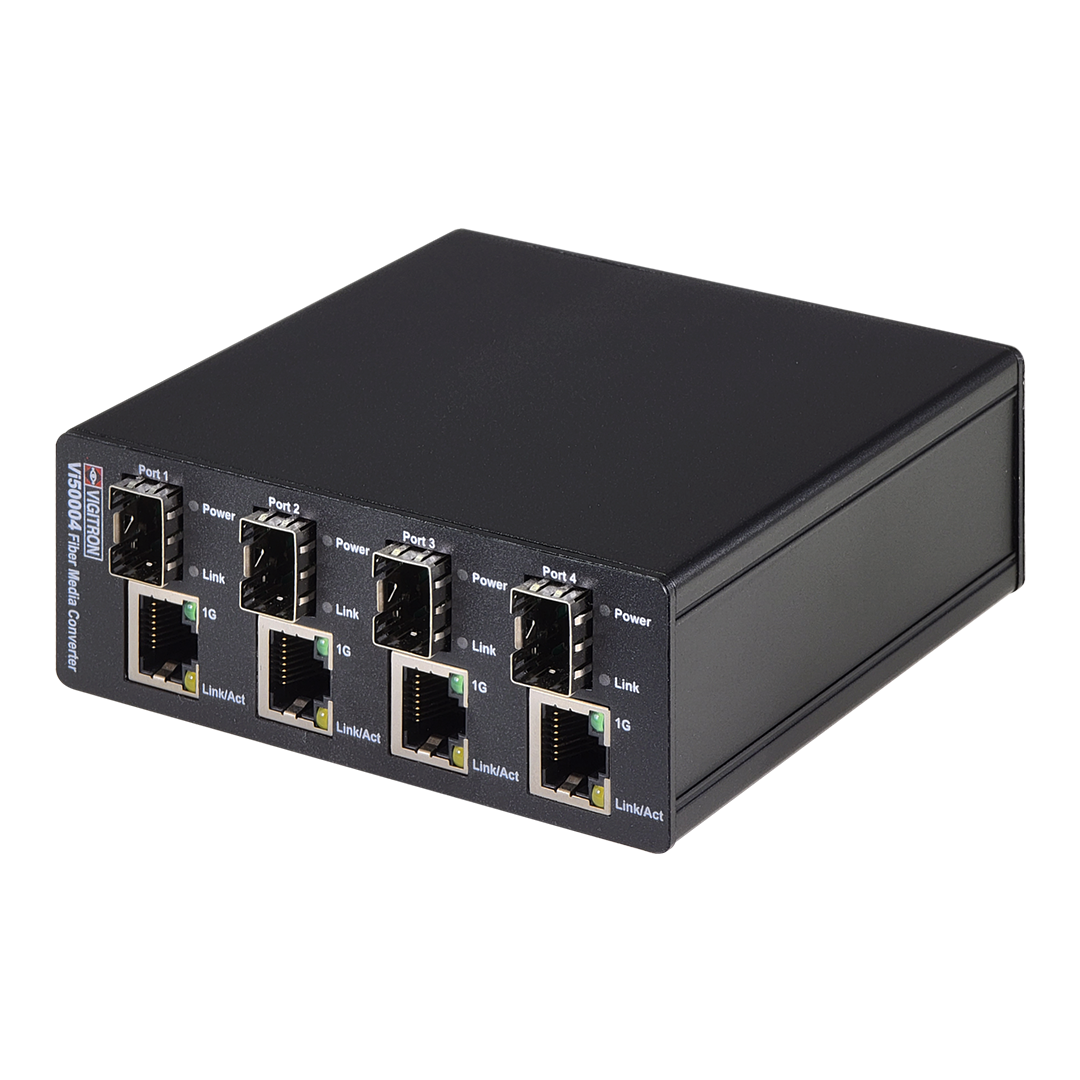

Vigitron’s Vi5004 is a 4-port fiber optic media convertor that enables Ethernet signals to be transmitted over fiber optic cables. It enables UTP Ethernet to connect to fiber to meet long-distance transmission requirements or where fiber is already installed. The use of fiber SFPs enables compatibility with all major single and multimode fiber optics cables to achieve transmission distances depending on the cable and SFP type. The Vi5004 can use virtually any MSA-compliant SFPs.

The Vi5004 is an ideal solution for converting existing analog fiber infrastructures to IP systems. It provides a unique, reliable, and cost-effective solution to meet long-distance transmission application requirements. Up to four Vi5004 units can be installed in a Vi5000R rackmount shelf to provide up to 16 ports of rack-mountable fiber optics media converters.

Features:

• Provides 4-ports to transmit Ethernet over Fiber Optic cables
• Uses Small Format Pluggable (SFP) to interface to a variety of fiber cables
• Can interface directly to network switch connections
• Depending on the type of fiber cable and SFPs, distances of up to 80Km can be achieved
• Compliant with all network standards
• Compliant with the Multi-Standards Agreement for the SFP interface
• Extended temperature operation up to 0°C to +70°C
