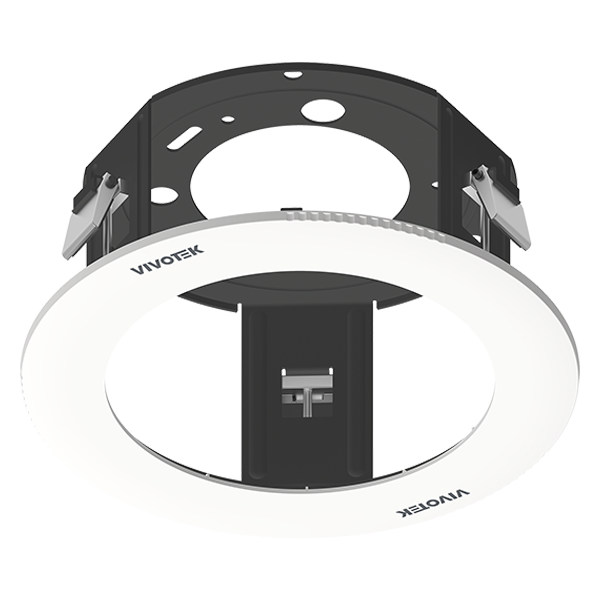

Vivotek - AM-10I - Recessed Kit for PTZ Camera SD9367-EHL, SD9387-EHL
Part number:
Price:

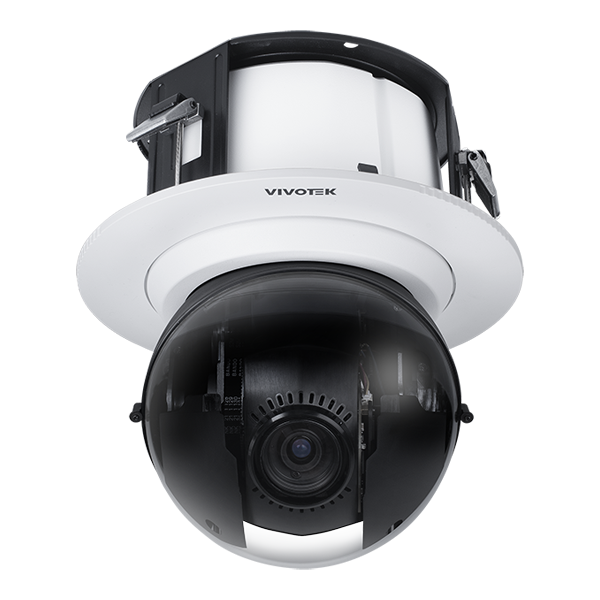

- • Flush Aesthetic: Instead of a bulky arm or wall mount, this kit hides the majority of the camera housing behind the ceiling, leaving only the PTZ dome exposed. This is ideal for offices, high-end retail, and public spaces.
- • Structural Support: Because high-performance PTZ cameras have motors that move the lens assembly rapidly, a standard drywall anchor is insufficient. The AM-10I provides a rigid, structural anchor point to prevent vibration, which is critical for maintaining sharp images during high-speed movement or zoom operations.
- • Cable Management: The design includes space to house the network pigtail and local connections securely behind the ceiling, shielding them from environmental elements or unauthorized tampering.
| P/N | VIO900000091 |
| Material | Bracket: SECC (Steel), Cover: PC (Polycarbonate) |
| Color | White |
| Dimensions | ⌀255 x 103.9 mm |
| Weight (Net) | 1200g |
| Box/Carton Dim. | 320 (L) x 318 (W) x 184 (H) mm |
| Box/Carton Weight | 1900g |
| Supported Models | SD9367-EHL, SD9387-EHL |
Name
Description
Size
Downloads
File
Specsheet
0.3mb
