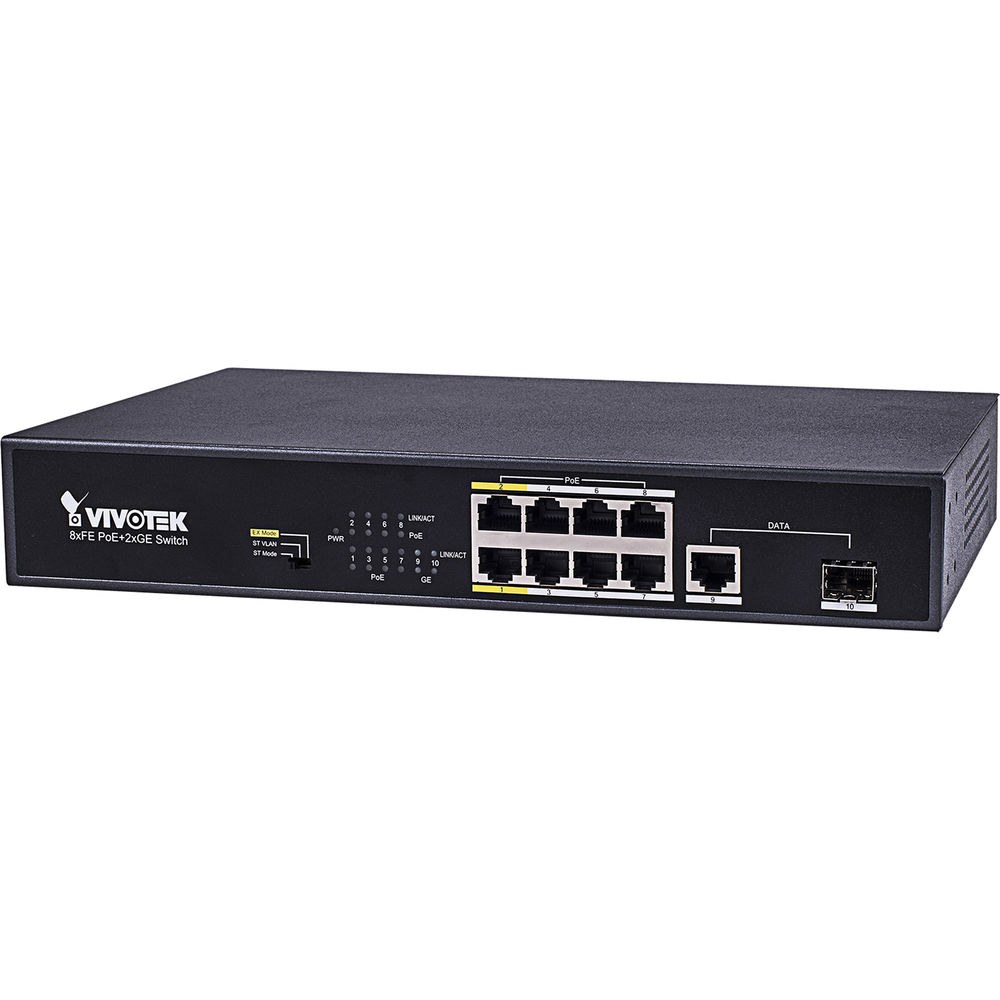

VIVOTEK’s FE unmanaged PoE switches quipped with DIP switch provides ST STandard and EX EXtend operational modes. They are specially designed for IP Surveillance applications. Besides standard 802.3af/at PoE functions in ST mode, the EX mode also transmits data & power on one single cable up to 200 meters at 10 Mbps via specific EX ports for long reach PoE IP cameras. VIVOTEK’s FE unmanaged PoE switches also feature adding an additional 10% range of input voltage tolerance (280VAC 4hr, 300VAC 1min), lightning surge protection of AC power & PoE surge protection to prevent damage caused by outside unstable AC power, lightning strikes and power spikes. These unique features help to reduce the costs of replacing damaged units
Features:
- 15.4W/30W 802.3af/802.3at compliant
- 4KV PoE surge protection each port(AW-FET-060C-065/AW-FET100C-120/AW-FGT-100C-120)
- 12KV PoE surge protection each port(AW-FGT-180C-250/AWFGT-260C-380)
- 4KV AC surge protection
- 20% range of input voltage tolerance (280VAC 4Hr, 300VAC
1min) - Circuit protection prevents power interference between ports
Networking Specifications
| 10/100Mbps RJ45 PoE Port | 8 |
| 10/100Mbps RJ45 Port | - |
| 10/100/1000Mbps RJ45 Port | 1 |
| Gigabit SFP Slot | 1 |
| Gigabit RJ45/SFP Combo Ports | - |
| EX Mode PoE (200M@10Mbps) | 2 * EX Mode: 1. CAT.6 or better UTP/STP cable is highly recommended. 2. Low quality cables will seriously limit the cabling distance. 3. Ex mode doesn’t support with the FE8391-V model. |
| VLAN Mode | Supported |
Ethernet Performance
| Switching Capacity | 5.6 Gbps |
| Mac Table | 4 K |
| Jumbo Frame | 1536 Bytes |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
Power Specifications
| Power Input Voltage | 100VAC ~ 240VAC |
| Max. PoE Output Power | Per Port 54VDC, Max. 30W |
| Total PoE Power Budget | 120W |
| IEEE 802.3af/at | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Supported |
| Surge Protection/Each PoE Port | 4 KV |
| Surge Protection for AC Power | 4 KV |
General
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Dimensions | 280 (L) x 180 (W) x 44 (H) mm |
| Weight | 1.54 kg |
Certifications
| EMC | CE, FCC, VCCI, C-Tick Class A |
| Safety | EN60950-1, IEC60950-1 |
