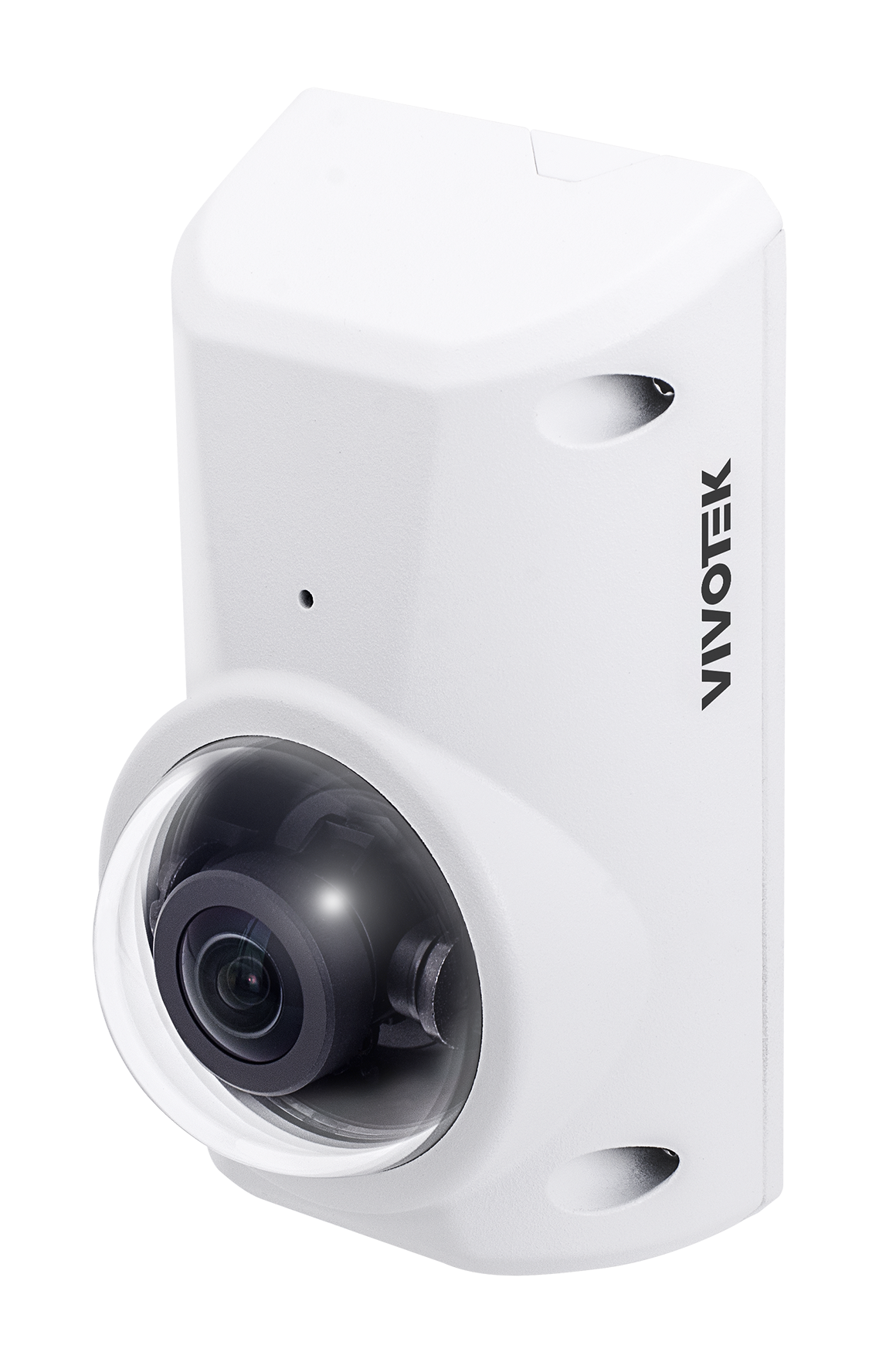

Vivotek - CC9380-HV-V2 - V-Series 5MP AI 180° Pano Wall IP Camera
Part number:
CC9380-HV-V2
Price:
- • WDR Pro for Unparalleled Visibility
- • Weather-proof IP66-rated and Vandal-proof IK10-rated
- • ±20° Tilt Lens
- • Built-in Microphone
- • 3D Noise Reduction for Low-light Conditions
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2GB |
| Camera Specifications | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.47 mm |
| Aperture | F2.7 |
| Iris Type | Fixed Iris |
| Field of View | 180° (Horizontal), 120° (Vertical), 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Minimum Illumination | 0.08 lux @ F2.7 (Color), 0.005 lux @ F2.7 (B/W) |
| Tilt Range | ±20° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Pixel calculator |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | |
| S/N Ratio | 62 dB |
| Dynamic Range | |
| Dynamic Range | 120 dB |
| Video Streaming | |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control, Smart Stream III |
| Image Settings | |
| General settings | Video settings, video orientation (flip, mirror, rotation), day/night settings, smart image |
| Overlay settings | Illuminators, anti-overexposure |
| Image settings | White balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto) |
| Exposure | Exposure strategy (measurement window, metering mode), exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR |
| Privacy mask | Pixel calculator |
| Scheduled Profile Settings | |
| Audio | One-way Audio |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Power and Network | |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection, Audio line input, Audio line output, Digital input: 1, Digital output: 1 |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 10 clients (Live viewing for 6 clients, live viewing up to 4 clients and playback 2 clients) |
| Security | |
| Security Features | Secure boot, Signed firmware, HTTPS/TLS encryption, Video encryption |
| General | |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F), Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) (IR off), -30°C ~ 45°C (-22°F ~ 113°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Certifications | |
| EMC | CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); IC (ICES-003 Issue 7) |
| Safety | UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), UKCA (BS EN IEC 62368-1) |
| Environment | IK10 (IEC 62262), IP66 (IEC 60529) |
| IA | BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Warranty | |
| Warranty | 10 years |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| Mechanical | |
| Weight | 338 g |
| Dimensions | 115 x 65 x 59 mm |
| Body | Metal |
| AI Analytics | |
| Audio Detection | Yes |
| Tampering Detection | Yes |
| People Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search |
| Vehicle Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search |
| Object Analytics | Unattended object detection, Missing object detection |
