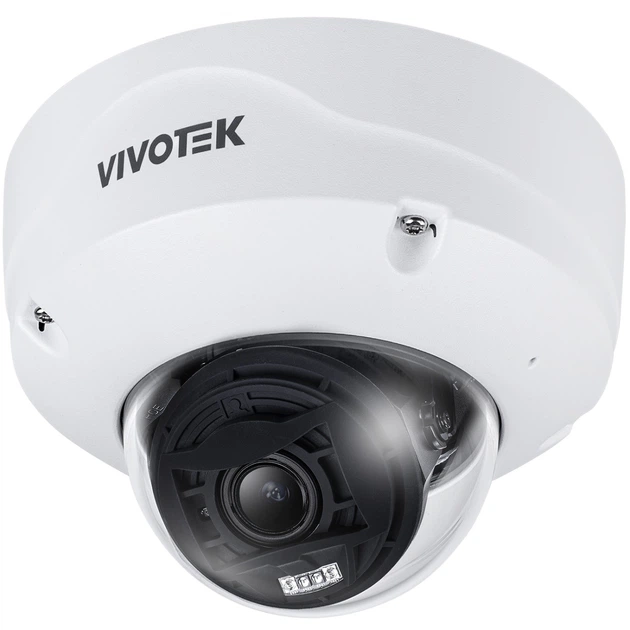

Vivotek - FD839-EHTV-V2 - Vortex Premium Cloud 5MP Outdoor AI IR Dome 2.7-13.5mm
Product Overview
The VIVOTEK FD839-EHTV-V2 is a professional-grade 5MP dome camera featuring a 2.8~12mm motorized vari-focal lens with remote focus for precise field-of-view adjustments. It combines WDR Pro and powerful 40-meter IR illumination to deliver clear 2560×1920 video in any lighting condition. Built to withstand extreme environments, it carries IP66, IK10, and NEMA 4X ratings. It comes equipped with a pre-installed 256GB industrial SD card and full-duplex two-way audio for comprehensive site security.
Key Configuration
- • Versatile Vari-focal Imaging: Features a 5MP (2560×1920) 1/2.8" CMOS sensor paired with a 2.8~12mm motorized lens, offering remote focus and a P-iris for optimal clarity across varying depths.
- • Adaptable Field of View: The lens provides a flexible horizontal FOV ranging from 95.4° to 28.7°, allowing for either wide-area surveillance or narrow, detailed zooming.
- • High-Power Night Vision: Equipped with four Smart IR LEDs reaching up to 40 meters, ensuring superior long-range visibility even in total darkness (0 lux).
- • Ready-to-Record Storage: Includes a pre-installed 256GB industrial-grade SD card, providing reliable high-capacity edge storage straight from the box.
- • PoE Efficiency: Powered by standard PoE (802.3af Class 3) with a max draw of 12.4W, making it a powerful yet energy-efficient solution for professional security networks.
Key Features
The FD839-EHTV-V2 is an NDAA/TAA-compliant dome featuring WDR Pro and a highly flexible 3-axis adjustment (350° pan, 80° tilt) for versatile positioning. It supports full-duplex two-way audio with a built-in microphone and offers expanded I/O capabilities for digital inputs/outputs via an optional cable. Security is prioritized through Secure Boot and video encryption, while the AI Hub enables advanced, specialized analytics such as Personal Protective Equipment (PPE) and fall detection.
Technical Context
This robust camera is designed for extreme climates, maintaining operations in temperatures as low as -35°C and high-humidity environments up to 98% RH. It supports secure streaming via WebRTC and TLS 1.2, accommodating up to six concurrent clients for simultaneous live monitoring. The hardware is backed by rigorous industrial certifications, including NEMA 4X for corrosion resistance and IK10 for high-impact protection.
Installation Notes
Measuring Ø134 × 116 mm and weighing 990 g, this heavy-duty metal dome is built for longevity and includes a dedicated L-shaped wrench for secure assembly. The AO-015 cable is essential for users requiring external audio I/O or alarm integration. The unit is optimized for CAT5e or CAT6 cabling and, depending on the specific license selected, can be covered by a warranty of up to 10 years.
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | SD: 1280 x 960 HD: 2560 x 1920 |
| Lens Types | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.6 ~ F3.3 |
| Iris | P-iris |
| Field of View | 95.4° ~ 28.7° (Horizontal) 68.8° ~ 21.5° (Vertical) 129.6° ~ 35.9° (Diagonal) |
| Camera Movement | Pan: 350° Tilt: 80° Rotate: 350° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4 |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.04 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings - Frame Rate | 15FPS |
| Video Streaming Settings | HD Video 2560 x 1920@15fps 1.2Mbps upload SD Video 1280 x 960@15fps 300Kbps upload |
| Standard Audio Settings | |
| Audio | Two-way Audio (Full duplex)* * Requires AO-015 cable (License required to enable speaker talk-down feature) |
| Interface | Built-in microphone Two-way audio connectivity by optional I/O & audio cable |
| Effective Range | 5 Meters |
| Power and Network | |
| Power input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W / 9.6W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection Audio line input* Audio line output* Digital input: 1* Digital output: 1* * Requires AO-015 cable |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients *Live viewing for 6 clients *Live viewing up to 4 clients and playback 2 clients |
| Security | Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface (Ethernet) | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Certifications | EMC: CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471), UKCA (BS EN IEC 62368-1) Environment: NEMA (NEMA 250 Type 4X), IK10 (IEC 62262), IP66 (IEC 60529), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Warranty | Up to 10 years (Depends on license type) |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, L-shaped wrench |
| Mechanical | |
| Weight | 990 g |
| Dimensions | ø 134 x 116 mm |
| Body | Metal |
| AI Analytics | |
| Audio detection | Yes |
| Tampering detection | Yes |
| Application (Analytics Events) | Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection |
| AI Hub with xPro License | Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight |
| Application available with a license | Personal protective equipment, Fall detection, Think alert, Facial recognition, License plate recognition |
