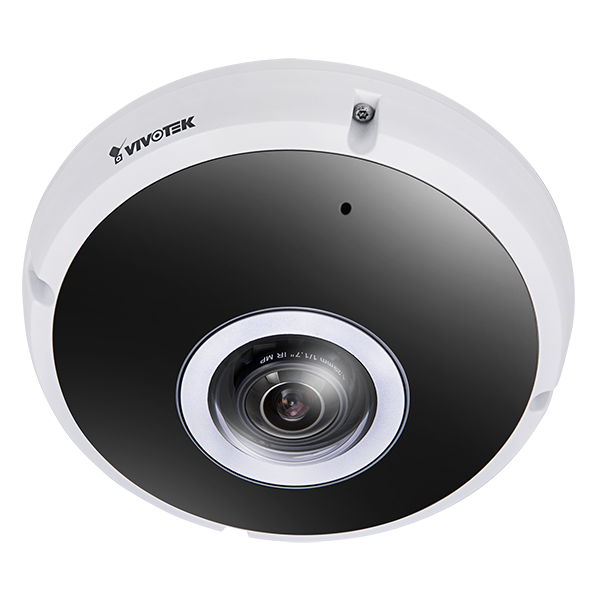

12MP Fisheye Panoramic AI Camera
Features:
- 12MP mobile network fisheye cam, efficient H.265
- Rugged IK10, IP66, grounded, vented case
- Trend Micro IoT Securit
- EN50155 OT4 Compliant Mobile Surveillance
- Designed with onboard AI in mind
| Camera Specfications | - |
| Image Sensor | 1/2.3" Progressive CMOS in 4056x3040 |
| Max. Resolution | 2816x2816 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.18mm |
| Aperture | F2.18 |
| Iris Type | Fixed iris |
| Field of View | 180° ± 5° (Horizontal) 180° ± 5° (Vertical) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut lter | Yes |
| Illuminators | Built-in 940nm IR illuminators, effective up to 5 meters (50IRE) with Smart IR II, IR LED*4 |
| Minimum Illumination | 0.1 lux @ F2.18 (Color) <0.005 lux @ F2.18 (B/W) 0 lux with IR illumination on |
| Pan/Tilt/Zoom Functionalities | ePTZ: 12x digital zoom (12x on IE plug-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Pixel calculator |
| Audio | - |
| Audio Capability | One-way Audio |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | - |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block , Audit log, Con gurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed rmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Pro le G, S, T supported, speci cation available at www.onvif.org |
| AI Analytics | - |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Solution Integration | - |
| VADP Package | Deep Learning VCA (Smart Motion Detection, Smart VCA), Trend Micro IoT Security (3-year free trial) |
| Video motion detection | Five-window video motion detection |
| Alarm and Event | - |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording noti cation, SD card life expectancy, shock detection, system boot |
| Event Action | Event noti cation via audio clip*, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card, Camera link |
| General | - |
| Connectors | Single HL3 cable with M12 4pin D-coded, Female connector for 10/100 Mbps PoE network connection Eearth/grounding point hole x1 Venting holes with water-proof breathable membrane x1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 18 W/9.55 W (IR on/off) |
| Dimensions | ø 160 x 61.7 mm |
| Weight | Approx. 930g |
| Certi cations | EMC CE(EN 55032, EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), ICES-003 Issue 07, RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), EMV06 Safety UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment IK10 (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X) Railway EN 50155(OT4/ST1), EN 50121-3-2, EN 60068-2-1, EN 60068-2-2, EN 61373, EN 45545-2, IEC 60571 Ed 3.0, IEC 62236-3-2 Ed 3.0, EN50121-4 Vehicles ECE R118, E-Mark(ECE R10) BI BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Operating Temperature | Starting Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Working Temperature: -40°C ~ 70°C (-40°F ~ 158°F) (IR off) -40°C ~ 60°C (-40°F ~ 140°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Storage Temperature | -40°C ~ 70°C (14°F ~ 158°F) |
| System Requirements | - |
| Operating System | Microsoft Windows 11/10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | - |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, desiccant bag |
| DORI (EN 62676-4 Standard) | - |
| Detection (25PPM/ 8PPF) | 30.3 m (99.4 ft) |
| Observation (63PPM/ 19PPF) | 12.0 m (39.4 ft) |
| Recognition (125PPM/ 38PPF) | 6.1 m (20.0 ft) |
| Identi cation (250PPM/ 76PPF) | 3.0 m (9.8 ft) |
