Vivotek - IB839-EHTV-V2 - Vortex Premium Cloud 5MP Outdoor AI IR Bullet Camera 2.8~12mm
Product Overview

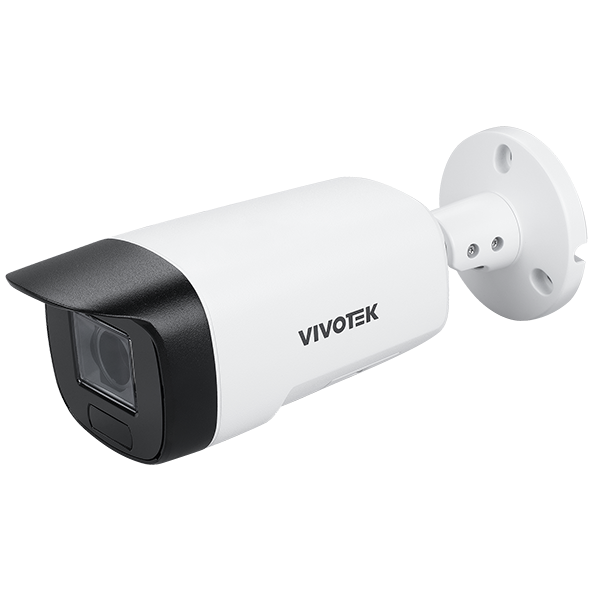

The VIVOTEK IB839-EHTV-V2 is a professional 5MP bullet camera featuring a 2.8~12mm motorized vari-focal lens with remote focus for precise monitoring. It combines WDR Pro and a powerful 40-meter IR range to ensure high-quality 2560×1920 video in all lighting conditions. With an elite IP67/IK10 rating for maximum weather and impact resistance, it includes a 256GB industrial SD card and two-way audio support for a comprehensive, rugged security solution.
Key Configuration
- • 5MP Vari-focal Lens: 1/2.8" CMOS sensor with a 2.8~12mm motorized lens (95.4°–28.7° FOV) and remote focus for easy adjustment.
- • 40m Smart IR: Clear night vision up to 40 meters with intelligent illumination to prevent overexposure in total darkness.
- • 256GB Built-in Storage: Includes an industrial-grade SD card for reliable, out-of-the-box local recording.
- • Rugged & Efficient: IP67/IK10 weather and impact resistance; powered by PoE (802.3af) with a 12.4W max draw.
Key Features
The IB839-EHTV-V2 is an NDAA/TAA-compliant bullet camera featuring WDR Pro for high-contrast visibility and a flexible mounting design with 80° tilt and 350° rotation. It offers comprehensive audio options, including a built-in microphone and external I/O for two-way communication. Cybersecurity is reinforced through secure boot and signed firmware, while the AI Hub expands its capabilities to include advanced safety analytics like fall detection and Personal Protective Equipment (PPE) monitoring.
Technical Context
Engineered for extreme reliability, this camera supports secure streaming via WebRTC and TLS 1.2 for up to six concurrent clients. It is built to withstand harsh environments and operate in temperatures as low as -35°C. With a non-condensing humidity tolerance of 98%, it ensures stable performance across a wide range of global protocols, including IPv4, RTSP, and HTTPS.
Installation Notes
This heavy-duty metal unit measures Ø92 × 258.5 mm and weighs 1.04 kg, providing superior protection against water immersion and physical impact. The installation kit includes an alignment sticker and cable gland to facilitate a clean, weather-tight setup using standard CAT5e or CAT6 cabling. Depending on the license tier, the hardware is eligible for an industry-leading warranty of up to 10 years.
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | SD: 1280 x 960 HD: 2560 x 1920 |
| Lens Types | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.6 ~ F3.3 |
| Iris | P-iris |
| Field of View | 95.4° ~ 28.7° (Horizontal) 68.8° ~ 21.5° (Vertical) 129.6° ~ 35.9° (Diagonal) |
| Camera Movement | Tilt: 80° Rotate: 350° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4 |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.04 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings - Frame Rate | 15FPS |
| Video Streaming Settings | HD Video 2560 x 1920@15fps 1.2Mbps upload SD Video 1280 x 960@15fps 300Kbps upload |
| Standard Audio Settings | |
| Audio | Two-way Audio (License required to enable speaker talk-down feature) |
| Interface | Built-in microphone External microphone Input External line output |
| Effective Range | 5 Meters |
| Power and Network | |
| Power input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W / 9.6W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection Audio line input Audio line output Digital input: 1 Digital output: 1 |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients *Live viewing for 6 clients *Live viewing up to 4 clients and playback 2 clients |
| Security | Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface (Ethernet) | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Certifications | EMC: CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471), UKCA (BS EN IEC 62368-1) Environment: IK10 (IEC 62262), IP66, IP67 (IEC 60529), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Warranty | Up to 10 years (Depends on license type) |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, cable gland |
| Mechanical | |
| Weight | 1.04 kg |
| Dimensions | ø 92 x 258.5 mm |
| Body | Metal |
| AI Analytics | |
| Audio detection | Yes |
| Tampering detection | Yes |
| Application (Analytics Events) | Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection |
| AI Hub with xPro License | Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight |
| Application available with a license | Personal protective equipment, Fall detection, Think alert, Facial recognition, License plate recognition |
