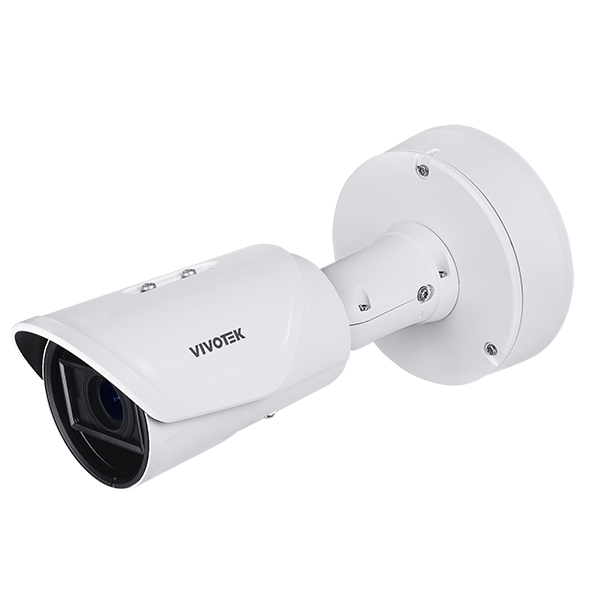

2MP Outdoor Bullet AI Camera
Spend Less, Save More
The new installation-friendly mechanical design has made installation easier and more hassle-free than ever. Installation of the camera now requires only 1 screw for 3-axis adjustment, saving both time and money, and allowing the user to focus attention on service and upgrades. With wireless access via the supported proprietary Wi-Fi dongle, the view angle can be easily adjusted during installation. Making the camera even more versatile, it can operate without the need for heaters at a range of temperatures between -50 °C to 60 °C (-58 °F to 140 °F) and thus is more energy efficient in all conditions.
Protect Your Digital Privacy and Assets
Harmonizing the camera with various built-in cybersecurity capabilities, VIVOTEK promises to keep your data safe and secure. Signed firmware, secure boot and Trend Micro IoT Security ensure only the trusted firmware with VIVOTEK digital signature can be installed, protect the system from attacks or infections by malicious unauthenticated code every time you boot up and provide multi-layer protection with the latest signature upgrades.
Lightning-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search results. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.
Features:
- Supreme Night Visibility II for Low Light Clarity
- WDR Pro for Unparalleled Visibility
- Built-in IRs up to 50M with Smart IR II
- AI-powered Smart Motion Detection and Smart VCA
- Cyber Protection via Trend Micro IoT Security
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Specifications | |
| Image Sensor | 1/2" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4 ~ 9 mm (f = 3.5 ~11.4 mm, equivalent focal length @ 1/2.8") |
| Aperture | F1.3 ~ 2.2 |
| Iris Type | P-iris |
| Field of View | 100° ~ 46° (Horizontal) 52° ~ 26° (Vertical) 120° ~ 53° (Diagonal) |
| Shutter Time | 1 sec. to 1/100,000 sec. |
| WDR Technology | WDR Pro II |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR III, IR LED*4 (50IRE) |
| Minimum Illumination | 0.040 lux @ F1.3 (Color), 50IRE 0.015 lux @ F1.3 (Color), 30IRE <0.005 lux @ F1.3 (B/W) 0 lux with IR illumination on |
| Pan Range | ±180° |
| Tilt Range | 90° |
| Rotation Range | ±180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom, Micro USB*, pixel calculator *Requires Wi-Fi dongle and Micro B converter |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 60 fps @ 1920x1080 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 58 dB |
| Dynamic Range | 140dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, Smart IR (target zone) Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, LDC, EIS (built-in gyro sensor), scene mode (auto, deblur) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus zoom, focus Privacy mask Pixel calculator Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection people, vehicle (4-wheeled, 2-wheeled) Attribute Extraction people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection |
| Application available with license | Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| AI-powered Image Enhancement | Smart IR III |
| RealSight Engine | Smart IR III, Deblur, WDR, White Balance, Exposure Control |
| Solution Integration | |
| VADP Package | Stratocast, Trend Micro IoT Security (3-year free trial) |
| Video motion detection | Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps PoE network connection Audio line input Audio line output DC 12V power input AC 24V power input Digital input*3 Digital output*3 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) Micro USB (Extension I/O Module Kit Included by Default) |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy) |
| Power Consumption | PoE: 22.23/18.65 W (IR on/off) DC 12V: 17.28/13.70 W (IR on/off) AC 24V: 18.26/14.68 W (IR on/off) |
| Dimensions | ø 153 x 283 mm |
| Weight | 1.86 kg |
| Certifications | EMC CE (EN 55032/EN 55035 Class A, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), UKCA (BS EN 55032/BS EN 55035 Class A),RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7) Safety UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1) Environment IK10 (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X), IEC 60068-2-11 IA BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F) (IR off) -50°C ~ 50°C (-58°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, I/O cable, adapting plate, conduit bracket |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | Wide: 49.1 m (161.0 ft) Tele: 96 m (315.1 ft) |
| Observation (63PPM/ 19PPF) | Wide: 19.6 m (64.3 ft) Tele: 38.4 m (126.0 ft) |
| Recognition (125PPM/ 38PPF) | Wide: 9.8 m (32.1 ft) Tele: 19.2 m (63.0 ft) |
| Identification (250PPM/ 76PPF) | Wide: 4.8 m (15.8 ft) Tele: 9.6 m (31.4 ft) |
