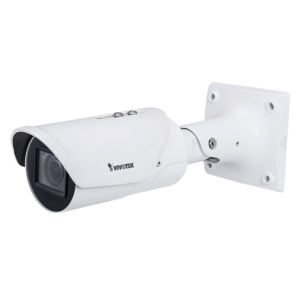

VIVOTEK's IB9387-LPR-V2 camera is a standalone LPR (License Plate Recognition) camera system equipped with built-in license plate recognition software and featuring license plate validation capabilities for advanced white-list and black-list applications. It can simultaneously read multiple countries or states, such as Singapore, Malaysia, Texas, Oklahoma, and neighboring states. It also has built-in infrared illuminators for night-time operations, ensuring excellent recognition performance even in low-light conditions.
This camera supports the conversion of license plates into Wiegand signals for use with access control systems and offers various APIs for integration with third-party systems like parking management, toll collection, and weighbridge systems. The Camera provides not only license plate reading with white and black-list system for vehicle verification but also vehicle type and color recognition, enabling parking systems to identify vehicle attributes quickly. This system is highly suitable for parking lot access control, pay-per-use systems, or any LPR applications where vehicles come to a stop or near stop.
Features:
- Embedded access control application based on LPR with MMC and Direction Recognition
- Supports License Plates from over 100+ Countries
- Black and White Lists for License Plate Verification
- Fully Integrated with VAST2 & VSS VMS
- Various Open APIs Available for 3rd Party Integration
- Trend Micro IoT Security
- Supports Wiegand Protocol for Access Control Applications
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
| Technical Specifications | |
| System Information | |
| Model | IB9387-LPR-V2 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1 GB |
| RAM | 2 GB |
| Camera Features | |
| Image Sensor | 1/2.8” Progressiv e CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 3.2~10.5 mm |
| Aperture | F 1.6 ~ F 3.3 |
| Iris type | P-iris |
| Field of View | 97.3° ~ 27.9° (Horizontal) 70.3° ~ 20.9°(Vertical) 131.5° ~ 34.9° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | IR LED*4 |
| Minimum Illumination | 0.06 Lux @ F1.4 (Color) <0.01 Lux @ F1.4 (B/W) 0 Lux with IR illumination on |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/tilt/zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Built-in 32GB MicroSD card for LPR images Slot type: MicroSD/ SDHC/SDXC card slot Seamless Recording |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 (WDR on) 30 fps @ 2560x1440 (WDR on) |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 60 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (f lip, mirror, rotation), day /night settings; Illuminators: illuminators, anti-overexposure, Smart IR II; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (LPC-parking lots); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way Audio |
| Compression | G.711, G.726 |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported |
| Intelligent Video | |
| Embedded Software | VaxALPR |
| VADP Package | Trend Micro IoT Securit |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Event Action | Camera: Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card ANPR Software: Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, wiegand protocol supported VaxALPR Software: FTP, JSON, XML, TCP Serv er, TCP client, wiegand protocol supported |
| General | |
| Connectors | RJ-45 cable connector f or Network/PoE connection Audio line in Audio line out AC 24 V DC 12 V Digital input *2 Digital output *2 (dry contact, Load v oltage 30V AC/ DC, Load current 1A max) |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC 12V, IEEE 802.3at PoE Class 4 |
| Power Consumption | PoE: Max. 26 W DC 12V:Max. 29.5 W AC 24V: Max. 28 W |
| Dimensions | 118 x 118 x 294 mm |
| Weight | 1.3 kg |
| Certif ications | EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), RCM (AS/NZS CISPR 32 Class A), FCC (FCC Part 15 Subpart B Class A), ICES (ICES-003 Issue 7), VCCI (VCCI-CISPR 32 Class A); Safety : UL (UL 62368-1 Ed.3), CB (IEC/EN 62368-1, EN 62471); Environment: IK10 (IEC 62262), IP66/67 (IEC 60529); IA: BIS (IS 13252, IEC 60950-1), BSMI (EMC: CNS15936) |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only ) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
| Included Accessories | |
| Others | Quick installation guide, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield |
