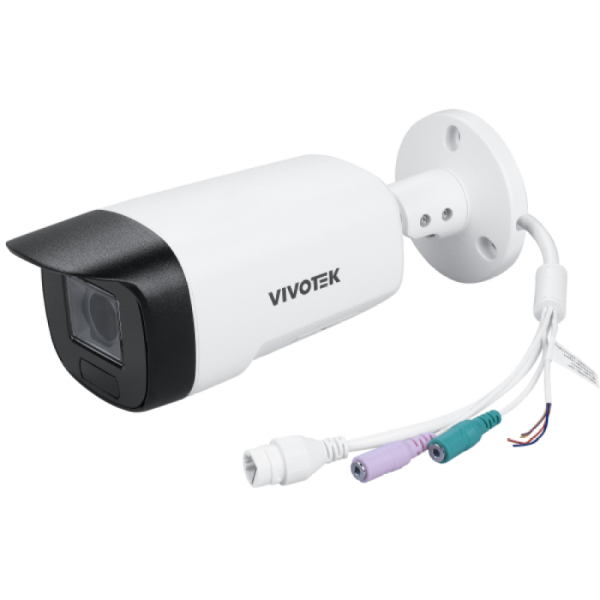

8MP Bullet Camera
Great Image Performance Powered by RealSight Engine
RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.
AI Detection for Accurate Alarm
VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches.
Enhanced Security with TPM 2.0
The TPM 2.0 chip provides hardware encryption to protect confidential and cryptographic data, prevent unauthorized access, and also ensures system integrity for long-term security.
Engineered for Endurance in Most Environments
IP67 & IK10 weather-resistant and vandal-proof, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment.
Build for Easy Installation
This camera is designed for quick and easy installation, featuring a T10 screw mechanism throughout its body. This design enables installers to efficiently disassemble and complete the installation using only a screwdriver, significantly reducing the complexity and time required for installation.
Complete Video Security with VIVOTEK Solution
Access and manage all devices and accounts through a single platform, providing accurate event monitoring and intuitive security system operation video investigation no matter where you are.
Features:
- AI-powered Smart Motion Detection and Smart VCA
- RealSight Engine for unparalleled visibility
- Built-in IRs up to 40M
- IP66/IP67/IK10 Protection
- Signed Firmware, Secure Boot, TPM 2.0
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Speci cations | |
| Image Sensor | 1/1.8" Progressive CMOS |
| Max. Resolution | 3840x2160 (8MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4.3~9.8mm |
| Aperture | F1.6 ~ F2.6 |
| Iris Type | P-iris |
| Field of View | 110.4° ~ 45.1° (Horizontal) 57.9° ~ 25.4° (Vertical) 133.9° ~ 51.8°(Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut lter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4 |
| Minimum Illumination | 0.02 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Tilt Range | 80° |
| Rotation Range | 350° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom, pixel calculator |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 3840x2160 (8MP) |
| Maximum Streams | 3 video streams (Up to 8 con gurable pro les) |
| Main Stream | 30fps @3840x2160, 3328x1872, 3072x1728, 2688x1520, 2560x1440, 1920x1080, 1280x720, 640x360 (16:9) |
| 2nd Stream | 30fps @1920x1080, 1280x720, 640x360 (16:9) |
| 3rd Stream | 30 fps @ 1280x720, 640x360 (16:9) |
| S/N Ratio | 54 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings video title and time stamp overlay, video orientation ( ip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure, VCA-based Smart IR III Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus zoom, focus Privacy mask pixel calculator Scheduled pro le settings |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone External microphone Input External line output |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed rmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certi ed Trusted Platform Module (TPM) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Pro le G, S, T supported, speci cation available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time lter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection |
| Application available with license | Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| RealSight Engine | Smart IR III, Deblur, WDR, White Balance, Exposure Control |
| Solution Integration | |
| VADP Package | Trend Micro (Default, 3-year free trial) |
| Video motion detection | Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording noti cation, SD card life expectancy, shock detection, system boot |
| Event Action | Event noti cation via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | Wide: 88.1 m (289.2 ft) Tele: 197.6 m (648.2 ft) |
| Observation (63PPM/ 19PPF) | Wide: 35.0 m (114.9 ft) Tele: 77.9 m (255.7 ft) |
| Recognition (125PPM/ 38PPF) | Wide: 17.5 m (57.4 ft) Tele: 39.0 m (127.8 ft) |
| Identi cation (250PPM/ 76PPF) | Wide: 8.7 m (28.6 ft) Tele: 19.5 m (63.9 ft) |
