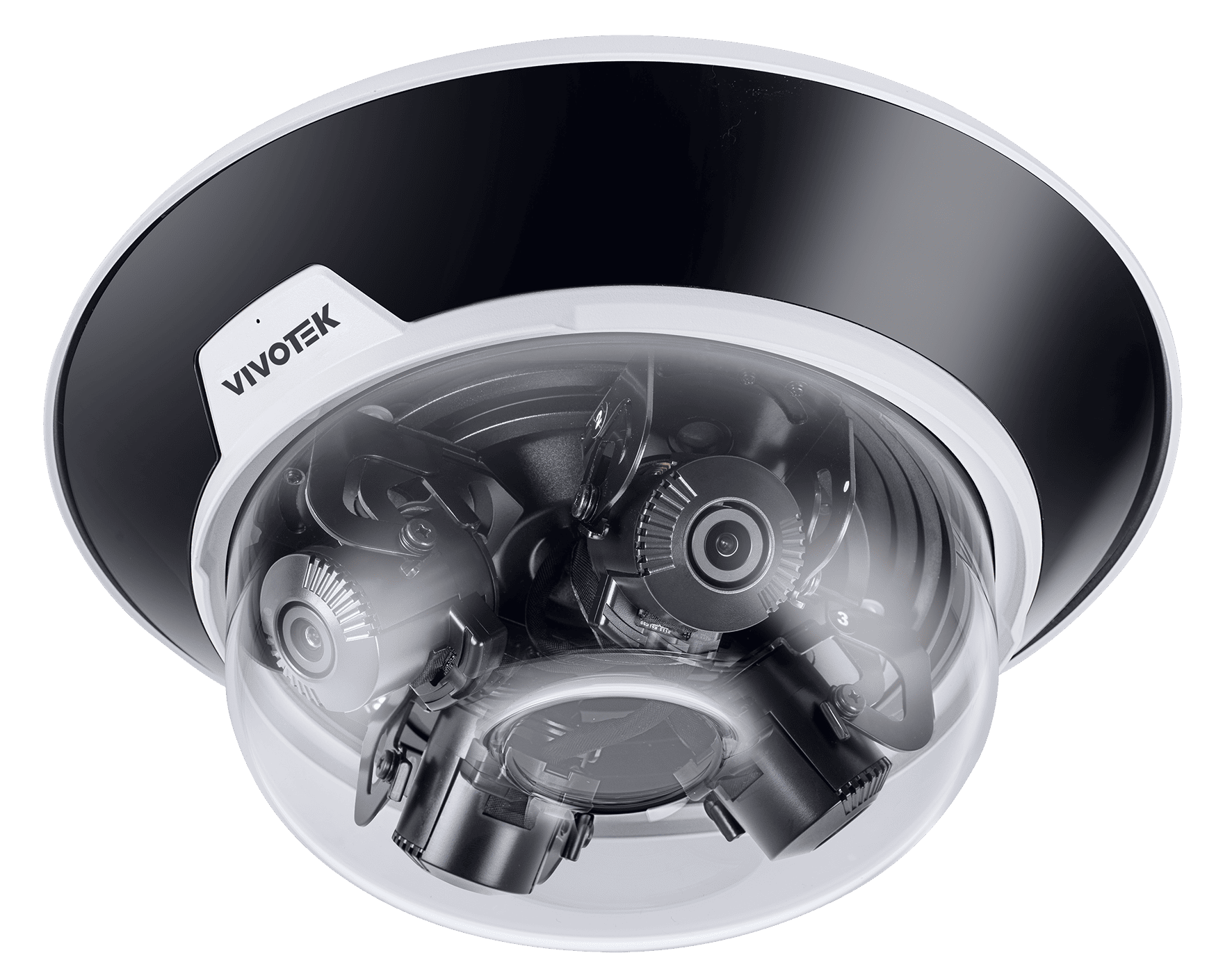

Vivotek - MA9322-EHTV-V2 - V-Series 5MPx4 AI Quad-Sensor IR Camera 3.2-7.7mm
Part number:
MA9322-EHTV-V2
Price:
- • 30 fps @ 2560x1920 per channel
- • IP66, IK10, NEMA 4X-rated Protection
- • AI-powered Smart Motion Detection and Smart VCA
- • Signed Firmware, Secure Boot, and TPM 2.0
- • Built-in IR illuminators, effective up to 30 meters
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 4GB |
| Camera Specifications | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) x 4 |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 3.2~7.7 mm |
| Aperture | F1.85~F2.4 |
| Iris Type | Fixed Iris |
| Field of View | 94° ~ 43° (Horizontal) 67° ~ 33° (Vertical) 129° ~ 54° (Diagonal) |
| Shutter Time | 1/30 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators up to 30 meters with Smart IR, IR LED*8 |
| Minimum Illumination | 0.07 lux @F1.85 (Color) 0.005 lux @F1.85 (B/W) 0 lux with IR illuminaton on |
| Tilt Range | 0° ~ 105° each lens |
| Rotation Range | ±90° each lens |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1T capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom, Micro USB* , pixel calculator *Requires Wi-Fi dongle and Micro B converter |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: 30 fps @ (2560x1920) x 4 MJPEG: 15 fps @ (2560x1920) x 4 |
| Maximum Streams | 3 streams each channel; (up to total 26 profiles) |
| S/N Ratio | 64 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control |
| Image Settings | |
| General settings | video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings |
| Illuminators | illuminators, anti-overexposure, VCA-based Smart IR III |
| Image settings | white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto, deblur) |
| Exposure | BLC, HLC, exposure control (exposure level, exposure time, gain control ), AE speed adjustment, WDR |
| Focus | zoom, focus Privacy mask (Color, Mosaic) Pixel calculator Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way audio (Full duplex)* * Requires AO-006 cable |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone External microphone input* External line output* * Requires AO-006 cable. |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 20 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management, certificate management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 BaseTX/1000 Base-T Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T , M supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction Attribute Extraction People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Human face Bestshot, Re-Search Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart VCA - Group 1 Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection) Smart VCA - Group 2 Unattended object detection, Missing object detection, Crowd detection |
| Application available with a license | Smart VCA - Group 3 Running detection, Parking Violation Detection, Restricted Zone Detection *Support for more analytic applications and a free trial, please visit the VIVOTEK website. |
| RealSight Engine | Smart IR III, Deblur, WDR, White Balance, Exposure Control |
| Solution Integration | |
| VADP Package | Trend Micro (Default, 3-year free trial) |
| Video Motion Detection | Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | Audio detection*, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot * Requires AO-006 cable |
| Event Action | Event notification via audio clip*, camera link, digital output*, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card *Requires AO-006 cable |
| General | |
| Connectors | RJ-45 cable connector for 10/100/1000 Mbps Network/PoE connectionn Audio line input* Audio line output* AC 24V power input* Digital input* Digital ouput (DO+: 12V, 10mA; DO-: 30V, Open Drain, 1A)* * Requires AO-006 cable. |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V*, IEEE 802.3 at PoE Class 4 * Requires AO-006 cable. |
| Power Consumption | Max 25.5W |
| Dimensions | ø 275 x 118 mm |
| Weight | 2.7 kg |
| Certifications | |
| EMC | CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7 |
| Safety | UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471) |
| Environment | NEMA (NEMA 250 Type 4X) , IK10 (IEC 60529), IP66 (IEC 60529) |
| IA | BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -30°C ~ 55°C (-22°F ~ 131°F) Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off) -40C ~ 50°C (-40°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | Wide: 68.5m (224.8 ft) Tele: 136.9 m ( 449.1 ft) |
| Observation (63PPM/ 19PPF) | Wide: 27.4m (89.9 ft) tele: 54.8m ( 179.6 ft) |
| Recognition (125PPM/ 38PPF) | Wide: 13.7m (44.9 ft) Tele: 27.4m ( 89.8 ft) |
| Identification (250PPM/ 76PPF) | Wide: 6.8m (22.3 ft) Tele: 13.7m ( 44.8 ft) |
