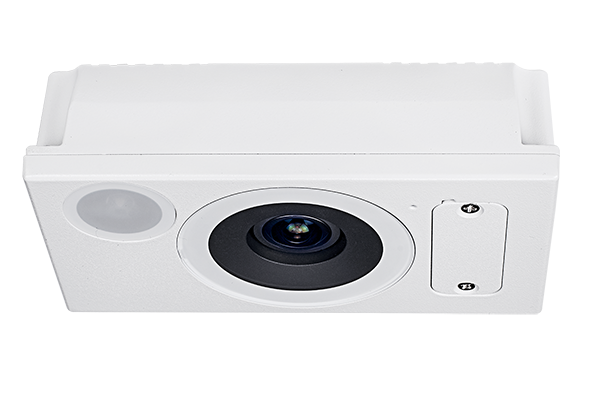

Vivotek - SC9133-RTL - AI People Counting Camera
Part number:
SC9133-RTL
Price:

VIVOTEK’s SC9133-RTL is a counting camera, equipped with our latest AI Deep Learning people detection and classification technology, accurate up to 99%. AI-based Customer Classification simultaneously counts people and distinguishes object types, ensuring only people are counted, reducing false detection rates.



SC9133-RTL generates information such as people counting, object path tracking that is applied to in-store layout improvement, promotional evaluation, staff planning, and the control of service times, providing business owners key metrics to effectively make operating decisions and increase ROI. Adults or children, single individuals or groups, can be distinguished from non-human objects such as shopping carts and strollers, providing accurate counting analytics even at the busiest and most congested times.



Human object recognition can identify which motion comes from nonhumans to avoid false counting. Beyond that, the AI neural network engine keeps enhancing the counting accuracy rate and updating AI skills such as queue management, zone counting, crowd detection, and more. It turns into a sophisticated and specialized camera that is beneficial for gathering analytics and distinguishing customer characteristics in each retail scenario.



Features:

  • AI People Counting Accuracy: up to 99%
  • Deep Learning AI Classification Capability
  • Fisheye Camera with Extended Field of View Allowing for Better Coverage
  • Wide Dynamic Range for Challenging Lighting
  • Flexible Mounting Height 1.9 to 10 m
  • Stitching Up to 7 CAMs
Technical Specifications
Device
ModelSC9133-RTL
CPUMultimedia SoC (System-on-Chip)
Flash8 GB
RAM2GB
Camera Features
Image Sensor1/2.8” Progressive CMOS
Lens TypeFixed Focal
Focal Lengthf = 1.47mm
ApertureF2.7
Field of View140° (Horizontal)
140° (Vertical)
140° (Diagonal)
Shutter Time1/60 sec. to 1/32,000 sec
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate1792 x 1792 @ 30 fps
896 x 896 @ 30 fps
448 x 448 @ 30 fps
Maximum Streams3 simultaneous streams
Report FormatJSON/XML/CSV
Audio
Audio CapabilityOne-way audio
Audio CompressionG.711, G.726
Audio InterfaceBuilt-in microphone
Network
ProtocolsIPv 4, IPv 6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP,
NTP, DNS,DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
General
ConnectorsRJ45 (through a M12 to RJ45 cable)
M12 A-code 12-pin f o
LED IndicatorSystem power and status indicator
Power InputPoE IEEE 802.3af Class 3
DC 9-48V
Power ConsumptionPoE: Max. 12.5W
DC: Max. 13.3W
Name
Description
Size
Downloads
File
Datasheet
0.1mb
