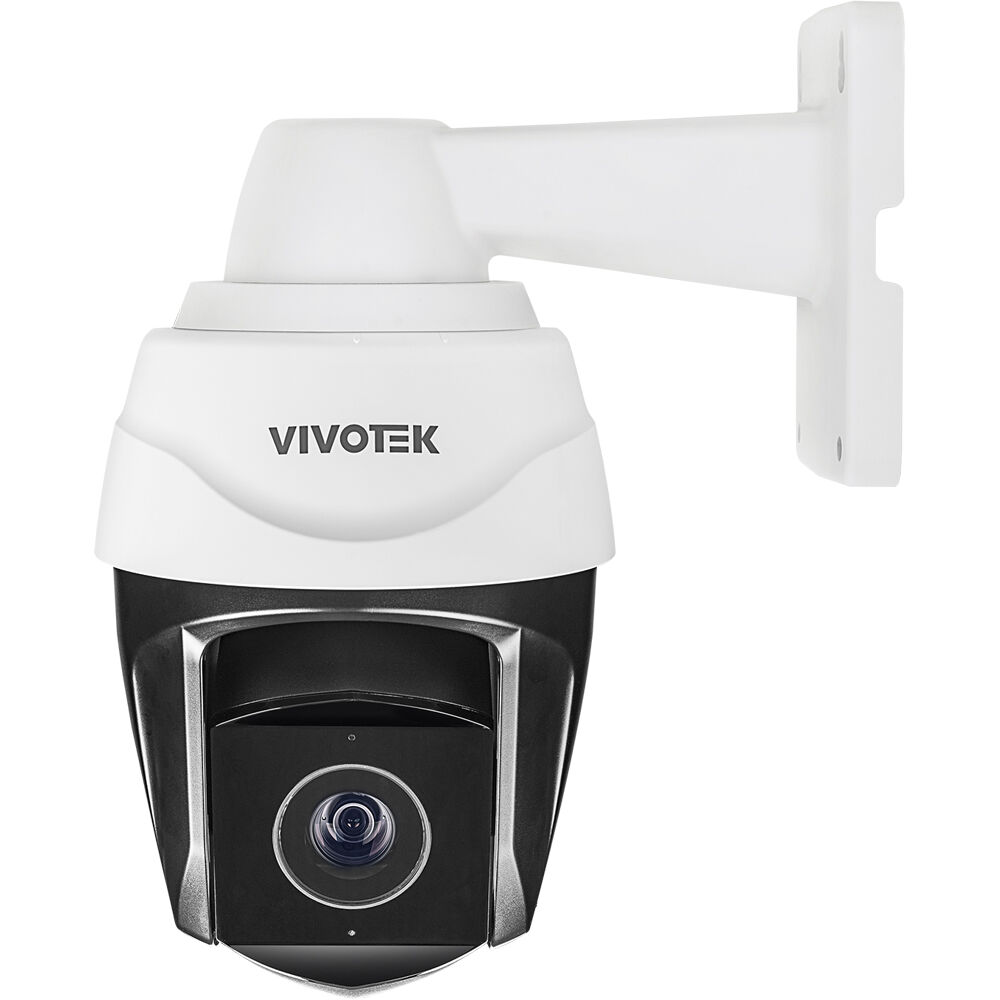

Vivotek - SD9384-EHL - 5MP 30X Zoom H.265 WDR Pro NEMA 4X Outdoor PTZ Speed Dome
Part number:
SD9384-EHL
Price:
SD9384-EHL is VIVOTEK's latest professional IR speed dome camera (PTZ) with 5MP resolution, excellent for video surveillance in wide coverage areas such as airports, city surveillance, and manufacturing facilities. SD9384-EHL is equipped with 200M IR illuminators and a 30x optical zoom to gain more details in any scene. The smart IR technology allows broad coverage FOV and highly uniform IR intensity while at the same time avoiding hotspots.
Video surveillance in big areas has the potential for many incidents, SD9384-EHL's built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track the suspected person automatically in real time.
SD9384-EHL's camera body is protected with IP66, IK10 and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40℃ to 60℃ (-40°F to 140°F) for operation in extreme weather conditions.
MP 30X Zoom H.265 WDR Pro NEMA 4X Outdoor PTZ Speed Dome, 200 M Smart IR, 4.94~148.24mm Lens, 30 fps @ 2560x1920, 120dB WDR Pro, 360° Continuous Pan, IP66 & IK10-rated NEMA4X Housing, -40°F~140°F Wide Temperature Range for Extreme Weather Conditions, PoE
Features:
- 30 fps @ 2560x1920
- 30x Optical Zoom, Auto Focus
- 360° Continuous Pan, -20° to 90° (auto flip) Tilt
- 200M IR with Smart IR
- Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
- -40°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions
- EIS (Electronic Image Stabilization) for Image Stability
- Trend Micro IoT Security
- Smart Tracking Advanced for Moving People with People-based Deep Learning Technology
- NDAA Compliance
| System Information | |
| Model | SD9384-EHL |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Features | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | 30x Optical Zoom, Auto Focus |
| Focal Length | f = 4.94 ~ 148.24 mm |
| Aperture | F1.3 ~ F4.6 |
| Iris Type | DC-iris |
| Field of View | 54.1° ~ 1.9° (Horizontal) 41.2° ~ 1.4° (Vertical) 65.7° ~2.4° (Diagonal) |
| Shutter Time | 1 sec. to 1/100,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR Illuminators up to 200 meters with Smart IR, IR LED*8 |
| Minimum Illumination | 0.03 lux @ F1.3 (Color) 0.005 lux @ F1.3 (B/W) 0 lux with IR illumination on |
| Pan Speed | Preset speed: 450°/s |
| Pan Range | 360° endless |
| Tilt Speed | Preset speed: 450°/s |
| Tilt Range | -20° to 90° (auto flip) |
| Preset Locations | 256 preset locations |
| Pan/Tilt/Zoom Functionalities | 32x digital zoom (4x on IE plug-in, 8x built in) Auto Pan mode Auto Patrol mode Mechanical Auto flip |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 30 fps @ 2560x1440 60 fps @ 1920x1080 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 74 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bitrate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, HLM, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus; Privacy mask; Scheduled profile settings; Pixel calculator |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | External line input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | Capable of connecting 10 Base-T/100 Base-TX/1000 Base TX(RJ-45) Ethernet cable *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| Smart Tracking Advanced | Smart tracking Advanced (Default, license embedded; including intrusion detection, loitering detection, line crossing detection, face detection) |
| VADP Package | Smart Tracking Advanced, Trend Micro IoT Security (3-year free trial), Stratocast |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card; trigger track, trigger patrol, move to preset |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps PoE network connection Audio line input Audio line output DC 48V power input AC 24V power input Digital input*2 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC 48V, IEEE 802.3 bt Class 6 PoE (Simultaneous Power Redundancy Supported) |
| Power Consumption | PoE: Max. 51W/26W (IR on/off) DC 48V: Max. 51W/26W (IR on/off) AC 24V: Max. 51W/26W (IR on/off) |
| Dimensions | 256 x 336 mm |
| Weight | 7.1 kg |
| Certifications | EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X); IA: BIS (IS 13252), BSMI |
| Operating Temperature | Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F) Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Wall mount bracket, Quick installation guide, alignment sticker, screw pack, desiccant bag, waterproof accessory bag, conduit ring, terminal block |
| DORI (EN 62676-4 Standard) | |
| Detect (25PPM/ 8PPF) | Wide: 104.1 m (341.5 ft) Tele: 2969.8 m (9743.4 ft) |
| Observe (63PPM/ 19PPF) | Wide: 41.3 m (135.5 ft) Tele: 1178.5 m (3866.4 ft) |
| Recognize (125PPM/ 38PPF) | Wide: 20.8 m (68.2 ft) Tele: 594 m (1948.6 ft) |
| Identify (250PPM/ 76PPF) | Wide: 10.4 m (34.1 ft) Tele: 297 m (974.3 ft) |
