SECO-LARM - RM-R100-TBQ - Wall-Mount Help Button
Part number:
RM-R100-TBQ
Price:

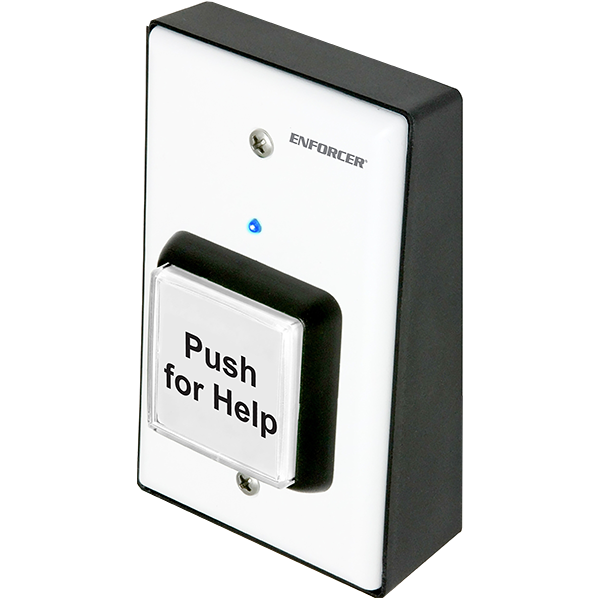

Wall-Mount Help Button, Clear 2" square button with "Push for Help" message, desktop or wall mounted, powered by 9VDC Battery (included).



The ENFORCER Wireless Help Button can be used to wirelessly expand the 1-Room Occupancy Monitor Kit (RM-R100-KB1Q) with a service/help button. The button is perfect for placing on a desktop, mounting on walls, or any other location where it is difficult to run wires. The Wireless Help Button combines the very best of SECO-LARM, flexible wireless solutions and reliable access control.



Features:

  • Built-in RF transmitter:
    – Powered by 9VDC (battery included)
    – Range up to 100ft (30m)*, 433.92MHz
    – Over 68 billion (6.8×1010) possible codes
    – LED to indicate transmission and low battery
  • Desktop or wall mounted
  • ABS Plastic single-gang plate with surface mount back box
  • Clear 2″ square button
  • “Push for Help” message plate included
  • Requires RM-R100-RB1Q, or SK-910 (433.92MHz) series receiver
DimensionsDesktop:4-5/8″x2-7/8″x1-7/8″ (117x73x48 mm), Wall Mount:4-5/8″x2-7/8″x2″ (117x73x50 mm)
Weight6-oz (178g)
Operating Frequency433.92MHz
Operating voltage9VDC
Battery LifeUp to four (4) years (60 uses per day)
Maximum Range100′ (30m)*
Name
Description
Size
Downloads
File
Manual
0.5mb
