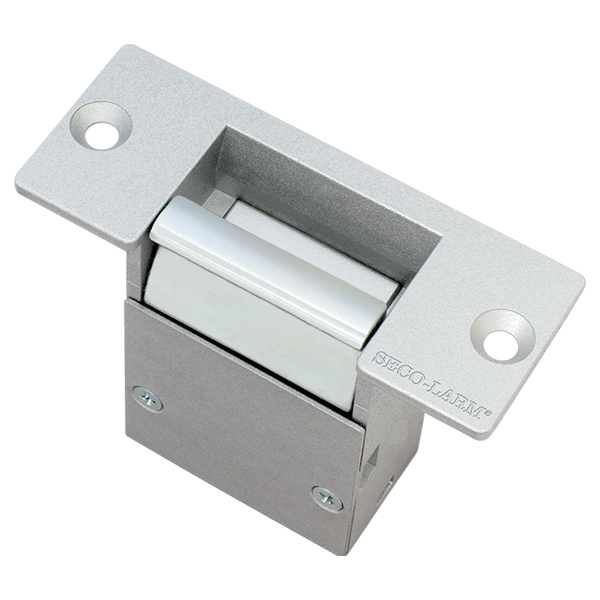

SECO-LARM - SD-995A-D3Q - Weatherproof Door/Gate Strike, 12 VAC/VDC operation, fail-secure operation, one piece cast body, low current draw: 280mA@12VDC/140mA@24VDC, compatible with most locksets, extra wide keeper 15/8”
Part number:
SD-995A-D3Q
Price:
Weatherproof Door/Gate Strike
Features:
- Unique design accommodates both wood and metal doors
- Fail-secure operation
- Reversible for right or left-handed doors
- Zinc alloy body
- Corrosion-resistant case and moving parts
- Complete mounting hardware included
- Operating voltage: 12~24 VAC/VDC
- 1,034-lb (470kg) Holding force
- Tested to 250,000 cycles
- Current draw: 500mA@12VDC, 1A@24VDC
- Strike depth: 9/16” (15mm)
- Faceplate size: 31/2“x17/16“x1/8” (89x35x3 mm)
- Weather-resistant IP42
| Operating Voltage | 12~24 VAC/VDC |
| Operation | Fail-Secure |
| Current Draw | 500MA@12VDC , 1A@24VDC |
| Keeper Width | 1-5/8″ (41mm) |
| Design | Reversible non-handed |
| Strike Depth | 9/16″ (15mm) |
| Operating Temperature | 14°~113° F (-10°~45° C) |
| Operating Humidity | 0~95% RH (no condensation) |
| Dimensions | 3-1/2″x1-7/16″x1/8″ (89x35x3 mm) |
| Holding Force | 1,034-lb (470kg) |
| IP Rating | Weather-resistant IP42 |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
