SECO-LARM - MVE-AN1W1-01Q - Wireless IR Repeater System Transmit an IR signal up to 656’ (200m) IR Frequency of 20~60KHz
Part number:
MVE-AN1W1-01Q
Price:
Wireless IR Repeater System. Transmit an IR signal up to 656’ (200m). IR frequency of 20~60KHz.

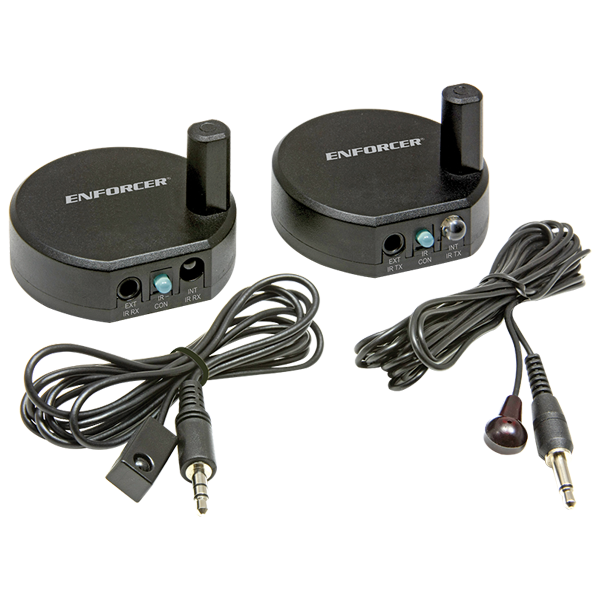

The ENFORCER Wireless IR Repeater Kit extends the IR signal from your remote control to remotely operate audio/visual equipment kept in a separate location or in a closed cabinet. The Wireless IR Repeater Kit allows for wireless transmission of IR signals over 915MHz RF, and RF interference is minimized with frequency hopping technology. The wide band IR receiver is capable of receiving IR signals from many types of remotes.
Features:
- Allows for wireless IR transmission up to 656ft (200m)
- Transmits IR signals wirelessly over 915MHz RF
- Frequency hopping technology minimizes RF interference
- Compatible with 20~60 kHz IR systems
- IR Confirmation LED
- 5VDC Power jack (2x AC adapters included)
- Compact size for easy mounting near audio/video equipment
- Includes one 10ft (3m) wired IR emitter and one 5ft (1.5m) wired IR receiver
| LED Indicators | IR Confirmation (blue) |
| Operating Voltage | 5 VDC |
| IR Receiver frequency | ±35° Off Axis |
| IR Emitter frequency | 20~60 kHz |
| IR Emitter Angle | ±11° Off Axis |
| Connector type | Power: 1.3mm Coaxial center-pin-positive; Wired IR Receiver: 1/8″ (3.5mm) TRS Mini-plug, Wired IR Emitter: 1/8″ (3.5mm) Mono mini-plug |
| Maximum extended range | 656′ (200m) |
| Operating humidity | 10~90% |
| Operating temperature | -4°~140° F (-20°~60° C) |
| Power supply | 5VDC/500mA |
| Dimensions | Transmitter/Receiver:1-3/4″x1-3/4″x1-1/4″ (45x45x31 mm) Wired IR Receiver:1-3/16″x1/4″x3/8″ (20x7x10 mm) Wired IR Emitter: 5/8″x3/8″x3/16″ (16x10x5 mm) |
| Cable length | Wired IR Receiver: 5′ (1.5m) Wired IR Emitter: 10′ (3m) |
| RF Frequency | 915MHz |
