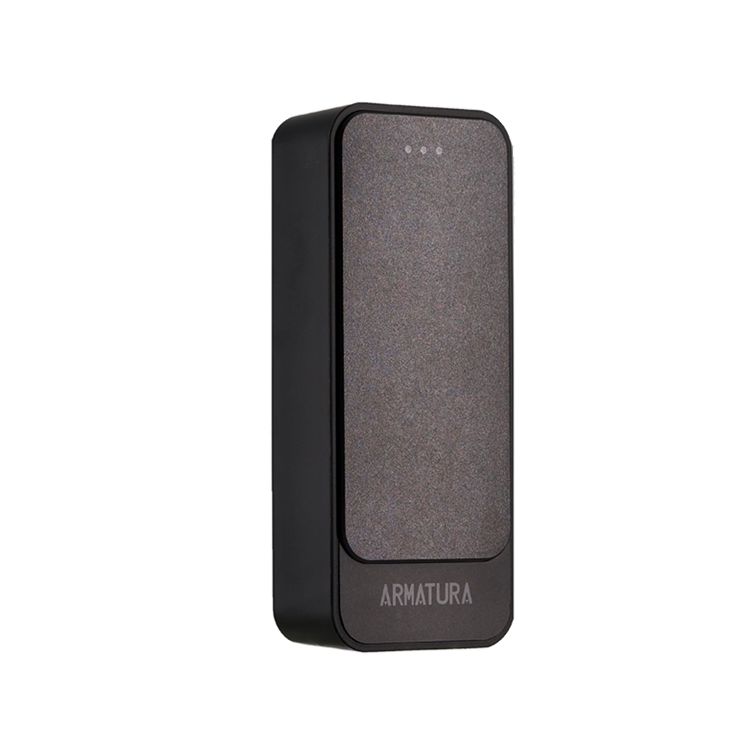

ZKteco USA - AMT-EP10C-HF - Readers Powered by Armatura - Bluetooth Plus 13.56MHz
Part number:
AMT-EP10C-HF
Price:

The EP10C mullion reader series is one of the most compact multi-tech RFID readers in the market, which supports over 100 RFID card types and both mobile NFC and Bluetooth (Low Energy) and is suited for mullion-mount door installations or any flat surface mounting. Optional single-gang & Asian / European / Single-gang box spacing are available for all kinds of installation environments.



Mobile Credential Capability:

The Armatura ID mobile app offers a consistent user experience across iOS & Android platforms. Opening doors by simply presenting your smartphone to the reader. Supports both NFC and Bluetooth communication methods, extending mobile access functions to almost all smartphone users.



Enhanced Cybersecurity:

Open Supervised Device Protocol (OSDP) supports communication between control panel and reader. Guarantees advanced data protection using certified crypto chips with EAL5+ standards. Supports AES128 end-to-end encryption between control panel and reader, ensuring all communications are under secure.



Ultimate Protection (IP68 & IK10 & UL94-V0):

IK10 Vandal-proof and IP68 Water & Dustproof protection levels enable operation under any installation environment. IK10 vandal-proof protection level enhances protection ability against malicious physical attacks. -30°C to 70°C / -22°F - 158°F operating temperature enables operation under extreme weather conditions. UL 94V-0 standards for flammability ensures burning combustion is not sustained for more than 10 seconds after applying a controlled flame.

Operating Frequency / Standards 125 kHz
13.56 MHz: ISO14443A types A & B, ISO15693
2.4 GHz Bluetooth
Functions
  • RFID and Bluetooth

Communications & Panel Connection

Wiegand (Up to 128bits SCP Secure Communication)
OSDP (v2.2) via RS485

Reading Distance

13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)

Data Protection

AES128 (Secured Communication between Reader & Controller)
Secure Data Storage in EAL 5+ Certified Crypto Chip

Visual Indicator

  • RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)

Audio Indicator

  • Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)

Operating Temperature

Operating Temperature

  • -22°F - 158°F /-30°C to 70°C

Power Requirement / Power Supply

  • 9 VDC to 24 VDC

Certifications
  • -22°F - 158°F /-30°C to 70°

Dimensions Standard Cover: 1.89" W x 4.52" H x 0.97" D (48 x 114.8 x 24.7mm)
Gangbox Cover: 3.00" W x 4.84" H x 0.97" D (76.2 x 123.0 x 24.7 mm)
