Mobile Credential Capability:
The Armatura ID mobile app offers a consistent user experience across iOS & Android platforms. Opening doors by presenting your smartphone to the reader or scanning a QR code. Use your phone’s Face & TouchID functions for even more secure authentication. It supports both NFC and Bluetooth communication methods, extending mobile access functions to almost all smartphone users.
Enhanced Security:
Supporting Open Supervised Device Protocol (OSDP)guarantees secured communication between the control panels and readers. Advanced-Data protection using certi ed crypto chips with EAL5+ standard. AES128 end-to-end encryption between the control panel and reader, ensuring all communications are secure.
Ultimate Protection (IP68 & IK10 & UL94-V0):
IK10 Vandal-proof and IP68 Water & Dustproof protection levels operation under any installation environment. IK10 vandal-proof protection level enhances protection ability against malicious physical attacks. -30°C to 70°C / -22°F - 158°F operating temperature enables operation under extreme weather conditions. UL 94V-0 standards for ammability ensures burning combustion is not sustained for more than 10 seconds after applying a controlled ame.
Features:
- Designed for Advanced Security
|
Specifications |
||
|
Internal Number |
EP20CQ 125 |
EP20CKQ kHz |
|
Operating Frequency / Standards |
13.56 MHz: ISO14443A types A & B, ISO15693 2.4 GHz Bluetooth |
|
|
Functions |
RFID, Bluetooth and QR code |
|
|
Keypad |
N/A |

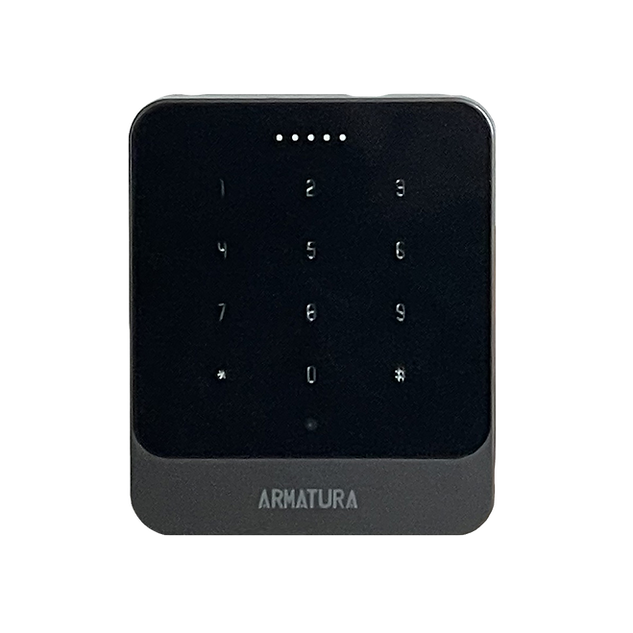

Touch Keypad |
|
QR Code Scanner |
Supported Area image (648*488 pixel array) |
|
|
QR Code Scaning Pattern |
||
|
QR Code Scan Angle |
Horizontal: 66°/ Vertical: 50° |
|
|
QR Code Scanning Print Contrast |
Print Contrast: 25% minimum reflectance difference Rotation, Pitch, Skew: 360°, +/-40°, +/-60° |
|
|
QR Code Capability |
One- imensional Code: UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13,EAN-14, EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128, Interleaved 2 of 5 code, Industrial 2 of 5 code,Matrix 2 of 5 code, Toshiba code, UK/Plessey, GS1 Two Code: QR code, PDF417, Data matrix, MicroPDF417, Aztec |
|
|
QR Code Scanning Performance* |
Narrow Width |
Depth of Field 2.0"-3.1" (5cm-8cm) 2.0"-4.7" (5cm-12cm) 2.3"-7.7" (6cm-19.5cm) 2.3"-9.8" (6cm-25cm) 2.0"-2.3" (5cm-6cm) 2.0"-3.5" (5cm-9cm) 2.0"-6.3" (5cm-16cm) 2.3"-7.9" (6cm-20cm) |
|
Communications & Panel Connection |
Wiegand (Up to 128bits SCP Secure Communication) OSDP (v2.2) via RS485 |
|
|
Reading Distance |
13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder) Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader) |
|
|
Data Protection |
AES128 (Secured Communication between Reader & Controller) Secure Data Storage in EAL 5+ Certified Crypto Chip |
|
|
Visual Indicator |
RGB LEDs (Configurable By 'Armatura Connect' Mobile APP) |
|
|
Audio Indicator |
Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP) |
|
|
Power Requirement / Power Supply |
9 VDC to 24 VDC |
|
|
Operating Temperature |
-22°F - 158°F /-30°C to 70°C |
|
|
Dimensions |
3.54" W x 4.24" H x 0.93" D (89.8 x 107.8 x 23.6mm) |
|
|
Tamper Switch |
Magnetic tamper detection system |
|
|
Certifications |
CE, FCC, RoHs3.0, WEEE，UL294 |
|
|
Suited for Asian / European / single-gang installations or any flat surface mounting |
||
|
Protection / Resistance |
Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK10 certified |
Weather & Dust Proof Protection Rating compliant with IP68 Reinforced Vandal-proof Structure IK07 |
|
UV Stability |
Nil structural degradation for the life of the reader in 3 years |
|
|
Housing Material |
Polycarbonate UL94-V0 & UL746C (F1) |
|
