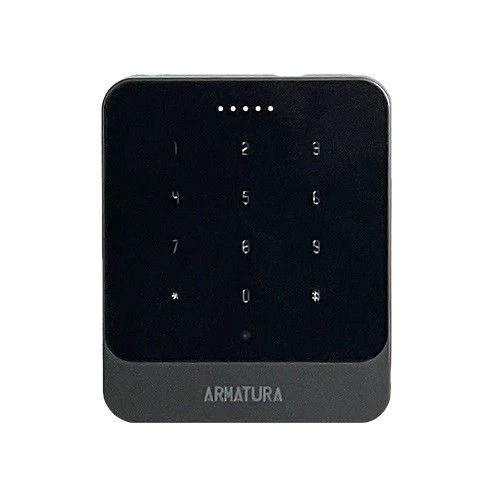

ZKTeco - AMT-EP20CKQ-M - All Weather Outdoor Multi-tech Smart Reader

Product Overview

The AMT-EP20CKQ-M is a ZKTeco single gang Bluetooth smart reader and keypad designed for compact access control installations. It supports over 100 RFID card types, mobile NFC, Bluetooth Low Energy, and password authentication through an embedded touch keypad.

Key Configuration

Single gang multi-tech access control reader with embedded keypad; supports 125kHz, 13.56 MHz, and 2.4GHz Bluetooth credentials; IP68 weatherproof and IK10 impact-resistant design.

Key Features

• Compact reader size supports thin frame doors, parking gates, fences, turnstiles, and narrow mounting spaces
• Supports over 100 RFID card types for broad credential compatibility
• Mobile NFC and Bluetooth Low Energy support enable mobile credential use
• Embedded touch keypad allows password-based authentication
• IP68 weatherproof and IK10 impact-resistant ratings support harsh indoor or outdoor environments

Technical Context

The EP20 reader series is designed as a compact multi-tech RFID and mobile credential platform for flexible access control integration. Operating frequency support includes 125kHz, 13.56 MHz, and 2.4GHz Bluetooth for compatibility with card, NFC, and Bluetooth-based credentials.

Installation Notes

The small form factor is suitable for single gang and narrow mounting locations, including door frames, gates, fences, and turnstiles. Its IP68 and IK10 ratings make it appropriate for exposed outdoor locations and demanding installation environments.
