ZKTeco - AMT-OMNI-AC30-M - Multi-Biometric Standalone Terminal with PoE

Product Overview

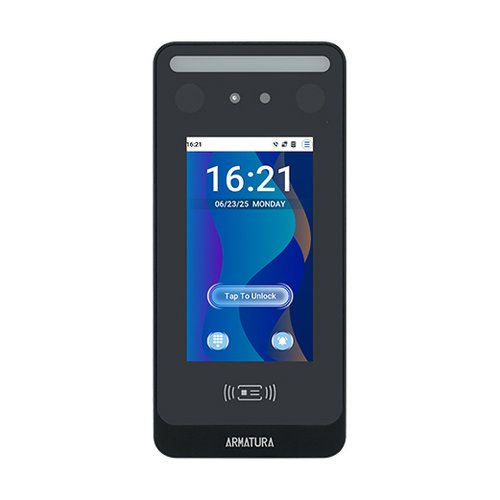

The ZKTeco AMT-OMNI-AC30 is a standalone multi-biometric reader designed for secure, touchless access control. It combines palm and face recognition with card, QR code, and PIN authentication in a modern metal enclosure with tempered glass, a 5 in. touchscreen, and IP66 weatherproof protection.

Key Configuration

Standalone biometric access reader with palm and face recognition; supports 125 kHz and 13.56 MHz credentials; 9V-24V input voltage with IP66 protection and -20°C to 60°C / -4°F to 140°F operating temperature.

Key Features

• Multi-biometric technology combines palm and face recognition
• Supports card, QR code, PIN, palm, and face authentication methods
• Compatible with EM, IC Card, HID Prox, HID iCLASS, DESFire, FeliCa, SEOS, and related card types
• OSDP V2.1.7 over RS-485 with AES-128 encryption supports secure communication
• 5 in. high-resolution touchscreen and intuitive UI improve user interaction

Technical Context

The OmniAC30 uses visible and NIR infrared recognition technology with advanced deep learning algorithms for palm and face authentication. It supports palm recognition from 7 in. to 15.7 in. / 18 cm to 40 cm and face recognition from 15.7 in. to 47.2 in. / 40 cm to 120 cm, with anti-spoofing protection and mask-capable face recognition.

Installation Notes

The reader supports multiple mounting types, including single gang, European box, and Asian box installations, with speed gate mounting accessories available. PoE support can reduce cabling requirements, and the IP66-rated design supports outdoor use in rain, dust, wind, cold, and hot environments.
