ZKTeco - ATL2D-Core Kit - 2-Door Panel Kit with (2) KR503H Readers and (25) HID Cards
Product Overview
The ZKTeco ATL2D-Core Kit is a professional 2-door access control package designed for multi-credential security environments. Built around the ZKTeco Atlas-200 edge-based access control panel, it provides web-based management without requiring dedicated software installation.
Key Configuration

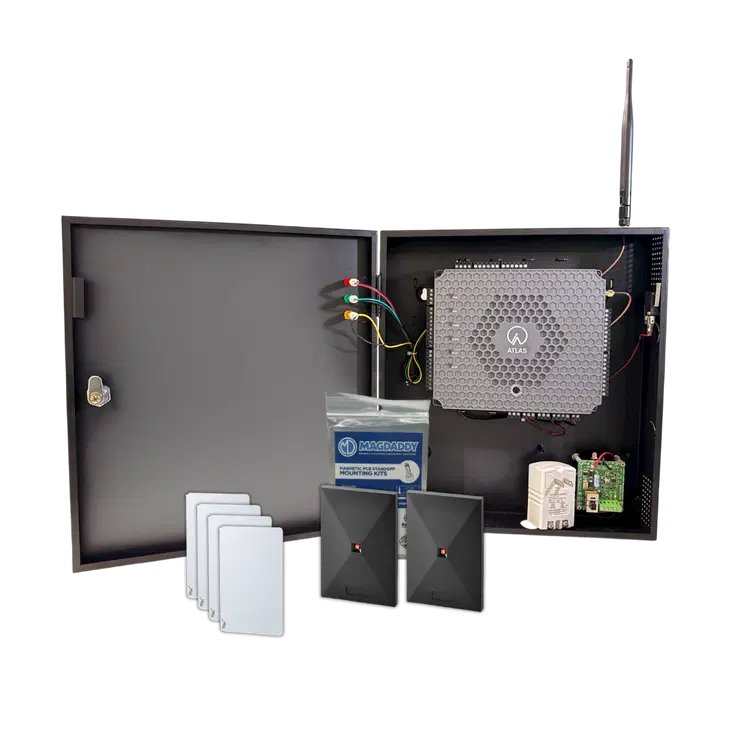

2-door access control kit with Atlas-200 access control panel; includes metal enclosure, ATL-PWR-1215 12V power supply module with battery charger, two KR503H waterproof RFID mullion readers, and 25 HID Prox cards.
Key Features
• Controls up to two physical doors from an edge-based Atlas-200 panel
• Native web-based interface eliminates the need for dedicated software installation
• Includes ATL-PWR-1215 12V power supply module with integrated battery charger
• Comes with two KR503H waterproof RFID mullion readers supporting 125kHz HID Prox credentials
• Includes 25 thick HID Prox cards for user credential deployment
Technical Context
The ATL2D-Core Kit is designed as a turnkey access control solution for small and mid-sized facilities requiring secure two-door management. Its edge-based architecture allows access control administration through the built-in web interface rather than a separate server-based software platform.
Installation Notes
The kit includes the Atlas-200 access control panel housed in a metal enclosure, along with the power module, readers, and proximity cards needed for a typical two-door deployment. Product dimensions and weight were not included in the supplied data.
| Capacity & Database | |
| User Capacity | 5,000 unique cardholders |
| Event Log Capacity | 10,000 local transactions (with unlimited archive downloads via the integrated web tool) |
| Scalability | Connects up to 21 panels (maximum 84 doors) under a single primary IP address via its embedded software |
| Hardware Interfaces | |
| Doors Controlled | 2 physical doors |
| Total Readers Supported | 4 readers (supports Wiegand, RS-485, or OSDP communication) |
| Reader Compatibility | Optimized for ZKTeco KR Series readers and 3rd-party 125kHz or 13.56MHz readers |
| Hardware Inputs | 5 inputs (2 exit buttons, 2 door sensors, 1 auxiliary input) |
| Hardware Outputs | 3 Form-C relays (2 lock control relays, 1 auxiliary output relay) |
| Connectivity & Software | |
| Communication Protocols | TCP/IP, Wi-Fi, OSDP, and Wiegand |
| Embedded Software | Built-in web application (accessible via Chrome, Edge, and Firefox without external software installations) |
| Mobile Management | Supported by the ZKey Atlas Mobile Application for remote management and virtual Bluetooth/QR credentials |
| Electrical & Physical Attributes | |
| Power Supply | 12V DC, 3A recommended (Panel features integrated Power over Ethernet / PoE capability) |
| Battery Charger | Integrated into the included ATL-PWR-1215 module |
| Enclosure Type | Wall-mountable, powder-coated aluminum |
| Kit Shipping Weight | 10 lbs (4.2 kg) |
| Enclosure Box Dimensions | 14" × 2.5" × 12" (380 mm × 80 mm × 280 mm) |
| Main Circuit Board Dimensions | 7.75" × 6.73" (197 mm × 171 mm) |
