Product Overview
The ZKTeco ATL4D-Basic Kit is a web-based multi-door access control bundle configured around the Atlas-400 Series 4-door panel. It requires no central software because the embedded web application runs directly on the primary control board, supporting browser-based management for four-door access control deployments.
Key Configuration

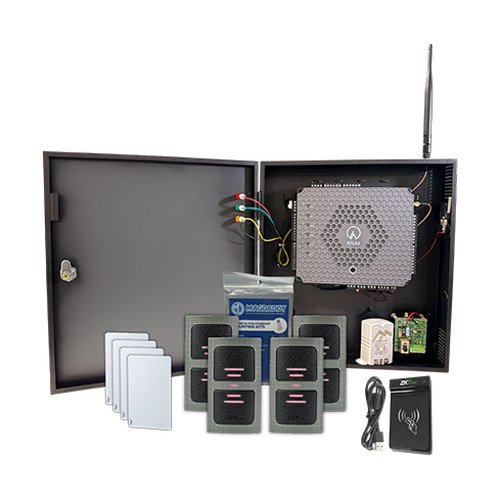

4-door Atlas access control kit with Atlas-400 network control board; includes four KR500E outdoor-rated Wiegand proximity RFID readers, 25 125kHz proximity cards, and a metal enclosure with 12V DC power module.
Key Features
• Built around the Atlas-400 Series panel for four-door access control
• Embedded web application eliminates the need for central software installation
• Includes four KR500E outdoor-rated Wiegand proximity card readers
• Comes with 25 125kHz proximity cards for user credential deployment
• Power supply is housed in a metal enclosure box with 12V DC power module
Technical Context
The ATL4D-Basic Kit uses the Atlas-400 network control board as its primary access control platform. Its browser-based management approach is designed to simplify administration by keeping control functions on the panel rather than relying on a separate central software server.
Installation Notes
The standard kit includes one Atlas-400 panel, four KR500E readers, 25 proximity cards, and a 12V DC power module in a metal enclosure. The included Wiegand readers and proximity cards support typical four-door access control installations.
| Technical Specifications | |
| Door Capacity | Controls up to 4 doors natively and expands to 84 doors using 21 total secondary panels |
| User Capacity | Stores up to 5,000 unique users inside the local memory database |
| Log Capacity | Holds 10,000 transaction events offline with unlimited digital archive exports |
| Supported Readers | Connects up to 8 total readers via Wiegand or secure OSDP protocols |
| Network & Inputs | Communicates via TCP/IP, Wi-Fi, and RS-485 Houses 9 total inputs (4 exit buttons, 4 door sensors, 1 auxiliary) |
| Control Relay Outputs | Includes 5 Form-C relays (4 designated for locks, 1 designated for auxiliary) |
| Power Requirement | Operates on 12V DC, 3A, and supports Power over Ethernet (PoE) injection |
| Dimensions and Weight | |
| Bundle Enclosure Size | 14 × 2.5 × 12 inches / 380 × 80 × 280 mm (L × W × H) |
| Internal Control Board Size | 7.75 × 6.73 inches / 197 × 171 mm |
| Total Kit Weight | Approximately 10 lbs / 4.2 kg |
