One-door Atlas Prox Series Access Control panel is designed & engineered in the U.S. Atlas panels are fast & simple to install because they require no software. Instead, the panels have an embedded full-featured access control web application. Atlas panels also use minimal wiring because they support both Power over Ethernet (PoE) and Wi-Fi communication.
Features:
There are 3 options when ordering Atlas panels:
1) individual panels can be ordered as spares or replacements;

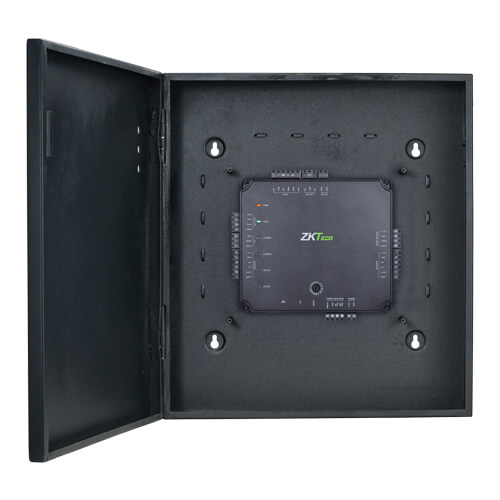

2) as part of a "bundle" (including a metal enclosure & power supply) or
3) as part of a "kit" (including a bundle, prox card readers, prox card enrollment reader, prox cards and request to exit buttons).
| Specification | |
| Model | Atlas-100 |
| Number of Doors Controlled | One Door |
| Number of Readers Supported | 2 (Wiegand or OSDP Readers) |
| Types of Readers Supported | ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers |
| Number of Inputs | 3 (1 Exit Button, 1 Door Sensor, 1 Aux) |
| Number of Outputs | 2 (1 Form C relay for lock and 1 Form C relay for Aux output) |
| User Capacity | 5,000 |
| Events Database Capacity | 10,000 transactions plus unlimited archive downloads |
| Weight | 9 lbs (3.8 kg) |
| Communication | TCP/IP, Wi-Fi, Wiegand, OSDP |
| Browsers Supported | Chrome, Firefox, Edge |
| Enclosure | Powder Coated Aluminum |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 3A (PoE) |
| Dimensions (Bundle Only) | 14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H) |
| Dimensions (Board Only) | 6.3in. X 4.17in. (160mm X 140mm) |
