ZKTeco USA - Atlas160-1 Door Kit - One-door Atlas Bio Series Access Control Panel
Part number:
Atlas160-1 Door KIT
Price:

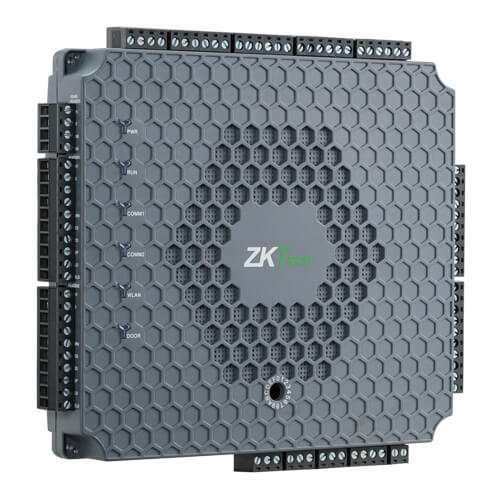

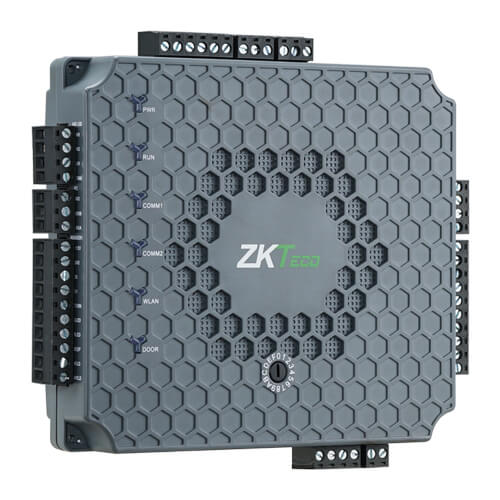

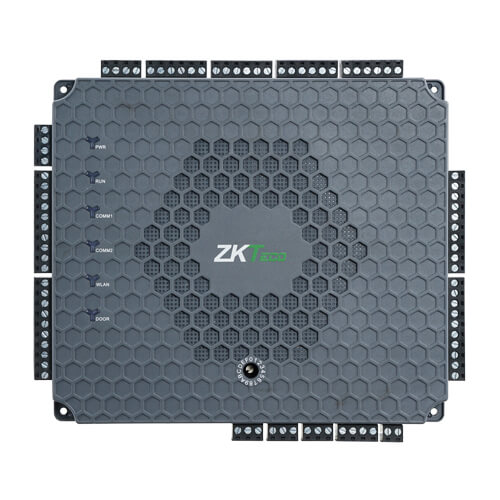

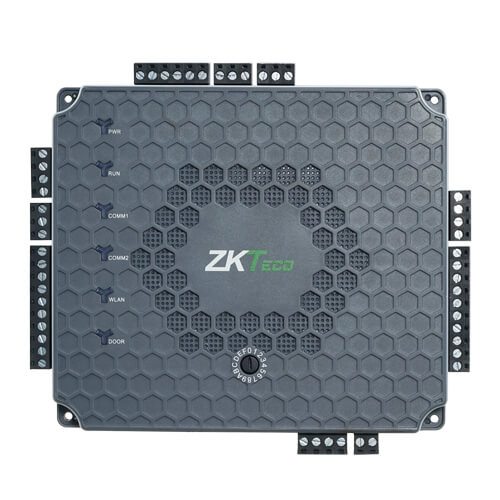

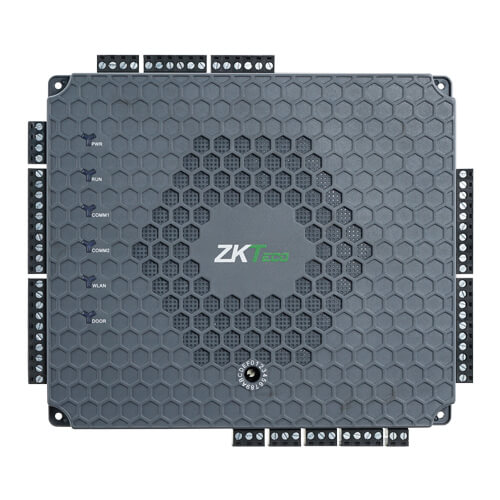

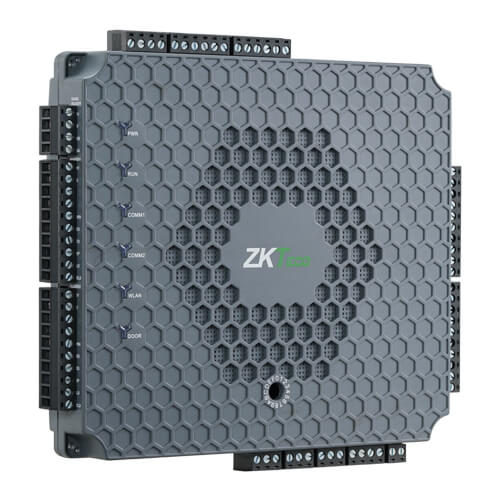

One-door Atlas Bio Series Access Control panel is designed & engineered in the U.S. Atlas panels are fast & simple to install because they require no software. Instead, the panels have an embedded full-featured access control web application. Atlas panels also use minimal wiring because they support both Power over Ethernet (PoE) and Wi-Fi communication. Atlas Bio Series Access Control panels support biometric readers, including fingerprint recognition.
Features:
There are 3 options when ordering Atlas panels:
- 1) individual panels can be ordered as spares or replacements;

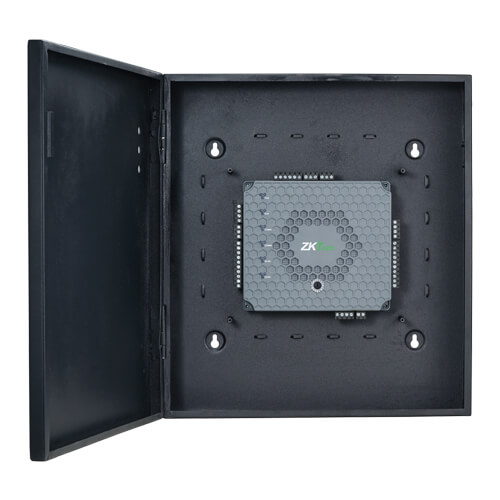

- 2) as part of a "bundle" (including a metal enclosure & power supply) or
- 3) as part of a "kit" (including a bundle, fingerprint readers, fingerprint enrollment reader and request to exit buttons).
| Model | Atlas-160 |
| Number of Doors Controlled | One Door |
| Number of Readers Supported | 2 (Wiegand or OSDP Readers) 2 (Fingerprint Readers) |
| Types of Readers Supported | ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers |
| Number of Inputs | 4 (Exit Device, Door Contact and 2 Aux) |
| Number of Outputs | 2 (1 Form C relay for lock and 1 Form C relay for Aux output) |
| User Capacity | 5,000 (Fingerprint and/or card users) |
| Fingerprint Template Capacity | 5,000 (up to 10 fingerprints per user) |
| Logs | 10,000 transactions plus unlimited archive downloads |
| Weight | 9 lbs (3.8 kg) |
| Communication | TCP/IP, Wi-Fi, Wiegand, OSDP |
| Browsers Supported | Chrome, Firefox, Edge |
| Enclosure | Powder Coated Aluminum |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 3A (PoE) |
| Dimensions (Bundle Only) | 15 in (L) X 3.15 in (W) X 11in (H). 380 mm(L) X 80 mm(W) X 280 mm(H) |
| Dimensions (Board Only) | 6.3 in. X 4.17 in. (160 mm X 106 mm) |
