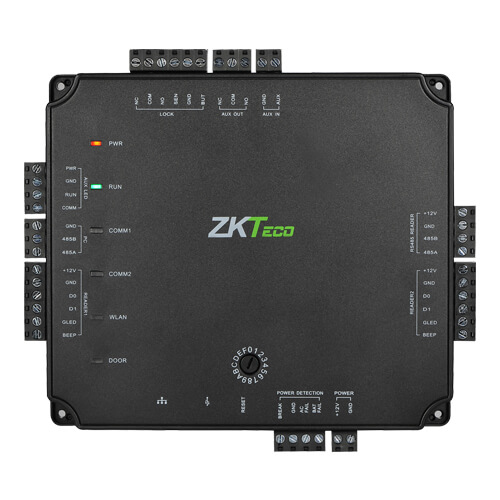

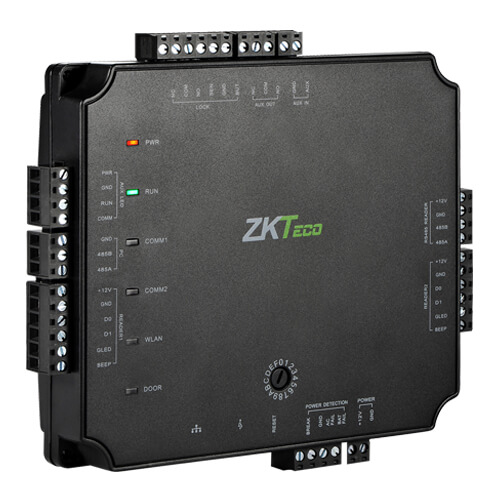

ZKTeco USA - Atlas200 - 2-Door Access Control Panel (Atlas Prox Series)
Part number:
Atlas200
Price:

Two-door Atlas Prox Series Access Control panel is designed & engineered in the U.S.  Atlas panels are fast & simple to install because they require no software. Instead, the panels have an embedded full-featured access control web application. Atlas panels also use minimal wiring because they support both Power over Ethernet (PoE) and Wi-Fi communication.



Features:

  • Advanced Access Control Features: No software required. Built-in Web Application provides advanced access control features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.
  • Door Control and More: User-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which can be controlled by a switch.
  • Capacity: 1 Primary panel can support up to 20 Secondary panels. Maximum 84 doors can be supported when using all 21 panels. Each Atlas Prox Series panel can store up to 5,000 users and 10,000 transactions plus unlimited archive downloads.
  • Choice of Readers: Atlas Series supports ZKTeco KR series & any 3rd-party readers which communicate with Wiegand or OSDP communication protocols.
  • Communication: Atlas Series panels communicate securely over wired & wireless TCP/IP networks using SSL/TLS. Supported browsers include Google Chrome, Mozilla Firefox and Microsoft Edge.
  • Mobile App: Numerous convenient features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
  • Power: Atlas Series uses a 12V DC 3A power supply and also supports Power over Ethernet (PoE).
ModelAtlas-200
Number of Doors ControlledTwo Doors
Number of Readers Supported4 (Wiegand or OSDP Readers)
Types of Readers Supported

ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz

Wiegand, OSDP and RS-485 readers

Number of Inputs5 (2 Exit Buttons, 2 Door Sensors, 1 Aux)
Number of Outputs3 (2 Form C relays for locks and 1 Form C relay for Aux output)
User Capacity5,000
Events Database Capacity

10,000 transactions

plus unlimited archive downloads

Weight10 lbs (4 kg)
CommunicationTCP/IP, Wi-Fi, Wiegand, OSDP
Browsers SupportedChrome, Firefox, Edge
EnclosurePowder Coated Aluminum
MountingWall Mount
Recommended Power Supply12V DC, 3A (PoE)

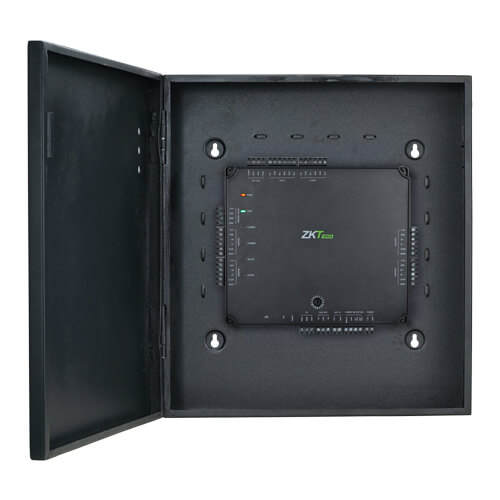

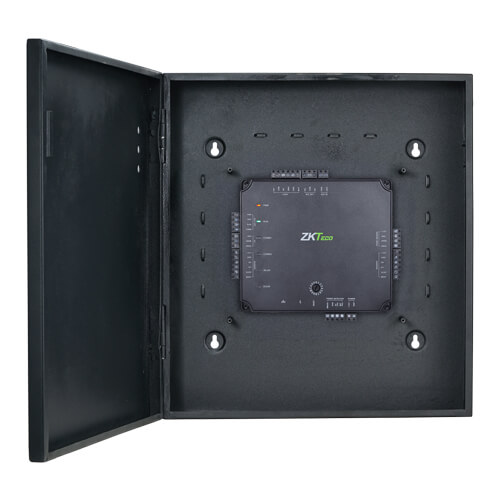

Dimensions (Bundle Only)

14in. X 2.5in. X 12in.

380mm(L) X 80mm(W) X 280mm(H)

Dimensions (Board Only)7.75in. X 6.73in. (197mm X 171mm)
