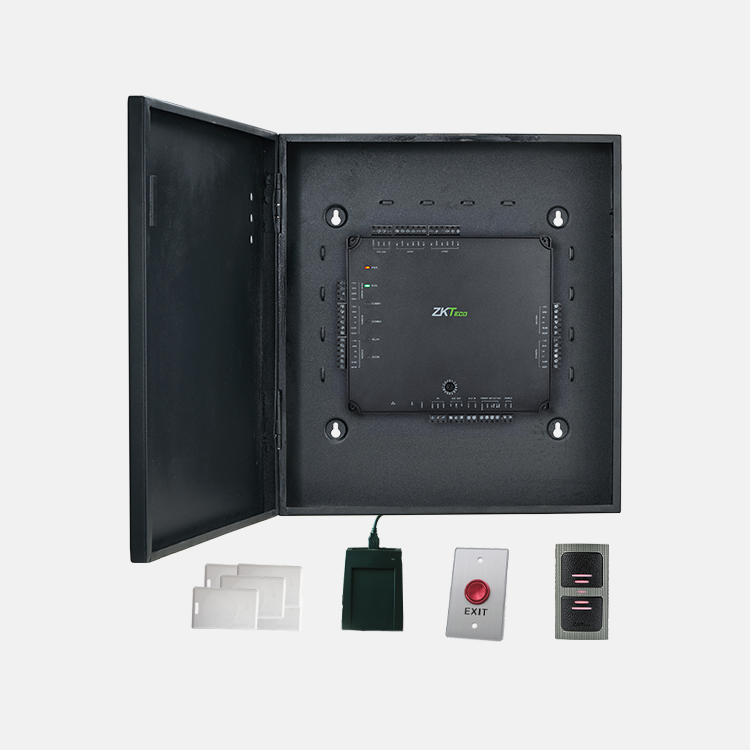

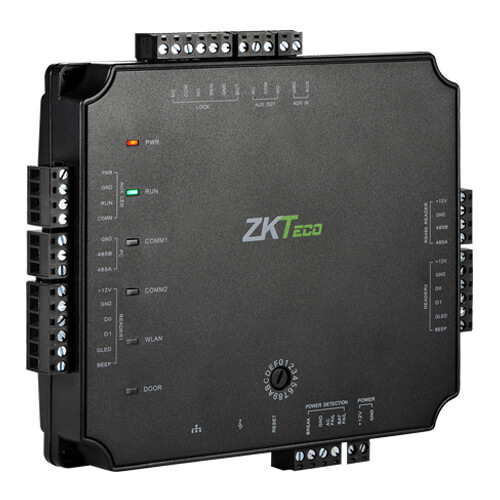

One, Two, or Four-Door Atlas Series Touchless Access Control Kits are designed & engineered in the U.S. Atlas panels are fast & simple to install because they require no software. Instead, the panels have an embedded full-featured access control web application. Atlas panels also use minimal wiring because they support both Power over Ethernet (PoE) and Wi-Fi communication.
| Model |
Atlas260-Bluetooth Kit |
|
Number of Doors Controlled |
Two Door |
|
Number of Readers Supported |
2 (Wiegand or OSDP Readers) |
|
Types of Readers Supported |
ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers |
|
Number of Inputs |
3 (1 Exit Button, 1 Door Sensor, 1 Aux) |
|
Number of Outputs |
2 (1 Form C relay for lock and 1 Form C relay for Aux output) |
|
User Capacity |
5,000 |
|
Events Database Capacity |
10,000 transactions plus unlimited archive downloads |
|
Weight |
9 lbs (3.8 kg) |
|
Communication |
TCP/IP, Wi-Fi, Wiegand, OSDP |
|
Browsers Supported |
Chrome, Firefox, Edge |
|
Enclosure |
Powder Coated Aluminum |
|
Mounting |
Wall Mount |
|
Recommended Power Supply |
12V DC, 3A (PoE) |
|
Dimensions (Bundle Only) |
14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H) |
|
Dimensions (Board Only) |
6.3in. X 4.17in. (160mm X 140mm) |
