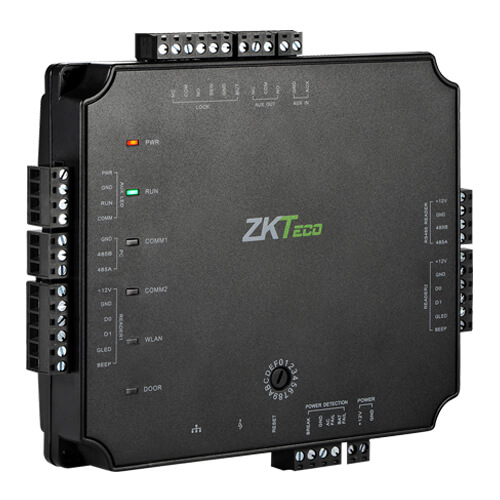

ZKTeco USA - Atlas400-4 Door Kit - Atlas Prox Series Kit 4 Door Access
Part number:
Atlas400-4 Door KIT
Price:

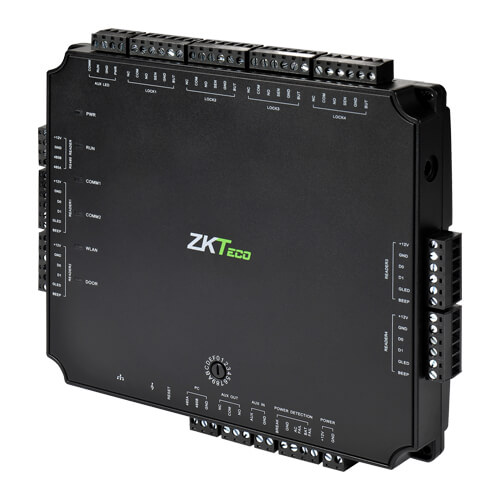

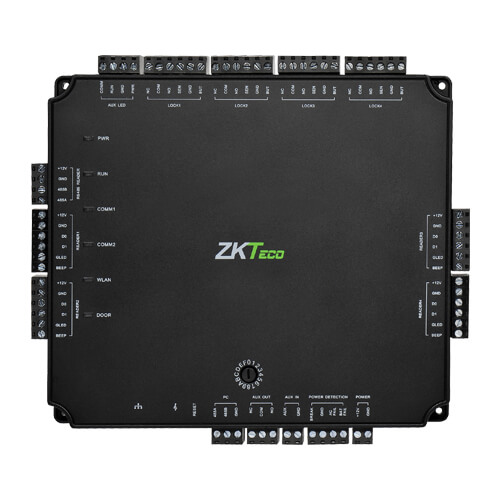

Four-door Atlas Prox Series Access Control panel is designed & engineered in the U.S. Atlas panels are fast & simple to install because they require no software. Instead, the panels have an embedded full-featured access control web application. Atlas panels also use minimal wiring because they support both Power over Ethernet (PoE) and Wi-Fi communication.
Features:
- There are 3 options when ordering Atlas panels:
- 1) individual panels can be ordered as spares or replacements;

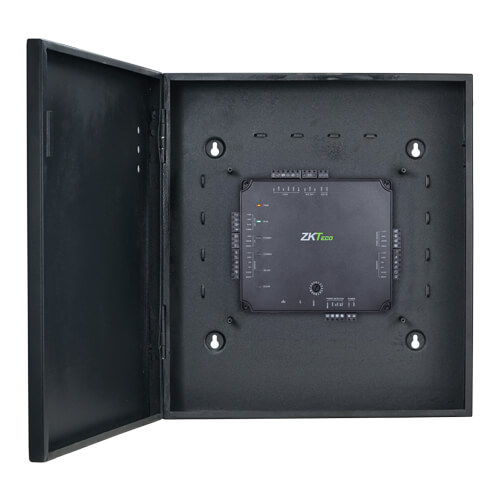

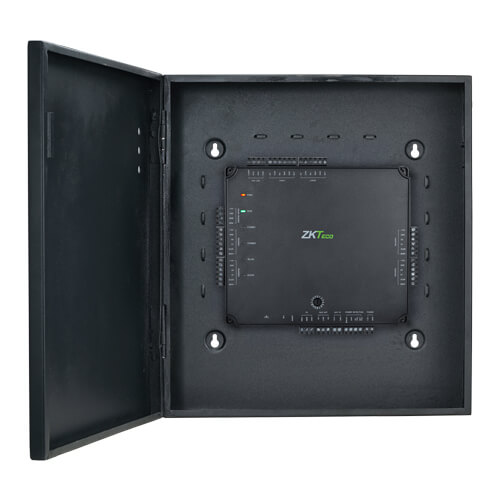

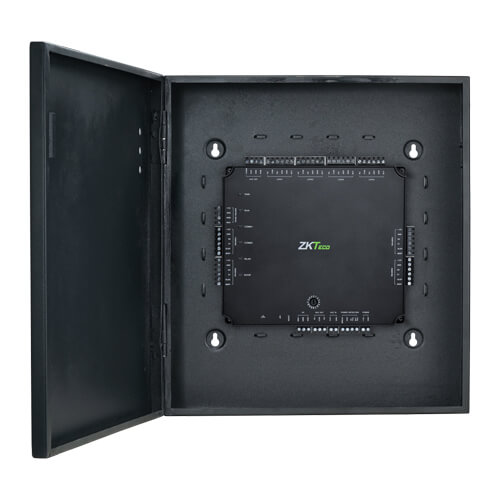

- 2) as part of a "bundle" (including a metal enclosure & power supply) or

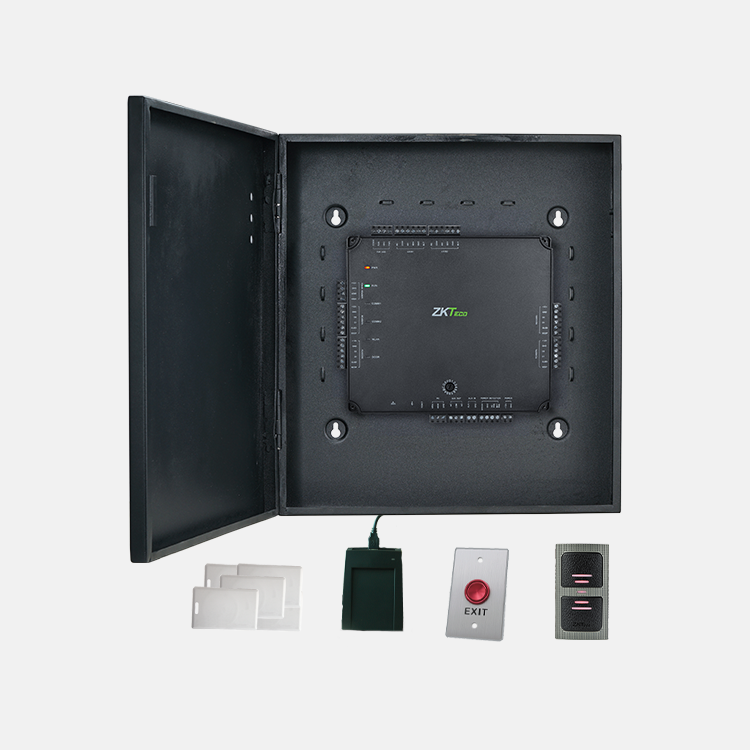

- 3) as part of a "kit" (including a bundle, prox card readers, prox card enrollment reader, prox cards and request to exit buttons).
| Specification | |
| Model | Atlas-400 |
| Number of Doors Controlled | Four Doors |
| Number of Readers Supported | 8 (Wiegand or OSDP Readers) |
| Types of Readers Supported | ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers |
| Number of Inputs | 9 (4 Exit Buttons, 4 Door Sensors, 1 Aux) |
| Number of Outputs | 5 (4 Form C relays for locks and 1 Form C relay for Aux output) |
| User Capacity | 5,000 |
| Events Database Capacity | 10,000 transactions plus unlimited archive downloads |
| Weight | 10 lbs (4 kg) |
| Communication | TCP/IP, Wi-Fi, Wiegand, OSDP |
| Browsers Supported | Chrome, Firefox, Edge |
| Enclosure | Powder Coated Aluminum |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 3A (PoE) |
| Dimensions (Bundle Only) | 14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H) |
| Dimensions (Board Only) | 7.75in X 6.73in. (197mm X 171mm) |
