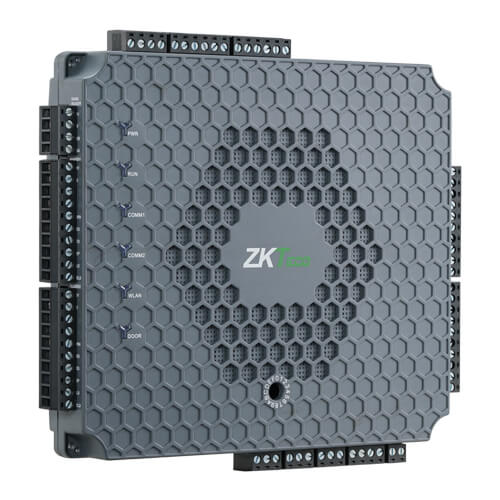

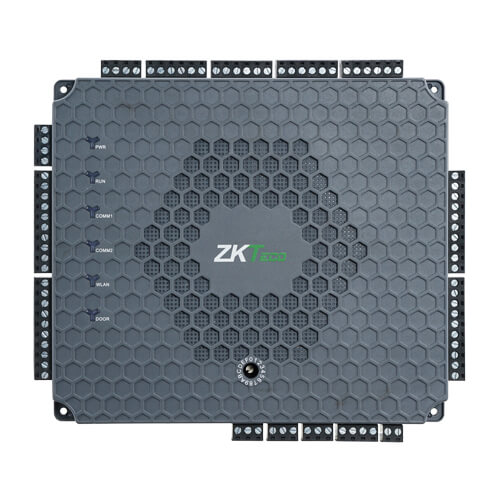

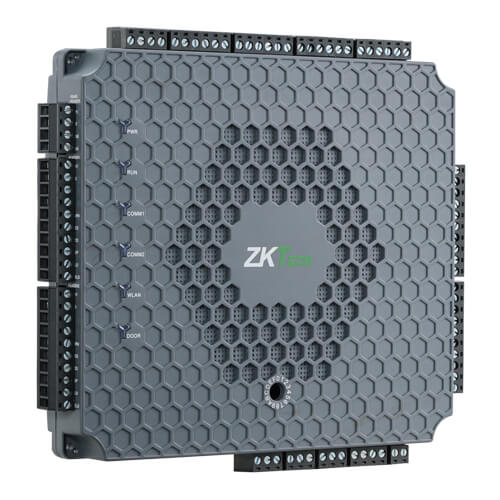

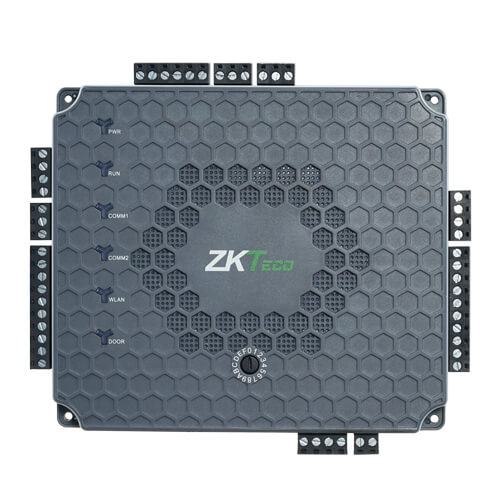

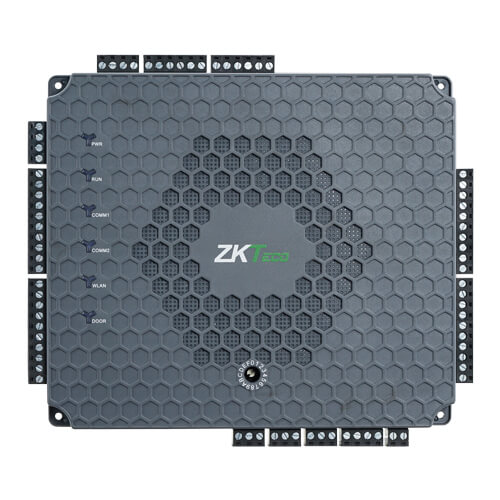

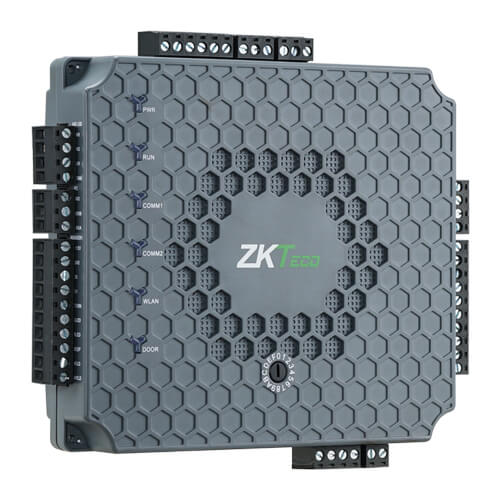

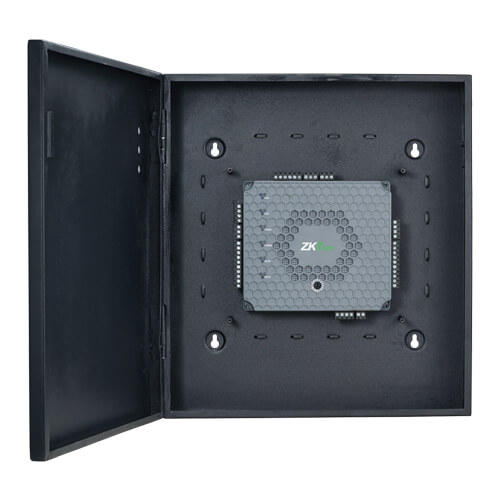

Four-door Atlas Bio Series Access Control panel is designed & engineered in the U.S. Atlas panels are fast & simple to install because they require no software. Instead, the panels have an embedded full-featured access control web application. Atlas panels also use minimal wiring because they support both Power over Ethernet (PoE) and Wi-Fi communication. Atlas Bio Series Access Control panels support biometric readers, including fingerprint recognition.
There are 3 options when ordering Atlas panels:
1) individual panels can be ordered as spares or replacements;

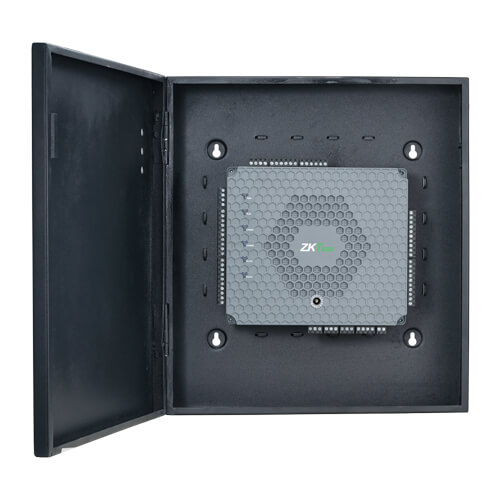

2) as part of a "bundle" (including a metal enclosure & power supply) or

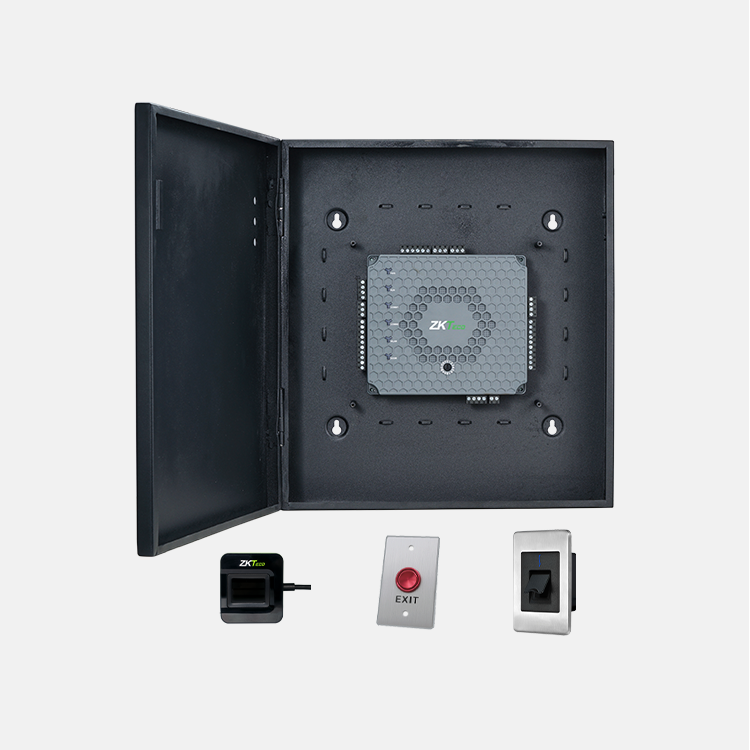

3) as part of a "kit" (including a bundle, fingerprint readers, fingerprint enrollment reader and request to exit buttons).
|
Model |
Atlas-460 |
|
Number of Doors Controlled |
Four Doors |
|
Number of Readers Supported |
8 (Wiegand or OSDP Readers) 8 (Fingerprint Readers) |
|
Types of Readers Supported |
ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP, and RS-485 readers |
|
Number of Inputs |
10 (4 Exit Devices, 4 Door Contacts and 2 Aux) |
|
Number of Outputs |
5 (4 Form C relays for locks and 1 Form C relay for Aux output) |
|
User Capacity |
5,000 (Fingerprint and/or card users) |
|
Fingerprint Template Capacity |
5,000 (up to 10 fingerprints per user) |
|
Logs |
10,000 transactions plus unlimited archive downloads |
|
Weight |
10 lbs (4.2 kg) |
|
Communication |
TCP/IP, Wi-Fi, Wiegand, OSDP |
|
Browsers Supported |
Chrome, Firefox, Edge |
|
Enclosure |
Powder Coated Aluminum |
|
Mounting |
Wall Mount |
|
Recommended Power Supply |
12V DC, 3A (PoE) |
|
Dimensions (Bundle Only) |
15 in (L) X 3.15 in (W) X 11in (H). 380 mm(L) X 80 mm(W) X 280 mm(H) |
|
Dimensions (Board Only) |
7.75in. X 6.73in. (197mm X 171mm) |
