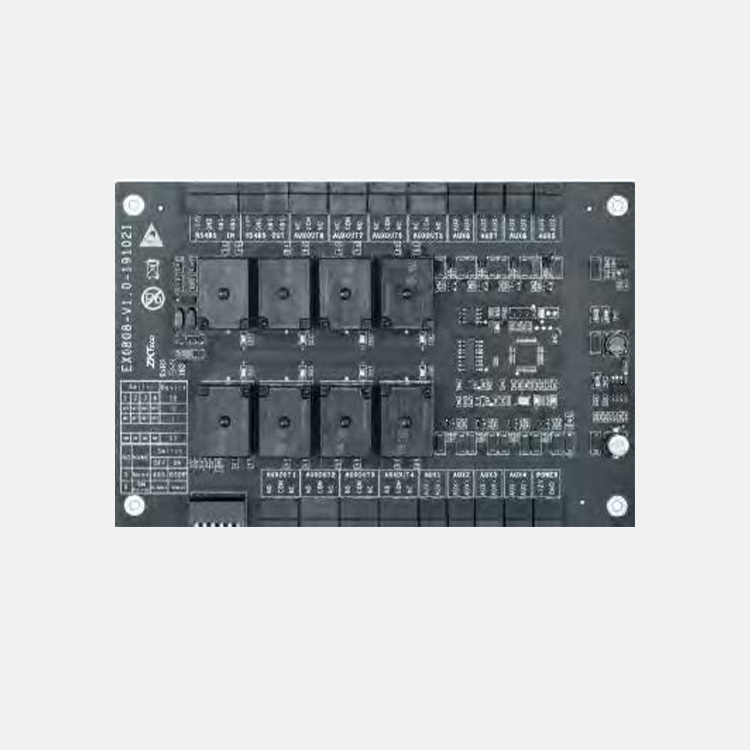

ZKTeco USA - EX0808 - 8-relay I/O Expansion Board for US-inBio-Pro Panels
Part number:
EX0808
Price:
EX0808-OSDP is an I/O board which supports OSDP communication protocol. By having 8 AUX inputs and 8 AUX outputs on a single board, EX0808-OSDP lowers implementation costs by eliminating the need for multiple I/O devices.
EX0808-OSDP is designed exclusively for ZKTeco InBio Pro access control panels. Each inBio Pro panel can support up to 8 (eight) EX0808-OSDP boards (maximum 64 AUX inputs and 64 AUX outputs).
Features:
- Aux Input: 8
- Aux Output Relay: 8
- Communication: RS485 and OSDP (version 2.1.7)
- Baud Rate for RS-485 / OSDP: 9600 bps
- RS485 / OSDP Address: Set by DIP switch
- Max. Support: 8 I/O boards per C3/inBio panel
| Aux Inputs | 8 |
| Aux Output Relays | 8 |
| Communication | RS485 and OSDP (version 2.1.7) |
| Baud Rate | RS485/ OSDP: 9600 bps |
| Address | Set by DIP switch |
| Dimension (L x W) | 6.29 x 4.17 in (160mm x 106mm) |
| Net Weight | 0.44 lbs (0.2kg) |
| Support | Up to 8 boards per 1 InBio Pro panel |
| Power Consumption | 3.6W @ 12V DC 300mA |
| Power Supply | 12V DC 300mA |
| Operating Temperature | 32°F - 113°F (0°C - 45°C) |
| Operating Humidity | 20% to 80% |
| Output Relay | 3 Form-C relays |
