FLR-UHF-30
Part number:
FLR-UHF-30
Price:

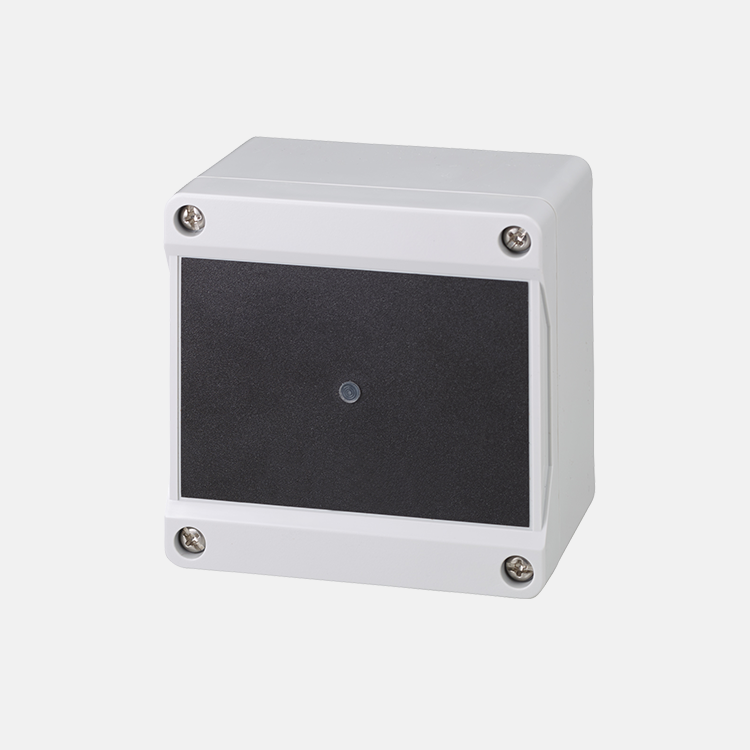

FLR-UHF-30 is an outdoor IP67-rated 433MHz long range receiver designed specifically for ZKAccess long-range fobs.With its 100 feet (30M) read-range, FLR-UHF-30 provides users convenient long range authentication for many applications including door access, vehicular gate access and any application in which the user no longer needs to have their credential held in close range to the
reader.


FLR-UHF-30 has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).



Features:

  • Read 433 MHz Proximity ID fob with 100ft range
  • Wiegand output 26-bit & range up to 100 ft
  • IP Code: IP67
  • Gross Weight: 3 lbs
  • Product Dimensions: 3.3"x3.3"x1.9"
  • Package size: 6"x6"x6"
  • Frequency 433MHz
  • Read Range Up to 100 feet (30M)
  • Material Die-casting aluminum shell, Antenna panel with engineering plastics
  • Color Off-white plastic enclosure with black label
  • Indoor & Outdoor Installation Electronics sealed in weather resistant epoxy potting
  • Communication Interface Wiegand (26 bit industry standard and custom Wiegand formats)
  • Power Supply 12V DC nominal
  • Current 80 mA typical 12V DC
  • IP-rating 65
  • Operating Temperature –40° F to 149° F (–40° C to +65° C)
  • Operating Humidity 15% to 90% relative humidity non-condensing
  • Dimensions (H×W×D) 3.3″ W × 3.3″ H × 1.9″ D (84 mm × 84 mm × 48.3 mm)
  • Certifications FCC, CE, ICC, UL Standard 294
Specifications
TechnologyLong range
Supported MediaZKAccess 2 & 4-button long range fobs (sold
Frequency433MHz
RangeUp to 100 feet
TransmissionRolling code + encryption
ColorOff-white plastic enclosure with black label
Communication InterfaceWiegand formats)
Communication InterfaceWiegand formats)
Indoor & Outdoor InstallationElectronics sealed in
weather-resistant, UL listed enclosure
Wiegand (26-bit industry standard & custom
Current80 mA typical @ 12V DC
Power Supply12V DC nominal
