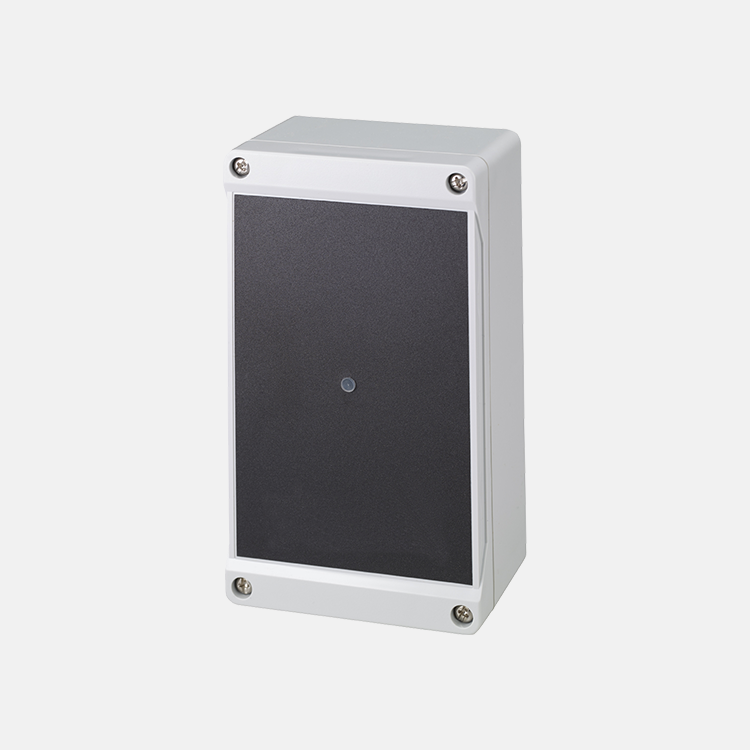

The FLR-UHF-60 long range access control reader can read key fobs from up to 200 feet away. This outdoor reader provides authentication for applications including door access, vehicular gate access, and any additional long range application.
Features:
- Read 433MHz Proximity ID fob with 100ft range
- Wiegand output 26-bit & range up to 200 ft
- IP Code: IP67
- Gross Weight: 3lbs
| Specifications | |
| Technology | Long range |
| Supported Media | ZKAccess 2 & 4-button long range fobs (sold |
| Frequency | 433MHz |
| Range | Up to 200 feet |
| Transmission | Rolling code + encryption |
| Color | Off-white plastic enclosure with black label |
| Communication Interface | Wiegand formats) |
| Communication Interface | Wiegand formats) |
| Indoor & Outdoor Installation | Electronics sealed in weather-resistant, UL listed enclosure Wiegand (26-bit industry standard & custom |
| Current | 120 mA typical @ 12V DC |
| Power Supply | 12V DC nominal |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
