ZKTeco USA - FR1500-A-M - Fingerprint Reader with Mifare Card Reader
Part number:
FR1500-A-M
Price:

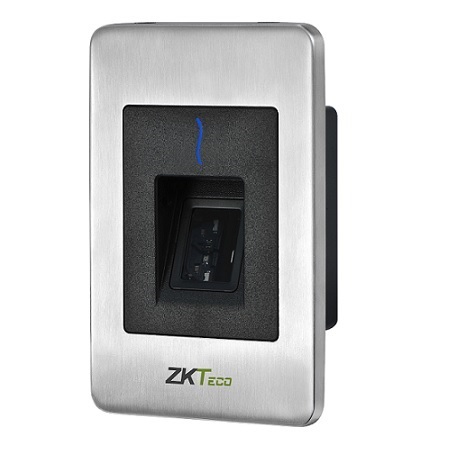

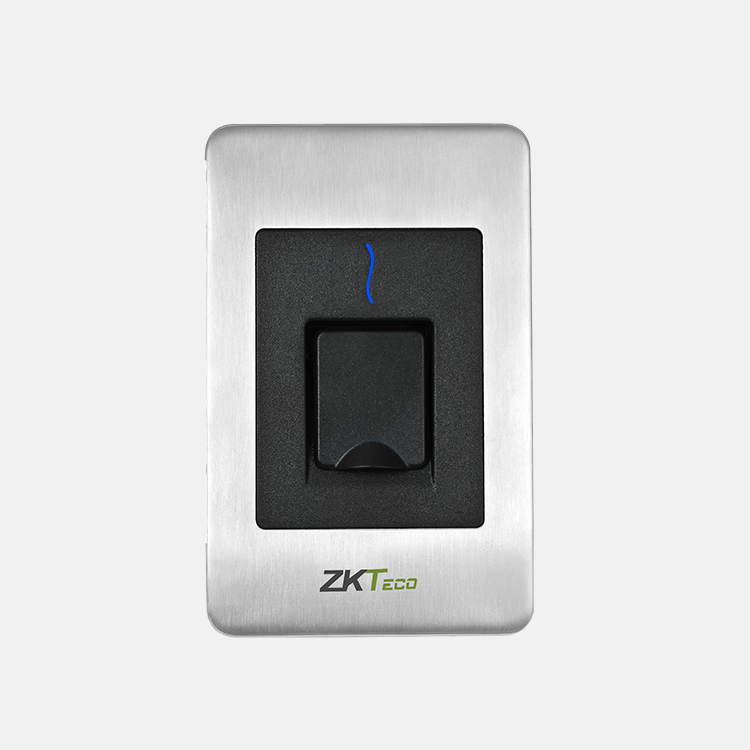

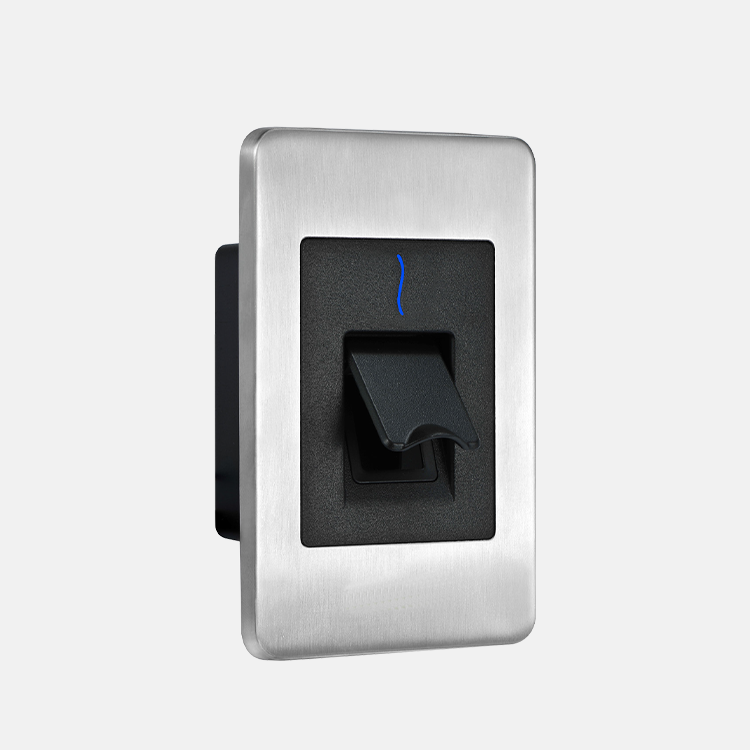

FR1500-A is a single-gang flush-mounted fingerprint access control slave reader. It is compatible with ZKTeco USA Atlas Bio access control panels only. Conveniently connects to RS485 port.



Features:-

Sleek Stylish Form Factor:

Flush-mounted stainless steel enclosure with slim and attractive design is ideal for both indoor & outdoor installations where aesthetics are very important.

Communication:

FR1500A connects only via RS485 to Atlas Bio (x60 Series) panels. FR1500A does not support Wiegand.

Easy Operation:

Once a user places their finger on the FR1500A their fingerprint is subsequently matched by the Atlas Bio (x60 Series) panel. FR1500A also provides Visual indication for acceptance/rejection of the fingeprint (and/or prox card) of the users.

Standard Reader:

- SilkID fingerprint sensor

- Built-in ZKTeco prox card reader

- Options for HID and Mifare card readers



Communication RS485 only to Atlasx60 panels
Power 12V DC, 1A
Environment

Operating Temp: 14° to 113° F (-10° to 45° C)

Operating Humidity: 20% to 80%

Optional Card Reader Mifare Card, HID 125 kHz card, HID iClass card
Dimensions

Length: 4.8 inches (121.3 mm)

Width: 3 inches (77.3 mm)

Depth: .3 inches (7.1 mm) exposed

1.5 inches (30.9 mm) behind wall
