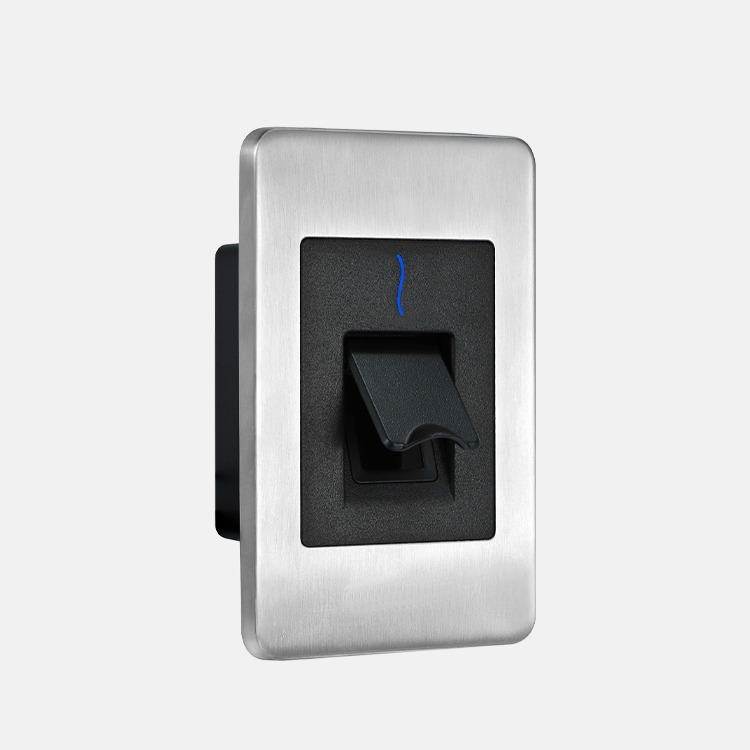

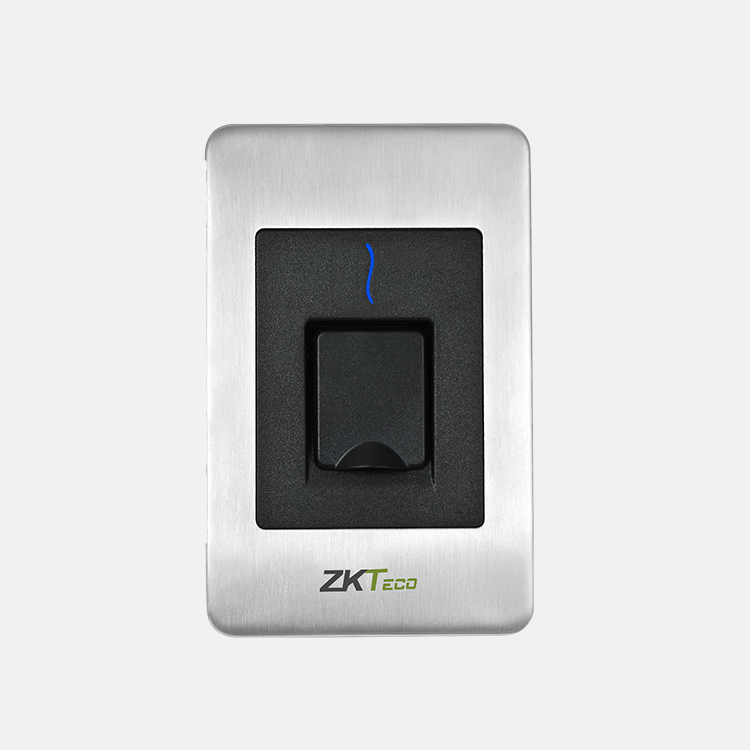

ZKTeco USA - FR1500-Mifare - Flushmount Slave Fingerprint Reader with Mifare Card Reader
Part number:
FR1500-Mifare
Price:

Single-gang Flush-mounted Fingerprint slave reader for InBio & InBioPro panels, only.



Features:

Sleek Stylish Form Factor: Flush-mounted single-gang stainless steel enclosure with slim and attractive design is ideal for both indoor & outdoor installations where aesthetics are very important.



Communication: FR1500-ID connects only via RS485 to InBio & InBioPro panels or standalone reader controllers. FR1500-ID does not support Wiegand.



Easy Operation: Once a user places their finger on the FR1500-ID their fingerprint is subsequently matched by the InBio (or InBioPro) panel. FR1500-ID also provides Visual indication for acceptance/rejection of the fingeprint (and/or prox card) of the users.



Standard Reader: SilkID fingerprint sensor,  Built-in ZKAccess prox card reader Options for HID and Mifare card readers

Specification
CommunicationRS485 only to InBio & InBioPro panels
Power12V DC, 1A
Operating Temperature14° to 113° F (-10° to 45° C)
Operating Humidity20% to 80%
Water RatingIP65
Optional Card ReaderMifare Card, HID 125 kHz card, HID iClass card
DimensionsLength: 4.8 inches (121.3 mm) Width: 3 inches (77.3 mm) Depth: .3 inches (7.1 mm) exposed 1.5 inches (38 mm) behind wall
Name
Description
Size
Downloads
File
Datasheet
0.6mb
