ZKteco USA - FR1500-Milfare - Flush-mounted Slave Fingerprint &Mifare Reader with built in prox reader
Part number:
FR1500-Milfare
Price:

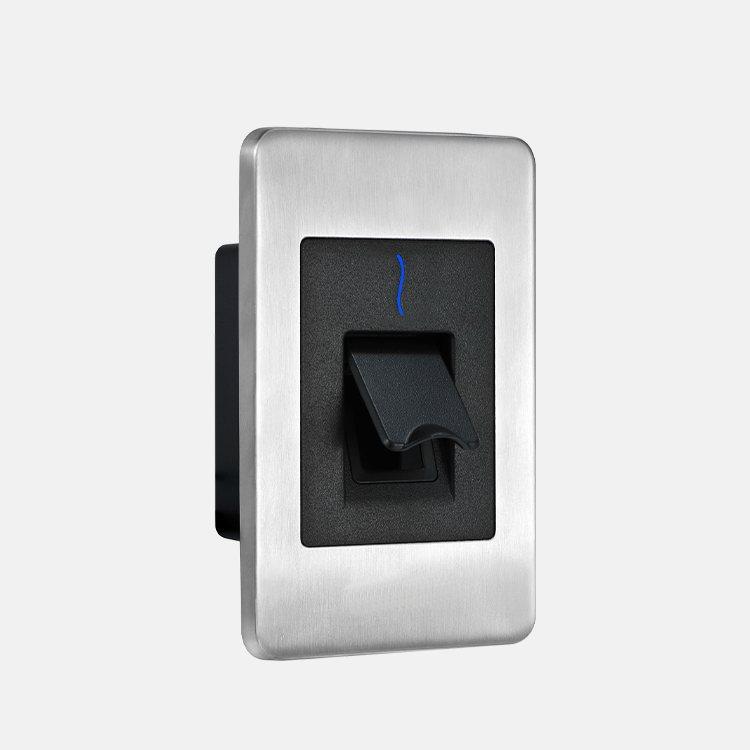

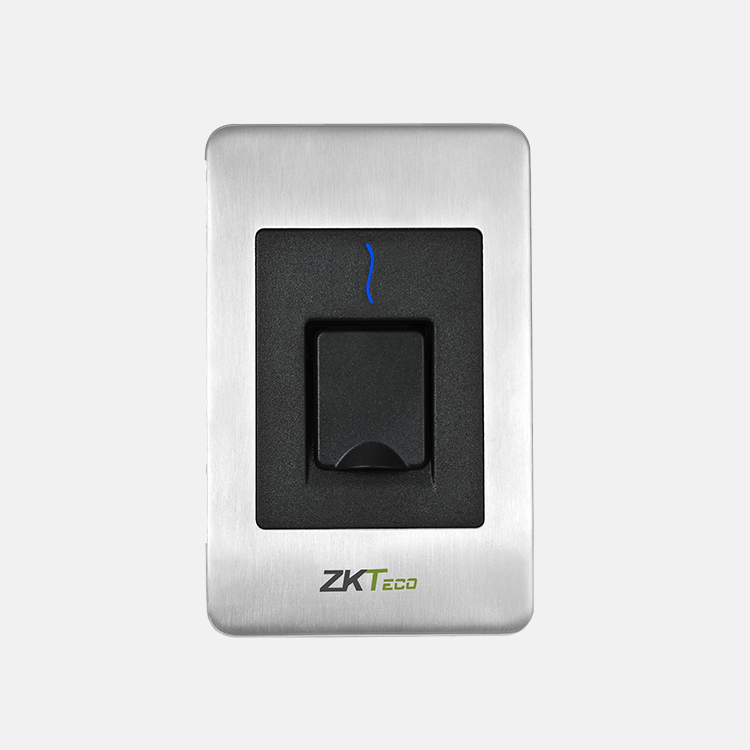

Flush-mounted Slave Fingerprint &Mifare Reader with built in prox reader



Features:



Sleek Stylish Form Factor: Flush-mounted single-gang stainless steel enclosure with slim and attractive design is ideal for both indoor & outdoor installations where aesthetics are very important.

Communication: FR1500-ID connects only via RS485 to InBio & InBioPro panels or standalone reader controllers. FR1500-ID does not support Wiegand.

Easy Operation: Once a user places their finger on the FR1500-ID their fingerprint is subsequently matched by the InBio (or InBioPro) panel. FR1500-ID also provides Visual indication for acceptance/rejection of the fingeprint (and/or prox card) of the users.

Standard Reader: SilkID fingerprint sensor, Built-in ZKAccess prox card reader, Options for HID and Mifare card readers

AdditionalInfo
Working Temperature -10 °C ~ 45 °C
Working Humidity 20 ~ 95%
Dimensions(LxWxH) 121.3 × 77.3 × 38 mm
Algorithm ZKFinger v10.0
PowerSupply
Operating Voltage 12V DC
Stand-by Mode Power Consumption 12V*60mA=0.72W
Peak Current of Fingerprint scanning 140mA
Hardware 1.0 GHz CPU, ZKSilkID Sensor, Buzzer Prompt,Three-color Indicator Light
Compatibility inBio/inBioPro Controllers, Standalone Fingerprint Devices
Standard Features 125KHz RFID Card
Optional Features 125KHz HID Prox Card, 13.56MHz MifareCard(S50 / S70), 13.56MHz HID Iclass Card
Communication RS485
Name
Description
Size
Downloads
File
Datasheet
0.6mb
