ZKTeco USA - inPulse-HID - Multi Biometric Finger Vein and Finger Print Terminal Card
• Modern Design and Interactive UI
• Dual Finger Vein and Fingerprint
• Authentication
• Finger Vein, Fingerprint
• Card, Password
• Simple Management and Scalability
• TFT-LCD Color Touch Screen
| Capacity | |
|---|---|
| Finger Veins | 1,500 |
| Fingerprints | 1,500 |
| Cards | 2,000 |
| Transactions | 100,000 |
| Communication | |
| Network | TCP/IP |
| USB | USB Host |
| Wiegand | Input / Output |
| Security | Relay Box |
| Access Control Interface | |
| Outputs | Lock Relay Output, Alarm Output, Doorbell Output |
| Inputs | Auxiliary Input, Exit Button, Door Sensor |
| Hardware | |
| CPU | 1.2GHz High Speed CPU |
| Memory | 128MB RAM / 256MB Flash |
| Sensor | ZK Fingerprint Sensor |
| Display | 2.8 Inches TFT-LCD Touch Screen |
| Card Reader | 125KHz EM Reader / Mifare (Optional) |
| Audio/Visual | Hi-Fi Voice & Indicator |
| Security | Tamper Switch Alarm |
| Standard Functions | |
| Access Control | Access Levels / Groups / Holidays |
| Time Settings | DST / Bell Schedule |
| Security Modes | Duress Mode (Password), Anti-Passback |
| Record Management | Record Query |
| Customization | Custom Wallpaper & Screen Saver |
| Special Functions | |
| Verification Modes | Multiple Biometric Verification Modes |
| Card Security | ZK Encrypted Card (Optional) |
| Compatibility | |
| Readers | Wiegand Slave Reader |
| Software | ZKBioSecurity Software |
| Additional Info | |
| Working Temperature | -10 °C ~ 50 °C |
| Dimensions | 201.7 × 85 × 102.7 mm |
| Algorithms | ZKVein v3.0 & ZKFinger v10.0 |
| Accuracy (FAR/FRR) | Finger Vein & Fingerprint: FAR≤0.0001%, FRR≤0.01% |
| Package Includes | 12V 3A Power Supply |
| Power | |
| Operating Voltage | 12V DC |
| Current Draw | < 500mA |

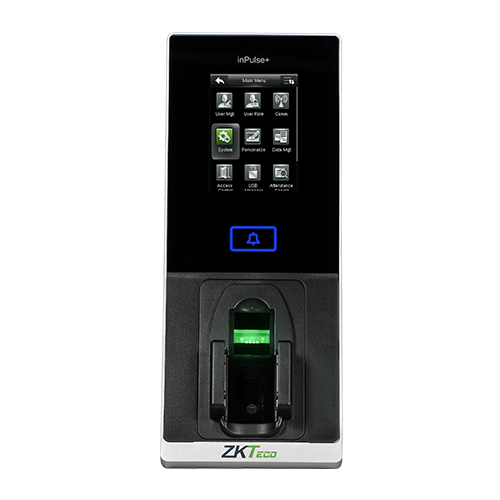

This mid-range, standalone biometric access control terminal features a 1.2 GHz CPU, 128 MB of RAM, and 256 MB of flash memory. It is equipped with a ZK fingerprint sensor and finger vein recognition technology, utilising ZKFinger v10.0 and ZKVein v3.0 algorithms. The unit includes a 2.8-inch TFT-LCD touchscreen and a 125 kHz EM card reader with optional Mifare support.

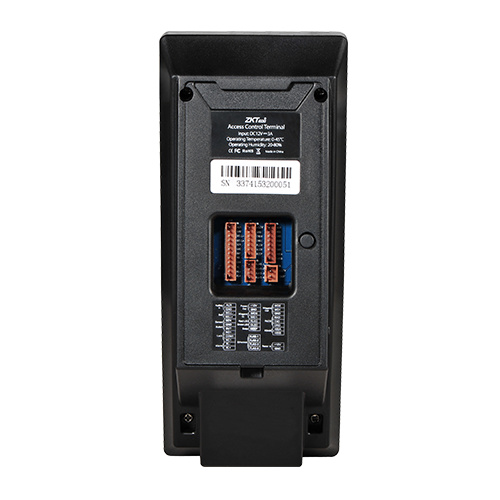

The terminal can store up to 1,500 fingerprint or finger vein templates and 2,000 card credentials, and can log up to 100,000 transactions. It communicates via TCP/IP, Wiegand and USB Host and provides the following standard access control interfaces: Lock Relay Output, Alarm Output/Auxiliary Input, Exit Button/Door Sensor connections and a Doorbell Output. Core functions such as access levels, anti-passback and duress mode are supported, and the terminal is compatible with ZKBioSecurity software. Operating on 12V DC with a current draw of <500 mA, it functions within a temperature range of -10°C to 50°C. The housing includes a tamper switch for security purposes.
