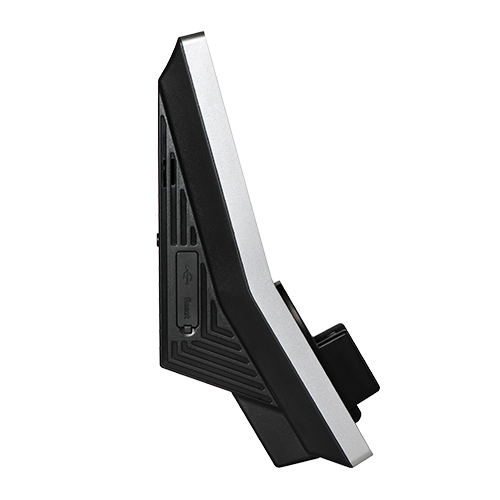

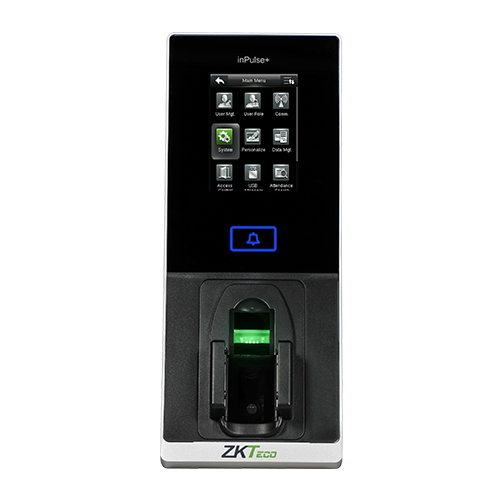

ZKTeco USA - inPulse+HID - Multi-Biometric Finger Vein Standalone Access Control Terminal
Part number:
inPulse+ HID
Price:

inPulse+ HID is a multi-biometric reader capable of capturing and processing BOTH finger vein pattern & fingerprint biometric data at the same time.



Features:

Biometric Performance: Combines revolutionary SilkID fingerprint sensor and powerful finger vein pattern sensor to achieve the highest degree of accuracy. Identifies users in less than 2 seconds.



Communication: Weigand output for when connecting to an access control panel and Ethernet port for fast and reliable network communication.



Capacity: Stores up to 1,000 finger vein and 1,000 fingerprint templates. Data can be backed up to a USB flash drive and transferred to another inPulse+ in the absence of network connectivity.



Options: Internal Proximity Card or Mifare Card reader allows dual factor authentication for access control.



Easy Operation and Management: Works without a computer. Complete setup and programming can be done via the “inPulse+ keypad and embeded firmware. Audio-Visual indication for acceptance and rejection of valid/invalid fingerprints, cards and passwords



Access control: Relay Outputs for electric lock and alarm. Inputs for door status sensor and request to exit hardware. Supports multiple time zones and personnel groups for programming valid entry zones.



For Software Developers: Free SDK and development tools are available for developers/partners who wish to integrate inPulse+ with any application which requires verifying people. Custom development is also available for OEM partners upon request.

Specification
CapacityFinger Veins 1,500
Fingerprints 1,500
Cards 2,000
Transactions 100,000
CommunicationTCP/IP
USB Host
Wiegand Input / Output
Security Relay Box
Access Control InterfaceLock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Doorbell Output
Hardware1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
ZK Fingerprint Sensor
2.8 Inches TFT-LCD Touch Screen
125KHz EM Reader / Mifare (Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Standard FunctionsAccess Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode (Password)
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver
Special FunctionsMultiple Biometric Verification Modes
ZK Encrypted Card (Optional)
CompatibilityWiegand Slave Reader
ZKBioSecurity Software
Additional InfoWorking Temperature: -10 °C ~ 50 °C
Dimensions: 201.7 × 85 × 102.7 mm.
ZKVein v3.0 & ZKFinger v10.0 Algorithms
Finger Vein & Fingerprint: FAR≤0.0001%
FRR≤0.01%
Package Includes 12V 3A Power Supply
PowerOperating Voltage 12V DC
Current Draw < 500mA
