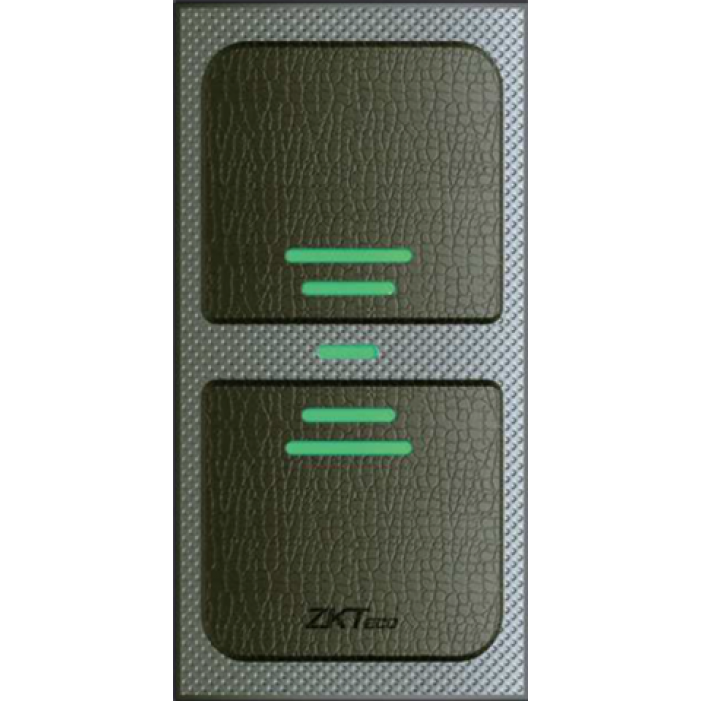

ZKteco USA - KR500M - Wiegand Card Readers
Part number:
KR500M
Price:

Read 13.56MHz Mifare ID card number Wiegand output 34bit, Mullion mount

Specifications

Read Range

 KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM

Reading Time

≤200ms

Input Port

External LED Control, External Buzzer Control

Output Port

 KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default)

Power/Current

 DC 6-14V / Max.70mA

LED

Red and Green LEDs

Operating Temperature

 -10°C to +65°C

Material

 ABS+PC with texture

Operating Humidity

 10% to 90% relative humidity • non-condensing

Beeper

 Yes

Index of Protection

• KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65

Standard Features

125KHz RFID Card

Optional Features

125KHz HID Prox Card, 13.56MHz IC Card(S50 / S70), 13.56MHz HID Iclass Card

Communication

RS485
