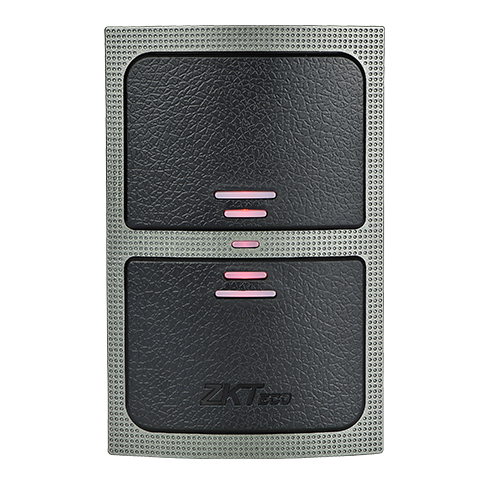

ZKteco USA - KR503M - Wiegand Card Readers
Part number:
KR503M
Price:
Read 13.56MHz Mifare ID card number Wiegand output 34bit, Single gang.
Features:
- Mifare Card Reader
- Read Range : Up to 5CM
- Communication : RS485
- Reading Time (Card) : ≤300ms
- Power / Current : DC 6-14V / Max.70mA
| Specifications | |
| Read Range | KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM |
| Reading Time | ≤200ms |
| Input Port | External LED Control, External Buzzer Control |
| Output Port | KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default) |
| Power/Current | DC 6-14V / Max.70mA |
| LED | Red and Green LEDs |
| Operating Temperature | -10°C to +65°C |
| Material | ABS+PC with texture |
| Operating Humidity | 10% to 90% relative humidity • non-condensing |
| Beeper | Yes |
| Index of Protection | • KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65 |
| Standard Features | 125KHz RFID Card |
| Optional Features | 125KHz HID Prox Card, 13.56MHz IC Card(S50 / S70), 13.56MHz HID Iclass Card |
| Communication | RS485 |
