ZKTeco - LP-Brother - Brother QL-820NWB Professional, Ultra Flexible Monochrome Label Printer
Product Overview

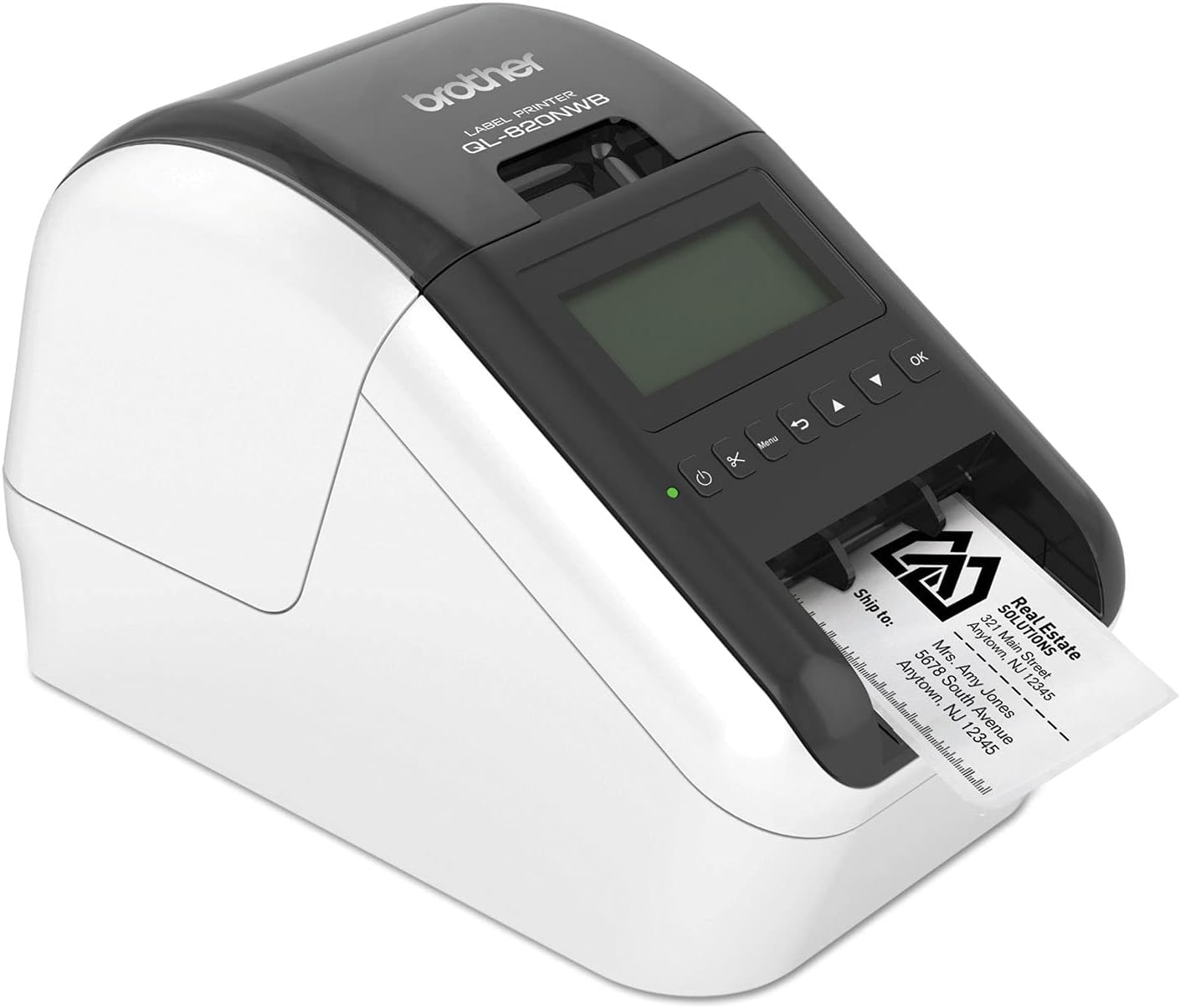

The Brother QL-820NWB is a professional network-ready direct thermal label printer designed for office, logistics, organization, and workspace labeling applications. It supports high-speed monochrome printing and two-color black/red output when used with compatible Brother DK media.
Key Configuration
Direct thermal label printer with up to 300 x 600 dpi high-resolution mode; supports media widths up to 62 mm / 2.4 in.; connectivity includes Bluetooth, Wi-Fi, Ethernet/LAN, USB 2.0, and Wireless Direct.
Key Features
• Prints up to 110 standard address labels per minute

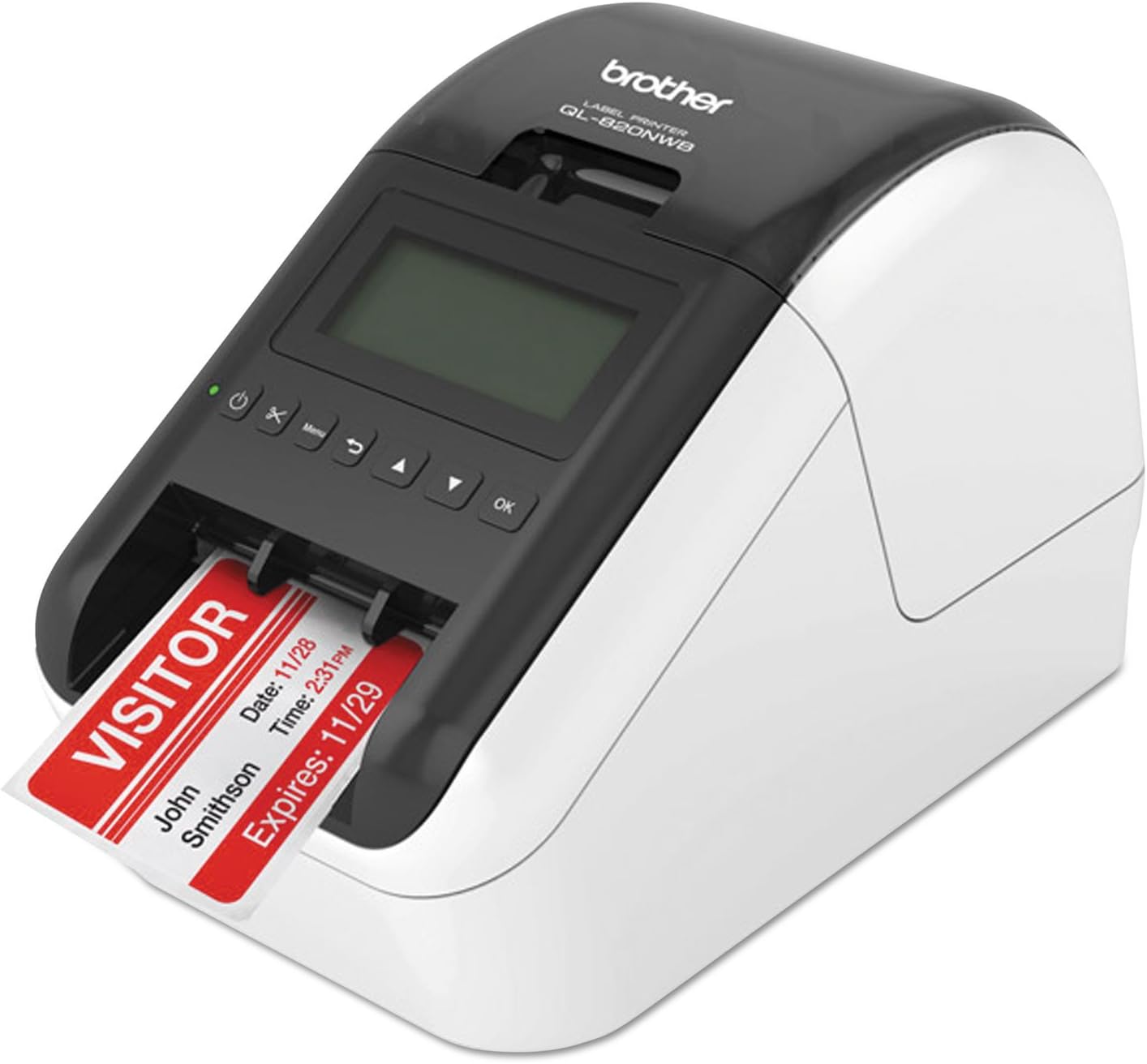

• Supports black/red two-color printing with compatible Brother DK-2251 or DK-22251 rolls
• Built-in backlit monochrome LCD enables standalone template printing
• Integrated automatic cutter provides clean cuts for continuous label rolls
• Compatible with Brother P-touch Editor and Brother iPrint&Label mobile app
Technical Context
The printer uses direct thermal technology, so it does not require ink, toner, or ribbons. It supports DK continuous length rolls and DK pre-sized die-cut labels, with automatic media detection through the cartridge system.
Installation Notes
The printer package typically includes one starter paper roll, which may vary by region. Common starter media includes DK-22251 continuous length black/red paper or DK-11201 standard address labels.
| Technical Specifications | |
| Printer Model | Brother QL-820NWB |
| Product Type | Professional network-ready thermal label printer |
| Printing Technology | Direct Thermal (No ink ribbons or toner cartridges required) |
| Max Print Speed | Up to 110 standard address labels per minute |
| Print Resolution | 300 x 300 dpi standard Up to 300 x 600 dpi high-resolution mode |
| Max Label Width | Supports total media widths up to 62 mm (2.4 inches) |
| Color Support | Dual-color (Black and Red) using Brother DK-2251 / DK-22251 rolls Regular DK rolls print standard monochrome black |
| Interface / Connectivity | Bluetooth, Wi-Fi (802.11b/g/n), Ethernet / LAN, USB 2.0, and Wireless Direct |
| Cutter System | Integrated automatic heavy-duty cutter (supports full cuts across continuous rolls) |
| Hardware Display | Built-in backlit monochrome graphic LCD panel for standalone template printing |
| Software Support | Brother P-touch Editor (Windows/Mac) Brother iPrint&Label mobile application (iOS/Android) |
| Included Starter Roll | |
| Included Roll | Purchase price includes one paper roll with printer |
| Possible Starter Roll Types | DK-22251 Continuous Length: 62mm (2.4") wide starter roll for black/red text generation DK-11201 Standard Address: die-cut starter label roll for basic mailing applications |
