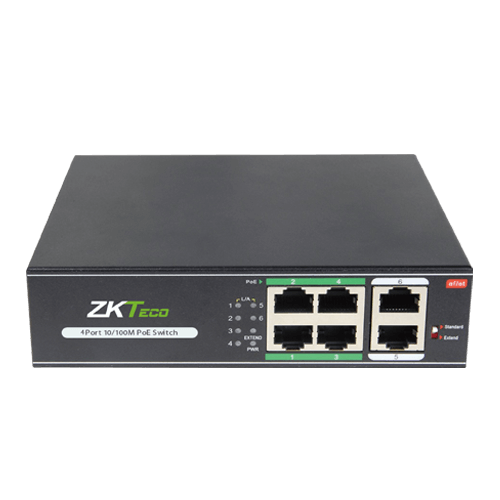

ZKTeco USA - POE 4-Port switch - 4 Ports 10/100Mbps PoE Switch
Part number:
POE 4-Port switch
Price:
POE 4-Port switch provides a simple network for IP cameras installation, which could run data and power transmission through CAT 5E/6 cables at the same time. It also supports long transmission distance of 250 meters to save cost for projects to replace extenders, fibers, and coaxial cables, etc.
Features:
- Commercial standard switch with 2 layers of network artribute
- 250 meters of PoE transmission distance of power and data
- Max. PoE power output 30W for each port
- Conforms to IEEE 802.3i, IEEE 802.3u and IEEE 802.3X
- Conforms to IEEE 802.3af and IEEE 803.3at
- MDI/MDIX self-adaptation
- Lightning protection
| Specification | |
| Model Number | PE04-60 |
| Ethernet Port | 4 PoE Ports (10/100 Mbps) 2 Uplink Ports (10/100 Mbps), All ports support MDI/MDIX self-adaptation |
| POE Standard | IEEE 802.3af, IEEE802.3at |
| PoE Consumption | Max 30W per Port, total PoE budget 60W |
| Network Protocol | IEEE 802.3i 10BASET, IEEE 802.3u 100BASETX, IEEE 802.3x Flow Control |
| Switching Bandwidth | 1.6Gbps |
| Packet Forwarding Rate | 0.982Mpps |
| Buffer Memory | 768KB |
| Mac Table Size | 1KB |
| MTBF | 100,000 hours |
| Power Input | AC220V, 50/60Hz |
| Lightning Protection | 2KV |
| Working Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Working Humidity | 10% ~ 90%, non-condensing |
| Dimensions (L*W*H) | 142 * 113 * 40 (mm) |
| Weight | 1kg |
| Certification | CE/LVD EN60950, FCC Part 15 Class B, VCCI Class B, EN 55022 (CISPR 22), Class B |
