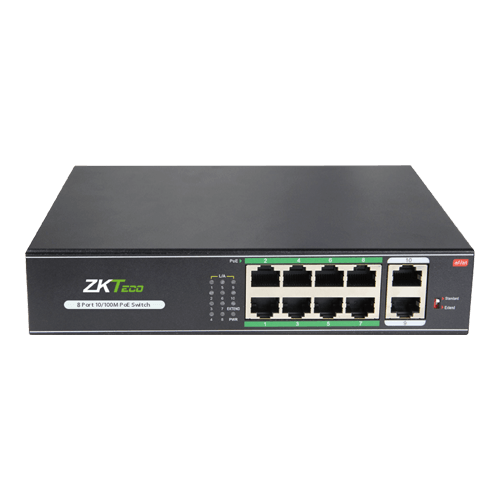

ZKTeco USA - POE 8-Port Switch - 8 Ports 10/100Mbps PoE Switch
Part number:
POE 8-Port Switch
Price:
POE 8-Port Switch provides a simple network for IP cameras installation, which could run data and power transmission through CAT 5E/6 cables at the same time. It also supports long transmission distance of 250 meters to save cost for projects to replace extenders, bers, and coaxial cables, etc.
Features:
- Commercial standard switch with 2 layers of network attribute
- 250 meters of PoE transmission distance of power and data
- Max. PoE power output 30W for each port
- Conforms to IEEE 802.3i, IEEE 802.3u and IEEE 802.3X
- Conforms to IEEE 802.3af and IEEE 803.3at
- MDI/MDIX self-adaptation
- Lightning protection
| Specification | |
| Model Number | PE08-120 |
| Ethernet Port | 8 PoE Ports (10/100 Mbps) 2 Uplink Ports (10/100 Mbps) All ports support MDI/MDIX self-adaptation |
| POE Standard | IEEE 802.3af, IEEE802.3at |
| PoE Consumption | Max 30W per Port, total PoE budget 120W |
| Network Protocol | IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control |
| Switching Bandwidth | 2Gbps |
| Packet Forwarding Rate | 1.488Mpps |
| Buffer Memory | 768KB |
| Mac Table Size | 2KB |
| MTBF | 100,000 hours |
| Power Input | AC220V, 50/60Hz |
| Lightning Protection | 2KV |
| Working Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Working Humidity | 10% ~ 90%, non-condensing |
| Dimensions | 195 * 130 * 40mm |
| Weight | 1.3kg |
| Certification | CE/LVD EN60950 FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
