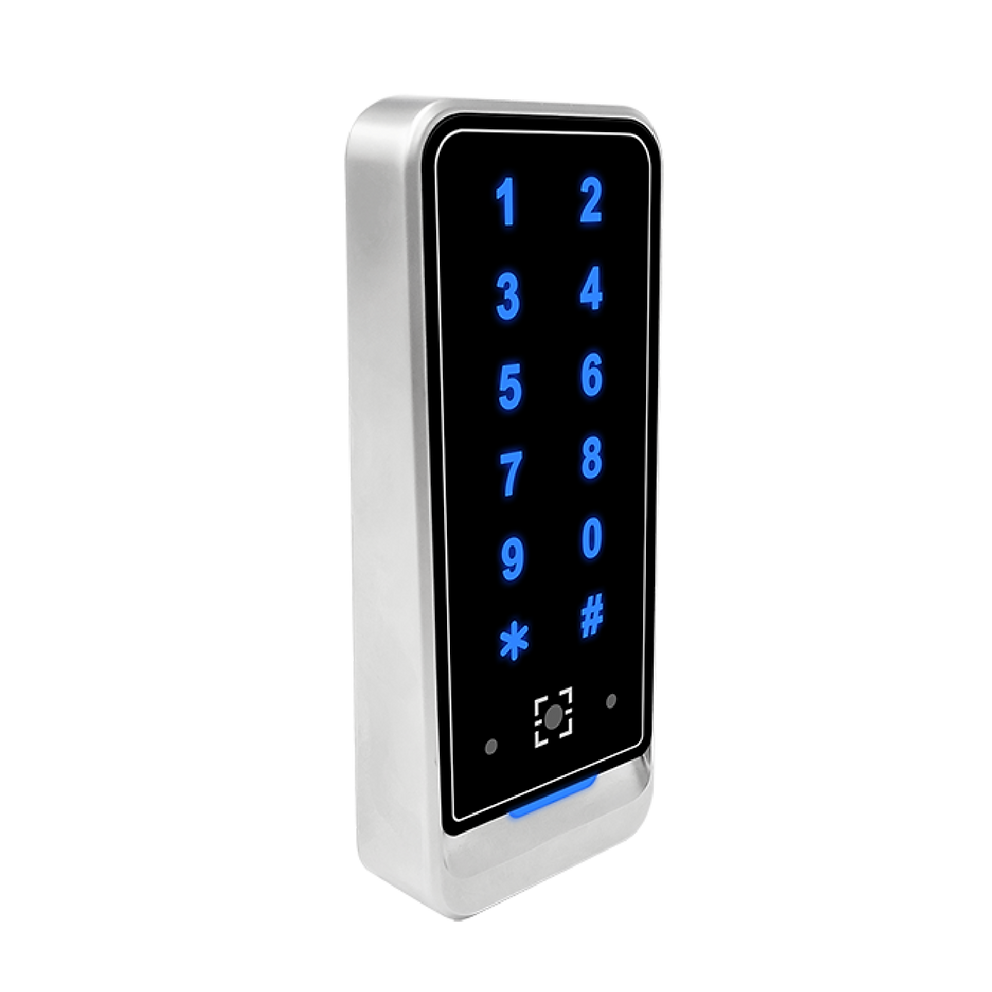

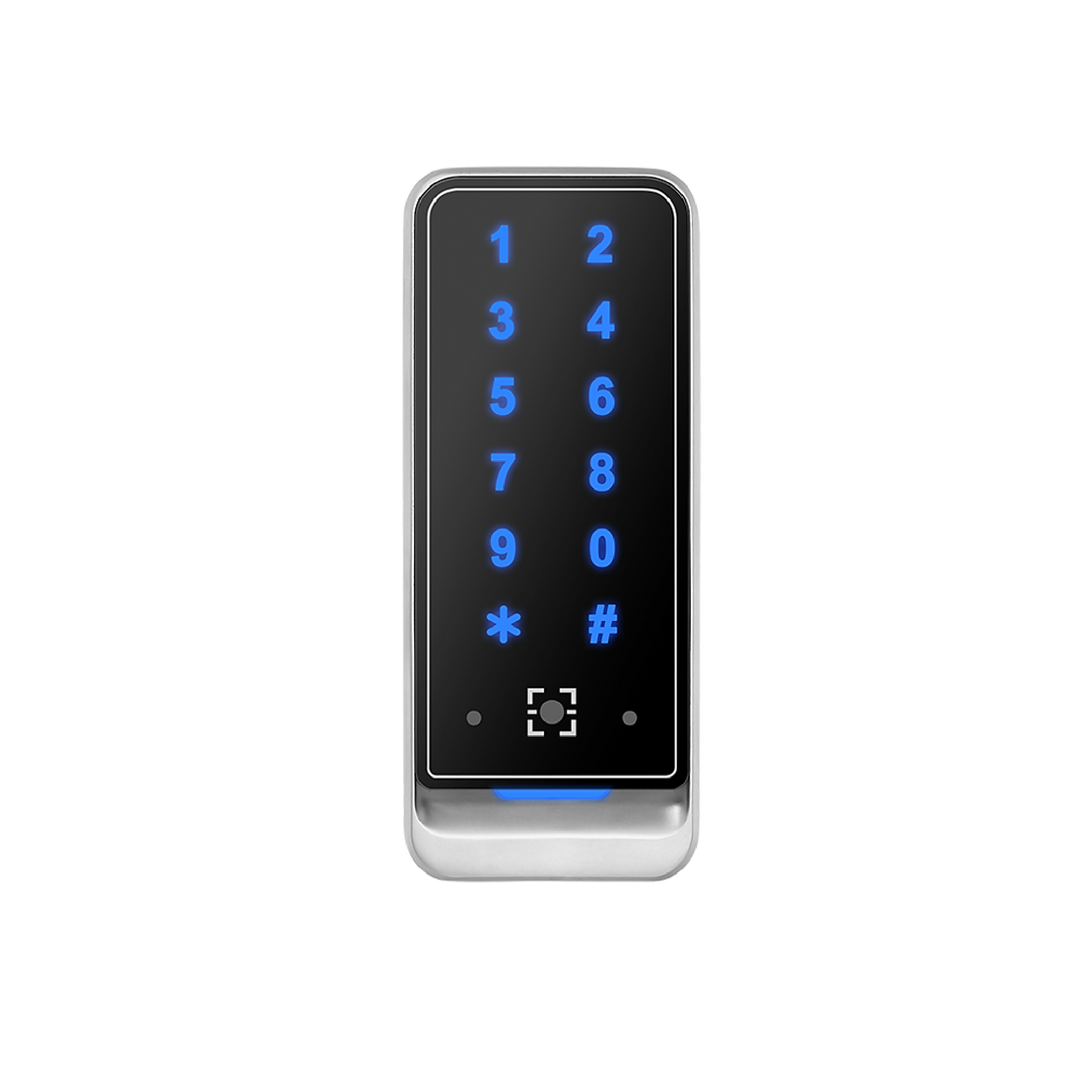

QR502-V is an outdoor-rated vandal-resistant QR code reade.r It can additionally read both ZKTeco 125 kHz prox cards and most 13.56 MHz smart cards. QR502-Vi s single-gang size and has a vertical footprint. It connects with ZKTeco Atlas 2.6 (or higher), ZKBioSecurity, or any 3rd party access control system capable of generating QR codes.



Features

  • QR code & RFID keypad reader
  • IP65-rated and vandal resistant (metal enclosure)
  • Dynamic QR code with ZKey Mobile Credential APP
  • Supports QR code: QR, Data matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/ Code 93 etc.
  • Communication : Wiegand 26/34/66 (default) & RS485.
  • Supports 125kHz ID cards or 13.56MHz IC cards, which includes Mifare, Desfire EV1

Model

QR502-V

QR Sensor

QR, Data matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/ Code 93 etc.

RFID

125kHz ID cards / 13.56mHz IC Cards: Mifare & Desfire EV1

Reading Distance

Up to 2 inches

Communication

Wiegand & RS485

Protection

IP65

Power

12V DC (± 5%)

Operating Temperature

-4ºF to 140ºF

Storage Temperature

-4F to 176ºF

Operating Humidity

20% to 80%

Dimensions

138*58*16 (mm) / 5.43 x 2.28 x 0.63 (in)

Mount

Single-Gang
