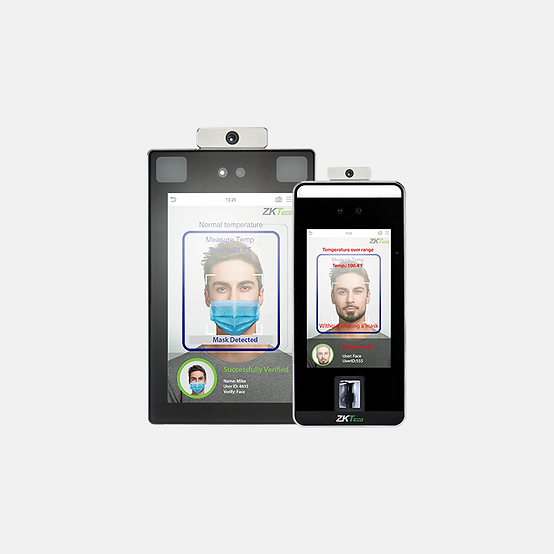

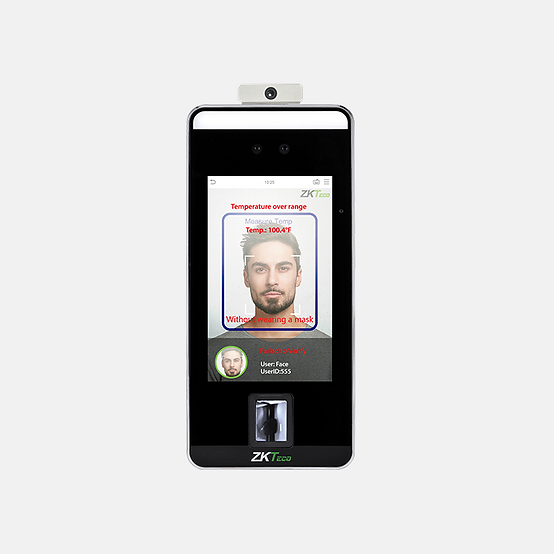

ZKteco USA - SF1005-QR-HID - Body-Temperature and Mask Detection with Face and Palm Recognition
Part number:
SF1005-QR-HID
Price:

The SpeedFace + embedded face recognition sensor provides 100% touchless user authentication for various applications including Access Control, Time & Attendance, Visitor Management, Event Management and more. Model can store and match up to 50,000 faces in less than 0.3 seconds while operating in both total darkness and bright sunlight (up to 50,000 Lux).



Body Temperature & Mask Detection

In addition to providing face, palm, and fingerprint user authentication, SpeedFace+ can detect body-temperature and the presence of a protective mask being worn by both registered and unregistered users. Users can be denied door access if a user defined unacceptable body temperature or if no mask is detected.


The ability to quickly & accurately detect body-temperature and the presence of a mask is becoming increasingly important for airports, schools, commercial office buildings, and other public meeting areas.


People identified having unacceptable body-temperature and their supervisors can then take appropriate action. SpeedFace+ combines a powerful embedded thermal camera and ZKTeco's latest face and fingerprint recognition algorithms that are supported by an optimized dual-core processor. SpeedFace+ is unmatched in accuracy, matching-speed, and versatility. It provides advanced security and convenience, all on a single affordable device.



Features:

  • User authentication read range up to 8 feet
  • Body-temperature read range accurate up to +/- 0.6°F
  • stores & matches up to 50,000 face templates
  • Face verification with or without wearing a mask
  • Intelligent energy-saving design
  • Dual-lens IR & VL camera recognizes faces in both total darkness and bright sunlight
Specifications
CapacityFaces 50,000 (1:N) Users / Cards 50,000 Transactions 1,000,000 User Photos 30,000 Event Photos 10,000
CompatibilitySecurity Relay Box Wiegand / RS485 / RS232 Secondary Reader with Fingerprint / RFID / Barcode / QR-code Bio Security Software EntraPASS Access Control Software
Hardware900MHz Dual Core Customized AI CPU 512MB RAM / 8G Flash 8″ Bright light (400lux) IPS Touch LCD 125KHz EM Reader / 13.56MHz MF(Optional) 2MP WDR Low Light Camera Adjustable Light brightness LED Hi-Fi Voice Receiver sensitivity Microphone Distance Detection Sensor Reset Button and Tamper Switch
Access Control Interface:Lock Relay Output Alarm Output / Auxiliary Input Exit Button / Door Sensor Special Functions: IP68 & IK04 0.3s Hight Speed Face Ver Live Face detection Communication Https Encrypted Optional Event Snapshot
Standard Functions:Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback, Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm
CommunicationTCP/IP Wiegand Input / Output Wi-Fi (Optional) RS485 / RS232
Additional InfoFace Algorithm: LiveFace5.8 Working Temperature: -30°C ~ 60°C, (-22°F~ 140°F) Working Humidity: ≤93% Storage Temperature: -40°C ~ +65°C Storage Humidity: ≤93% Net Weight: 853g Dimensions (H*L*D): 227*143*26mm
PowerOperating Voltage 12V DC Current Draw < 2,000mA
Name
Description
Size
Downloads
File
Datasheet
0.6mb
